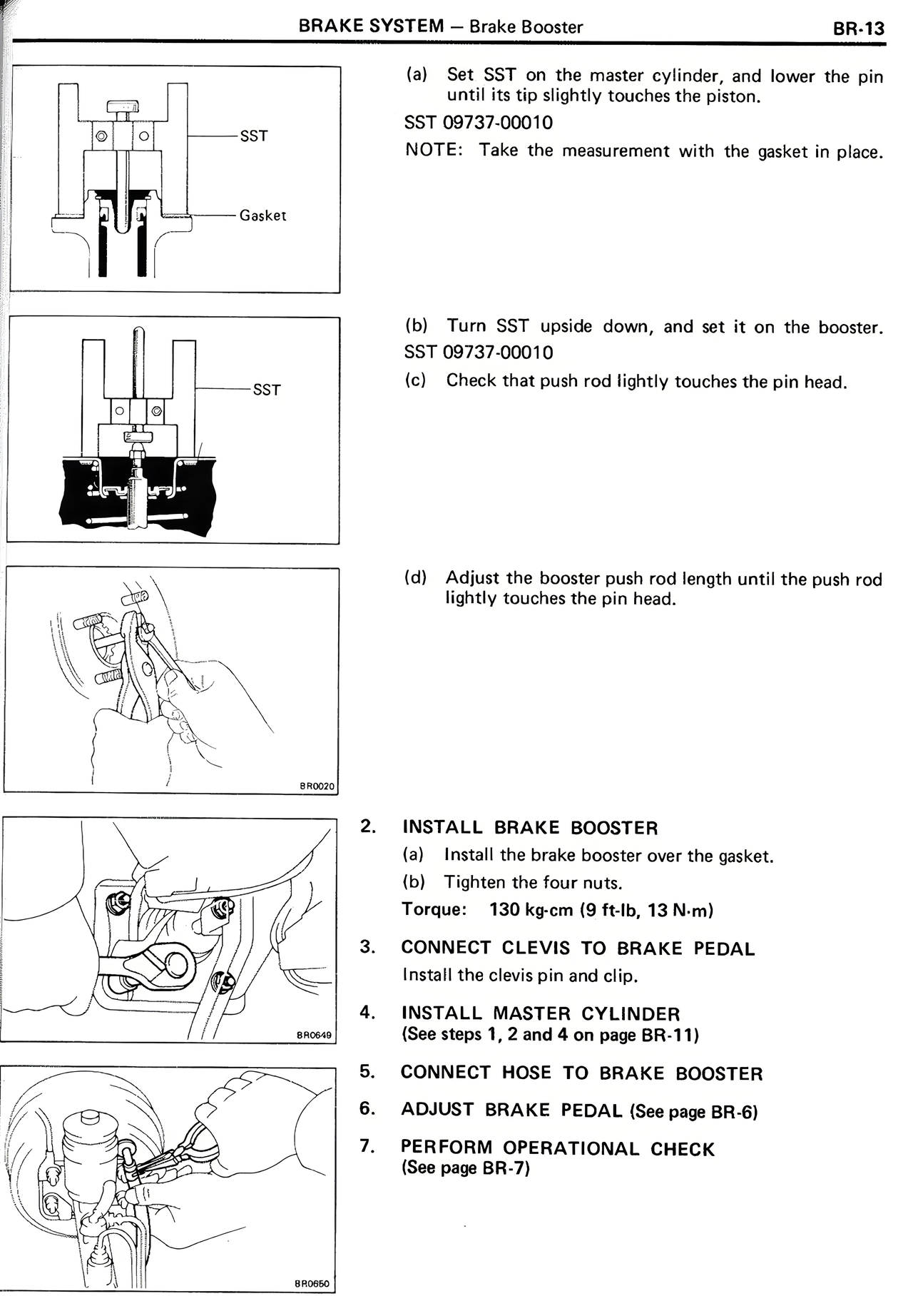

BRAKE SYSTEM — Brake Booster
BR-13
(a) Set SST on the master cylinder, and lower the pin until its tip slightly touches the piston.
SST 09737-00010
NOTE: Take the measurement with the gasket in place.
(b) Turn SST upside down, and set it on the booster.
SST 09737-00010
(c) Check that push rod lightly touches the pin head.
(d) Adjust the booster push rod length until the push rod lightly touches the pin head.
2. INSTALL BRAKE BOOSTER
(a) Install the brake booster over the gasket.
(b) Tighten the four nuts.
Torque: 130 kg-cm (9 ft-lb, 13 N-m)
3. CONNECT CLEVIS TO BRAKE PEDAL
Install the clevis pin and clip.
4. INSTALL MASTER CYLINDER
(See steps 1, 2 and 4 on page BR-11)
5. CONNECT HOSE TO BRAKE BOOSTER
6. ADJUST BRAKE PEDAL (See page BR-6)
7. PERFORM OPERATIONAL CHECK
(See page BR-7)
