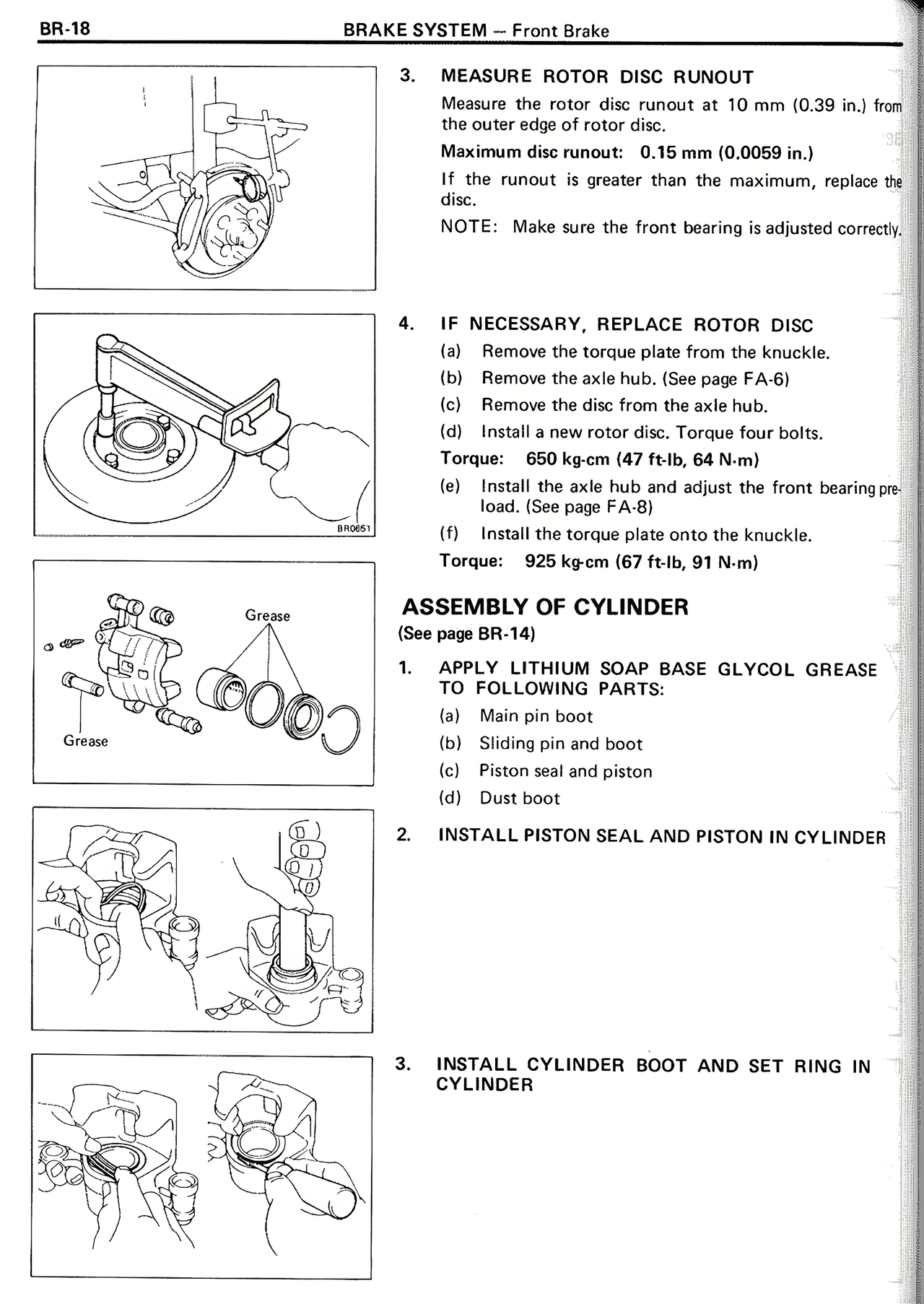

3. MEASURE ROTOR DISC RUNOUT Measure the rotor disc runout at 10 mm (0.39 in.) from the outer edge of rotor disc. Maximum disc runout: 0.15 mm (0.0059 in.) If the runout is greater than the maximum, replace the disc. NOTE: Make sure the front bearing is adjusted correctly. 4. IF NECESSARY, REPLACE ROTOR DISC (a) Remove the torque plate from the knuckle. (b) Remove the axle hub. (See page FA-6) (c) Remove the disc from the axle hub. (d) Install a new rotor disc. Torque four bolts. Torque: 650 kg-cm (47 ft-lb, 64 N-m) (e) Install the axle hub and adjust the front bearing preload. (See page FA-8) (f) Install the torque plate onto the knuckle. Torque: 925 kg-cm (67 ft-lb, 91 N-m) ASSEMBLY OF CYLINDER (See page BR-14) 1. APPLY LITHIUM SOAP BASE GLYCOL GREASE TO FOLLOWING PARTS: (a) Main pin boot (b) Sliding pin and boot (c) Piston seal and piston (d) Dust boot 2. INSTALL PISTON SEAL AND PISTON IN CYLINDER 3. INSTALL CYLINDER BOOT AND SET RING IN CYLINDER
