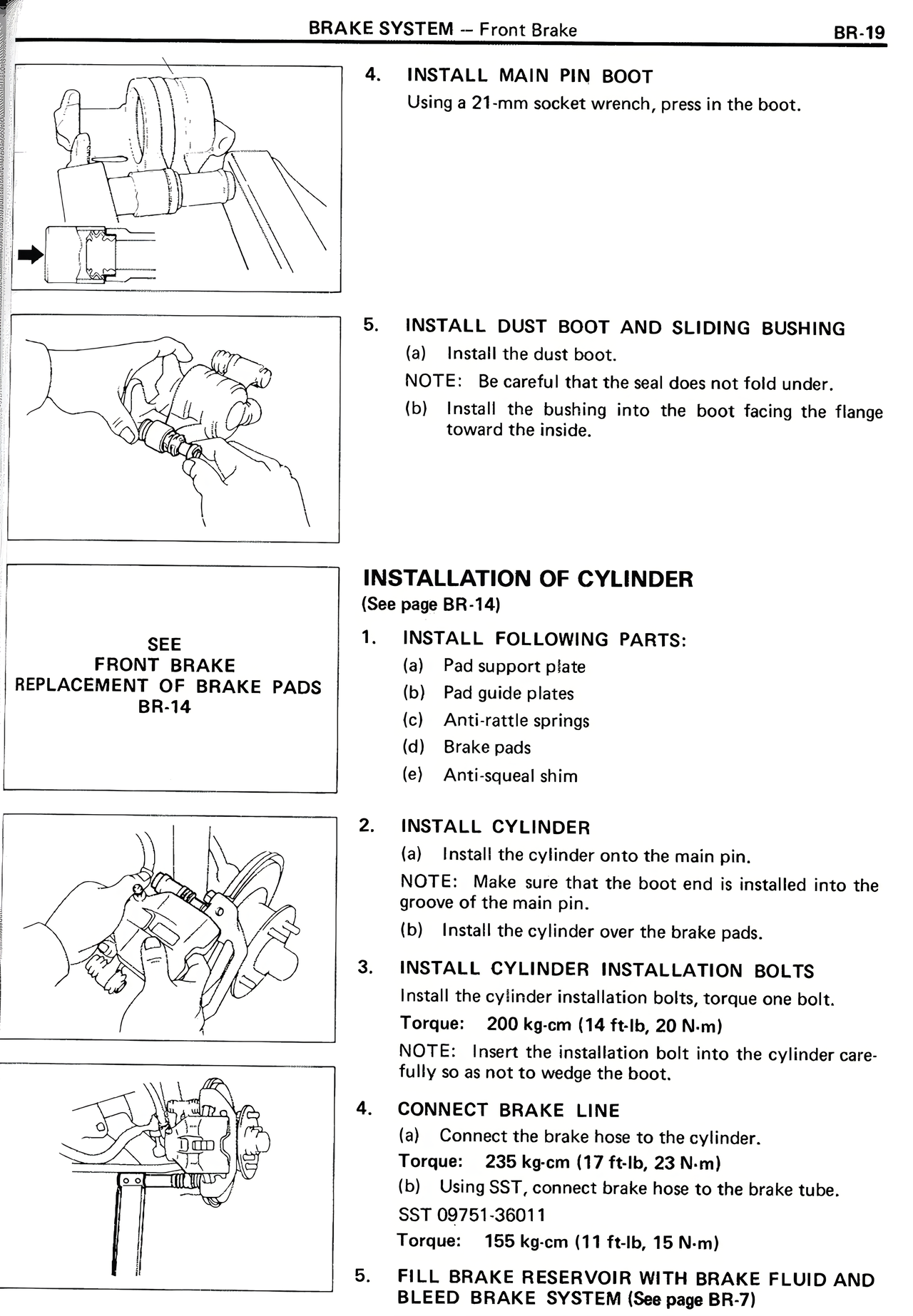

4. INSTALL MAIN PIN BOOT
Using a 21-mm socket wrench, press in the boot.
5. INSTALL DUST BOOT AND SLIDING BUSHING
(a) Install the dust boot.
NOTE: Be careful that the seal does not fold under.
(b) Install the bushing into the boot facing the flange toward the inside.
INSTALLATION OF CYLINDER
(See page BR-14)
1. INSTALL FOLLOWING PARTS:
(a) Pad support plate
(b) Pad guide plates
(c) Anti-rattle springs
(d) Brake pads
(e) Anti-squeal shim
SEE
FRONT BRAKE
REPLACEMENT OF BRAKE PADS
BR-14
2. INSTALL CYLINDER
(a) Install the cylinder onto the main pin.
NOTE: Make sure that the boot end is installed into the groove of the main pin.
(b) Install the cylinder over the brake pads.
3. INSTALL CYLINDER INSTALLATION BOLTS
Install the cylinder installation bolts, torque one bolt.
Torque: 200 kg·cm (14 ft·lb, 20 N·m)
NOTE: Insert the installation bolt into the cylinder carefully so as not to wedge the boot.
4. CONNECT BRAKE LINE
(a) Connect the brake hose to the cylinder.
Torque: 235 kg·cm (17 ft·lb, 23 N·m)
(b) Using SST, connect brake hose to the brake tube.
SST 09751-36011
Torque: 155 kg·cm (11 ft·lb, 15 N·m)
5. FILL BRAKE RESERVOIR WITH BRAKE FLUID AND BLEED BRAKE (See page BR-7)
