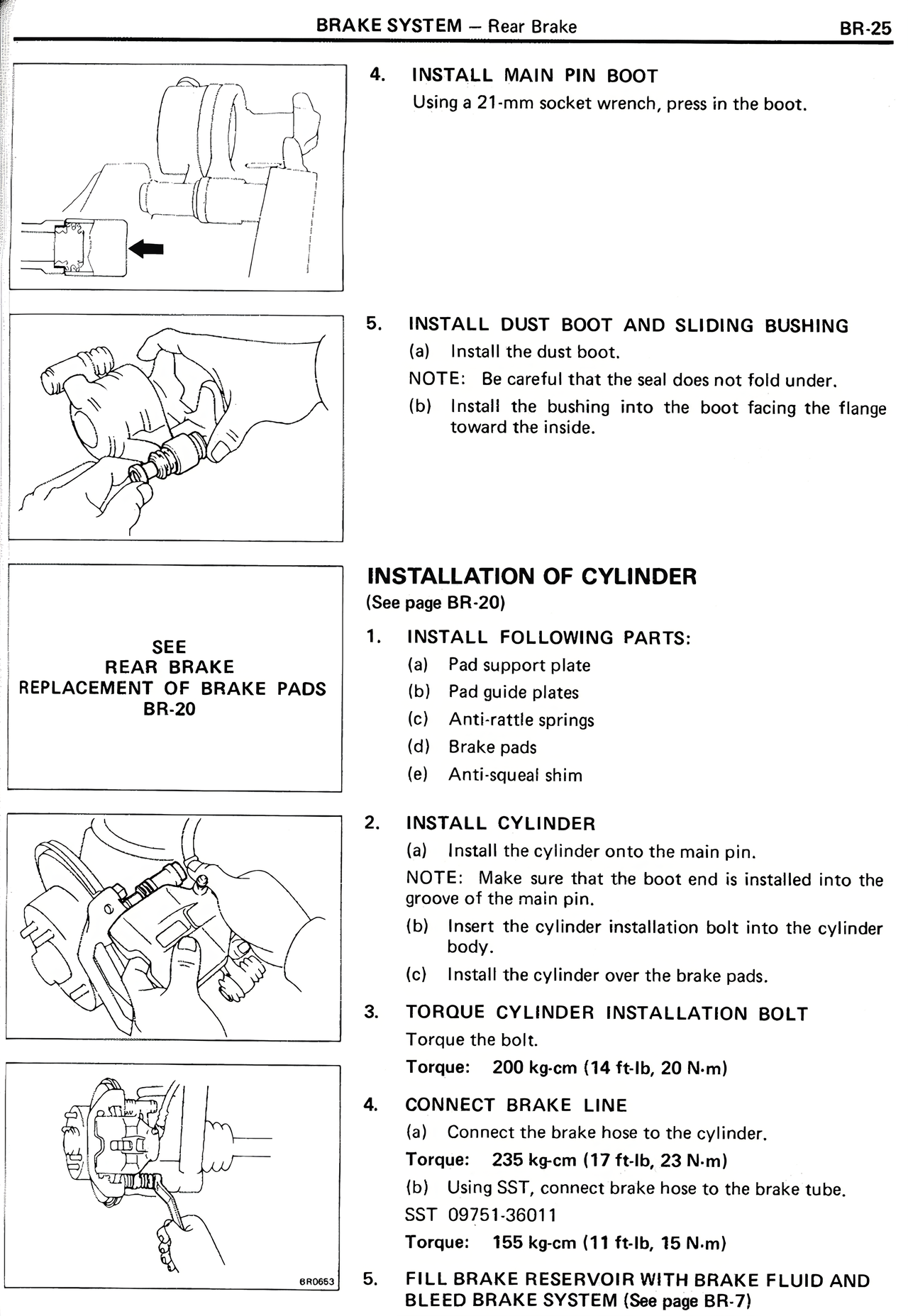

4. INSTALL MAIN PIN BOOT Using a 21-mm socket wrench, press in the boot. 5. INSTALL DUST BOOT AND SLIDING BUSHING (a) Install the dust boot. NOTE: Be careful that the seal does not fold under. (b) Install the bushing into the boot facing the flange toward the inside. INSTALLATION OF CYLINDER (See page BR-20) 1. INSTALL FOLLOWING PARTS: (a) Pad support plate (b) Pad guide plates (c) Anti-rattle springs (d) Brake pads (e) Anti-squeal shim 2. INSTALL CYLINDER (a) Install the cylinder onto the main pin. NOTE: Make sure that the boot end is installed into the groove of the main pin. (b) Insert the cylinder installation bolt into the cylinder body. (c) Install the cylinder over the brake pads. 3. TORQUE CYLINDER INSTALLATION BOLT Torque the bolt. Torque: 200 kg-cm (14 ft-lb, 20 N·m) 4. CONNECT BRAKE LINE (a) Connect the brake hose to the cylinder. Torque: 235 kg-cm (17 ft-lb, 23 N·m) (b) Using SST, connect brake hose to the brake tube. SST 09751-36011 Torque: 155 kg-cm (11 ft-lb, 15 N·m) 5. FILL BRAKE RESERVOIR WITH BRAKE FLUID AND BLEED BRAKE SYSTEM (See page BR-7) SEE REAR BRAKE REPLACEMENT OF BRAKE PADS BR-20 BR90623
