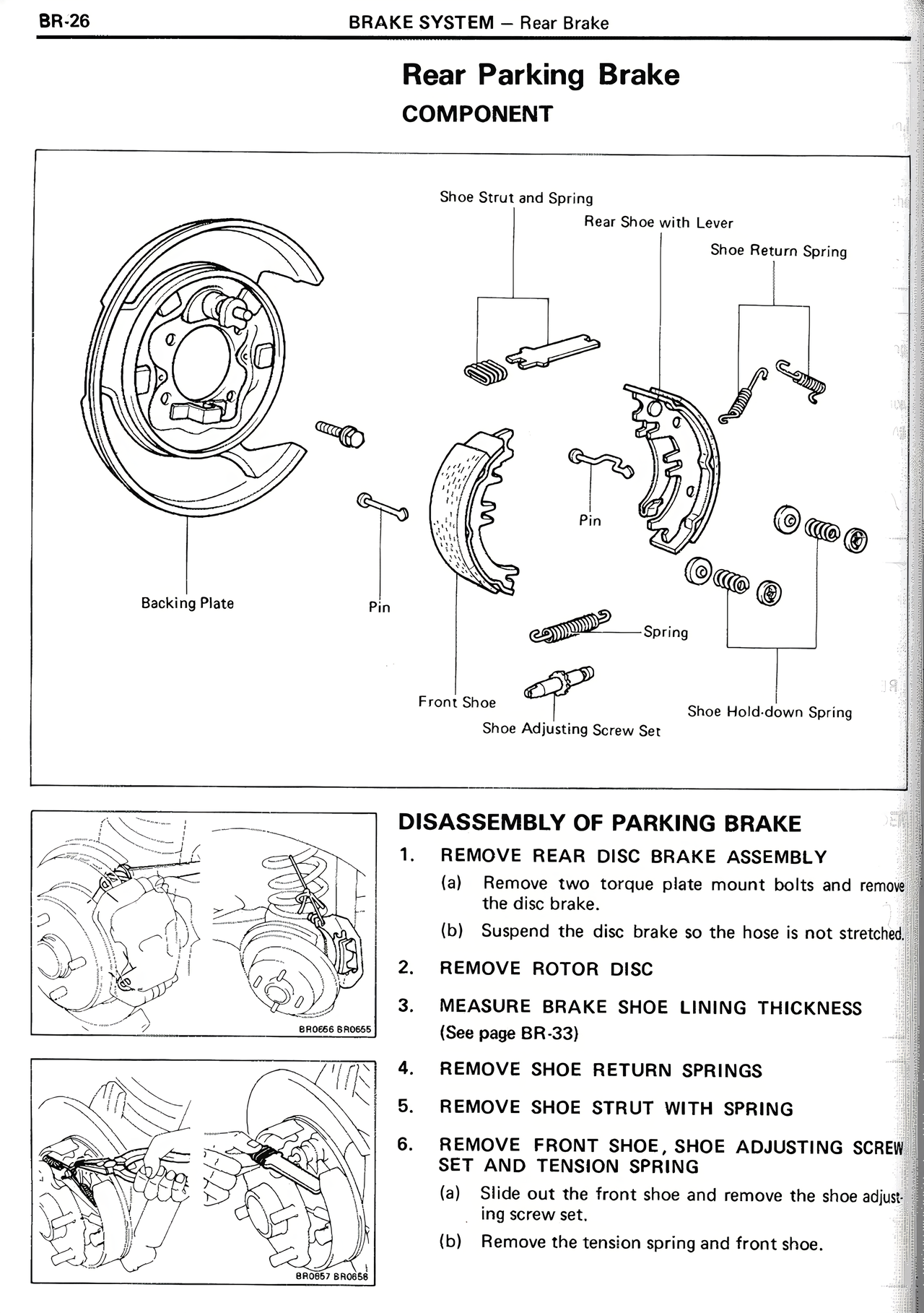

BR-26 BRAKE SYSTEM — Rear Brake
Rear Parking Brake
COMPONENT
Shoe Strut and Spring
Rear Shoe with Lever
Shoe Return Spring
Backing Plate
Pin
Pin
Front Shoe
Shoe Adjusting Screw Set
Spring
Shoe Hold-down Spring
DISASSEMBLY OF PARKING BRAKE
1. REMOVE REAR DISC BRAKE ASSEMBLY
(a) Remove two torque plate mount bolts and remove
the disc brake.
(b) Suspend the disc brake so the hose is not stretched.
2. REMOVE ROTOR DISC
3. MEASURE BRAKE SHOE LINING THICKNESS
(See page BR-33)
4. REMOVE SHOE RETURN SPRINGS
5. REMOVE SHOE STRUT WITH SPRING
6. REMOVE FRONT SHOE, SHOE ADJUSTING SCREW
SET AND TENSION SPRING
(a) Slide out the front shoe and remove the shoe adjust-
ing screw set.
(b) Remove the tension spring and front shoe.
BR0665 BR0683
BR0667 BR0684
