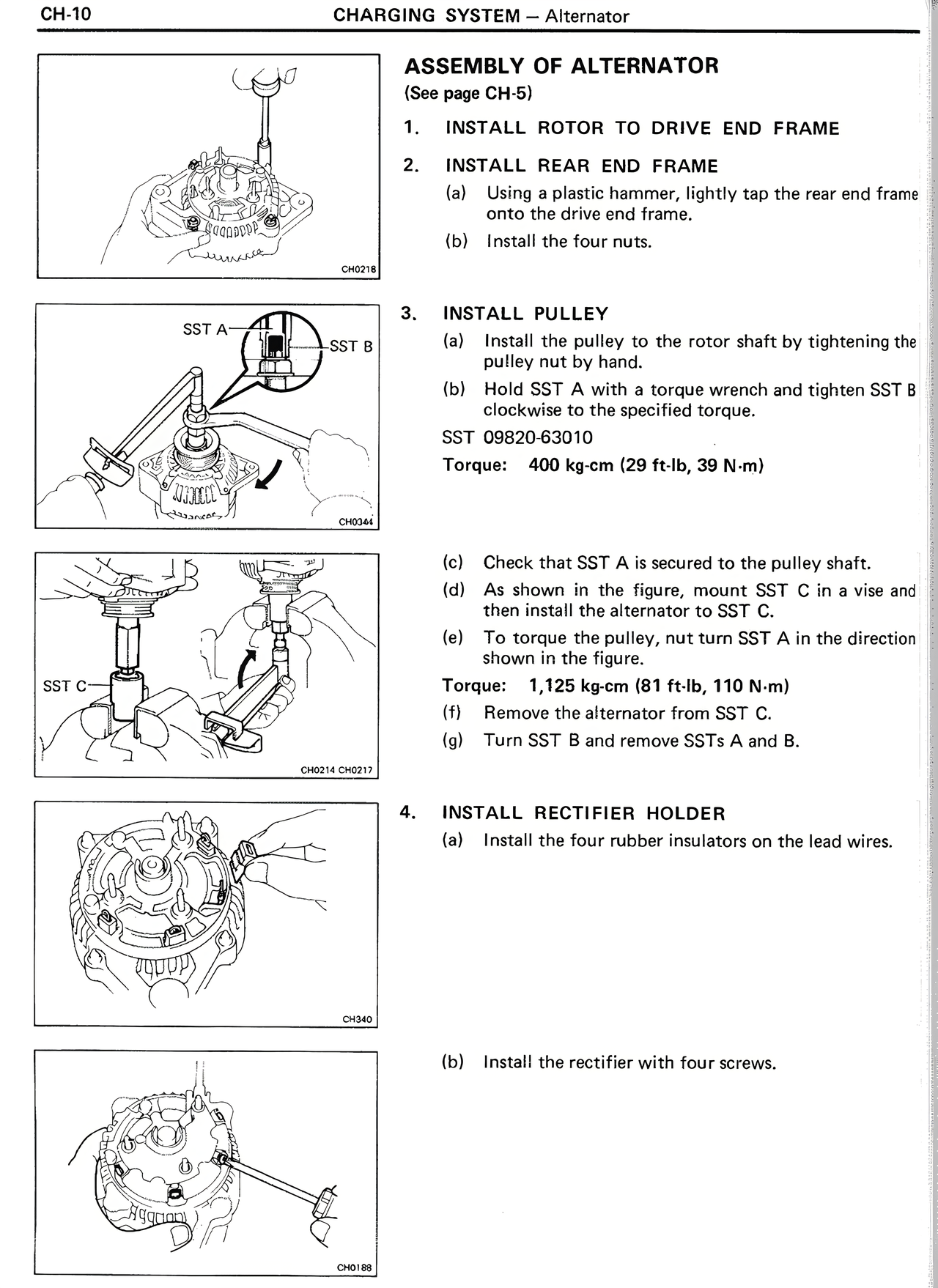

ASSEMBLY OF ALTERNATOR (See page CH-5) 1. INSTALL ROTOR TO DRIVE END FRAME 2. INSTALL REAR END FRAME (a) Using a plastic hammer, lightly tap the rear end frame onto the drive end frame. (b) Install the four nuts. 3. INSTALL PULLEY (a) Install the pulley to the rotor shaft by tightening the pulley nut by hand. (b) Hold SST A with a torque wrench and tighten SST B clockwise to the specified torque. SST 09820-63010 Torque: 400 kg-cm (29 ft-lb, 39 N·m) (c) Check that SST A is secured to the pulley shaft. (d) As shown in the figure, mount SST C in a vise and then install the alternator to SST C. (e) To torque the pulley, nut turn SST A in the direction shown in the figure. Torque: 1,125 kg-cm (81 ft-lb, 110 N·m) (f) Remove the alternator from SST C. (g) Turn SST B and remove SSTs A and B. 4. INSTALL RECTIFIER HOLDER (a) Install the four rubber insulators on the lead wires. (b) Install the rectifier with four screws.
