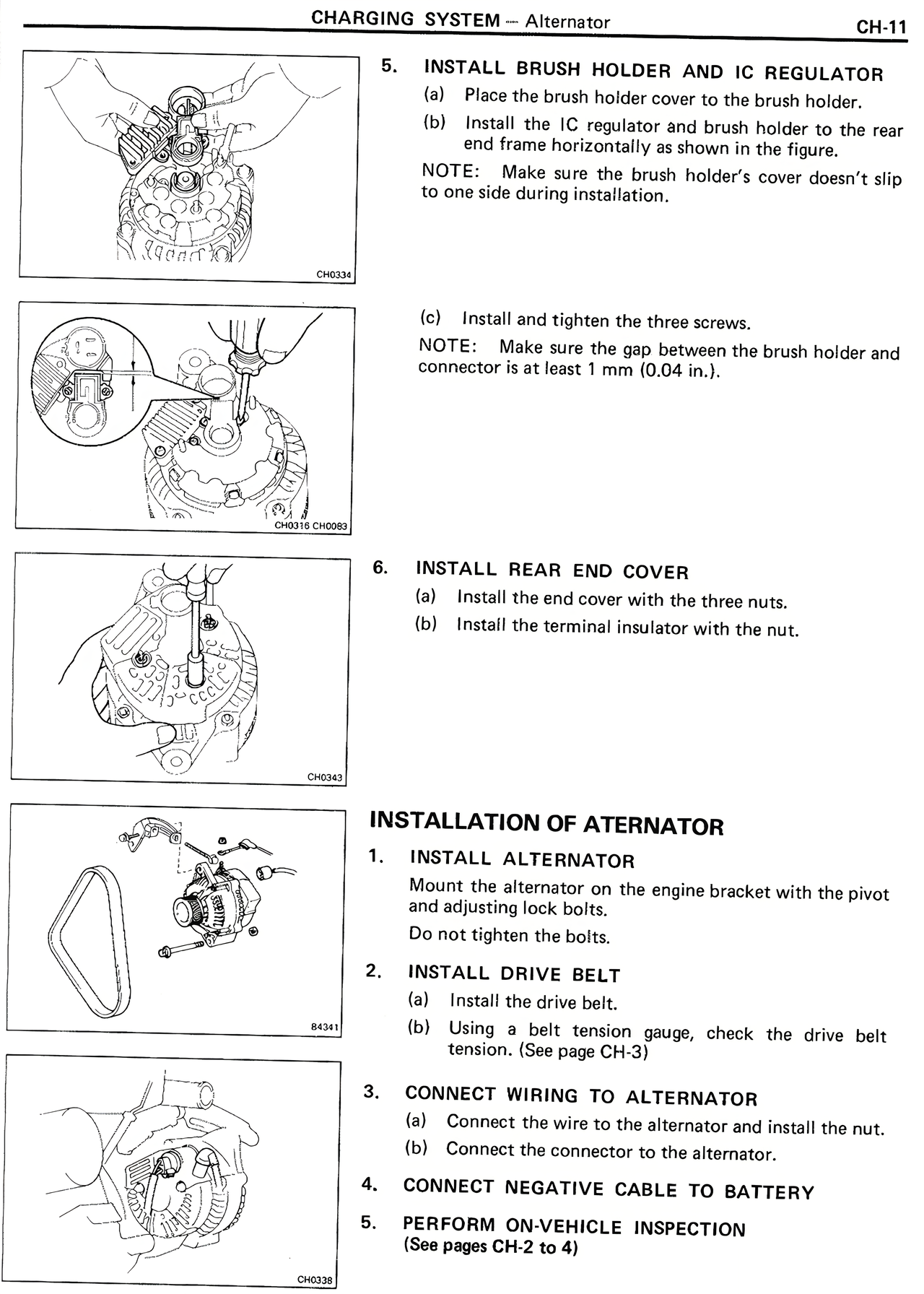

5. INSTALL BRUSH HOLDER AND IC REGULATOR
(a) Place the brush holder cover to the brush holder.
(b) Install the IC regulator and brush holder to the rear end frame horizontally as shown in the figure.
NOTE: Make sure the brush holder's cover doesn't slip to one side during installation.
(c) Install and tighten the three screws.
NOTE: Make sure the gap between the brush holder and connector is at least 1 mm (0.04 in.).
6. INSTALL REAR END COVER
(a) Install the end cover with the nuts.
(b) Install the terminal insulator with the nut.
INSTALLATION OF ALTERNATOR
1. INSTALL ALTERNATOR
Mount the alternator on the engine bracket with the pivot and adjusting lock bolts.
Do not tighten the bolts.
2. INSTALL DRIVE BELT
(a) Install the drive belt.
(b) Using a belt tension gauge, check the drive belt tension. (See page CH-3)
3. CONNECT WIRING TO ALTERNATOR
(a) Connect the wire to the alternator and install the nut.
(b) Connect the connector to the alternator.
4. CONNECT NEGATIVE CABLE TO BATTERY
5. PERFORM ON-VEHICLE INSPECTION
(See pages CH-2 to 4)
