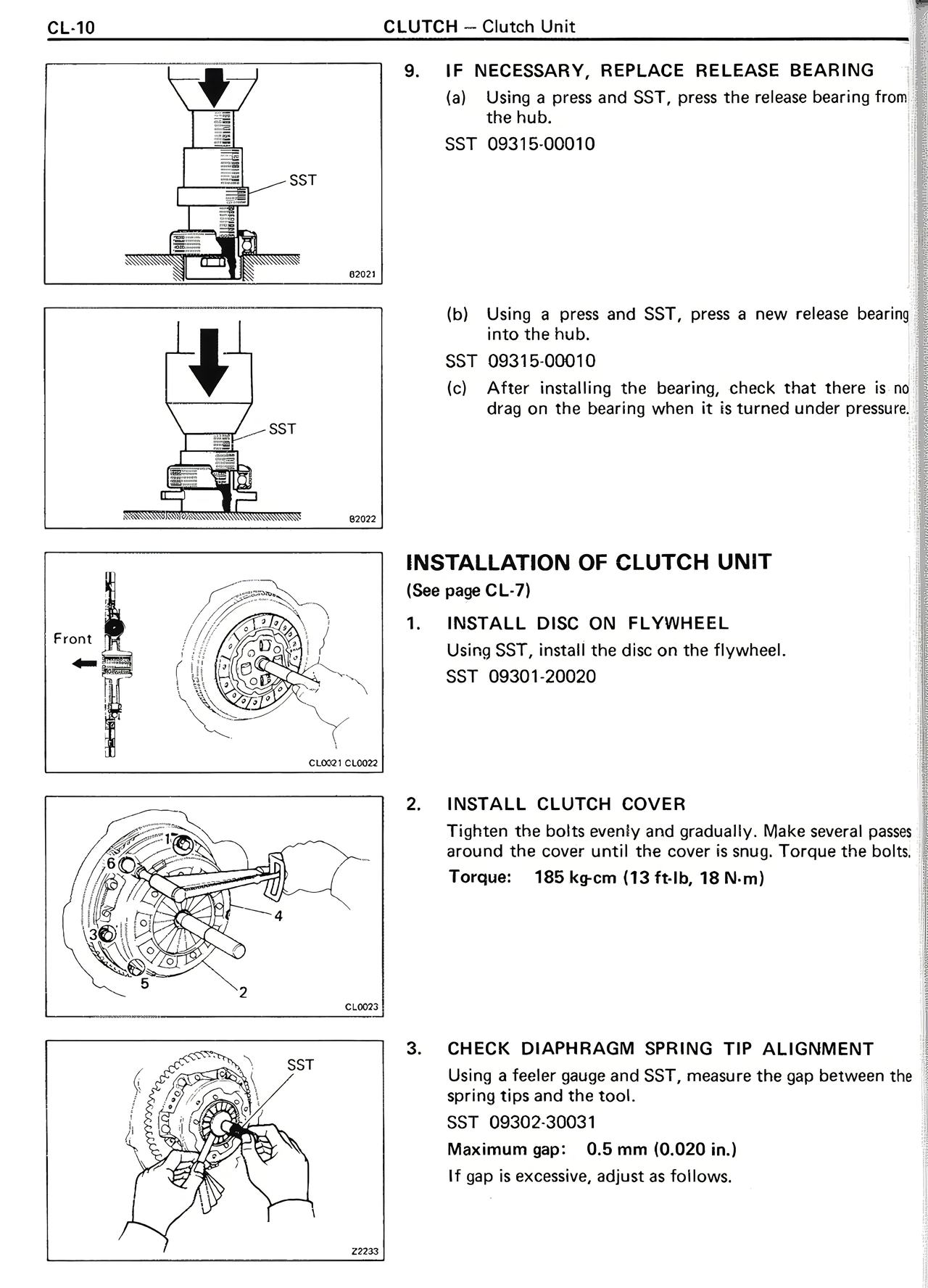

CL-10 CLUTCH — Clutch Unit 9. IF NECESSARY, REPLACE RELEASE BEARING (a) Using a press and SST, press the release bearing from the hub. SST 09315-00010 (b) Using a press and SST, press a new release bearing into the hub. SST 09315-00010 (c) After installing the bearing, check that there is no drag on the bearing when it is turned under pressure. INSTALLATION OF CLUTCH UNIT (See page CL-7) 1. INSTALL DISC ON FLYWHEEL Using SST, install the disc on the flywheel. SST 09301-20020 2. INSTALL CLUTCH COVER Tighten the bolts evenly and gradually. Make several passes around the cover until the cover is snug. Torque the bolts. Torque: 185 kg·cm (13 ft·lb, 18 N·m) 3. CHECK DIAPHRAGM SPRING TIP ALIGNMENT Using a feeler gauge and SST, measure the gap between the spring tips and the tool. SST 09302-30031 Maximum gap: 0.5 mm (0.020 in.) If gap is excessive, adjust as follows.
