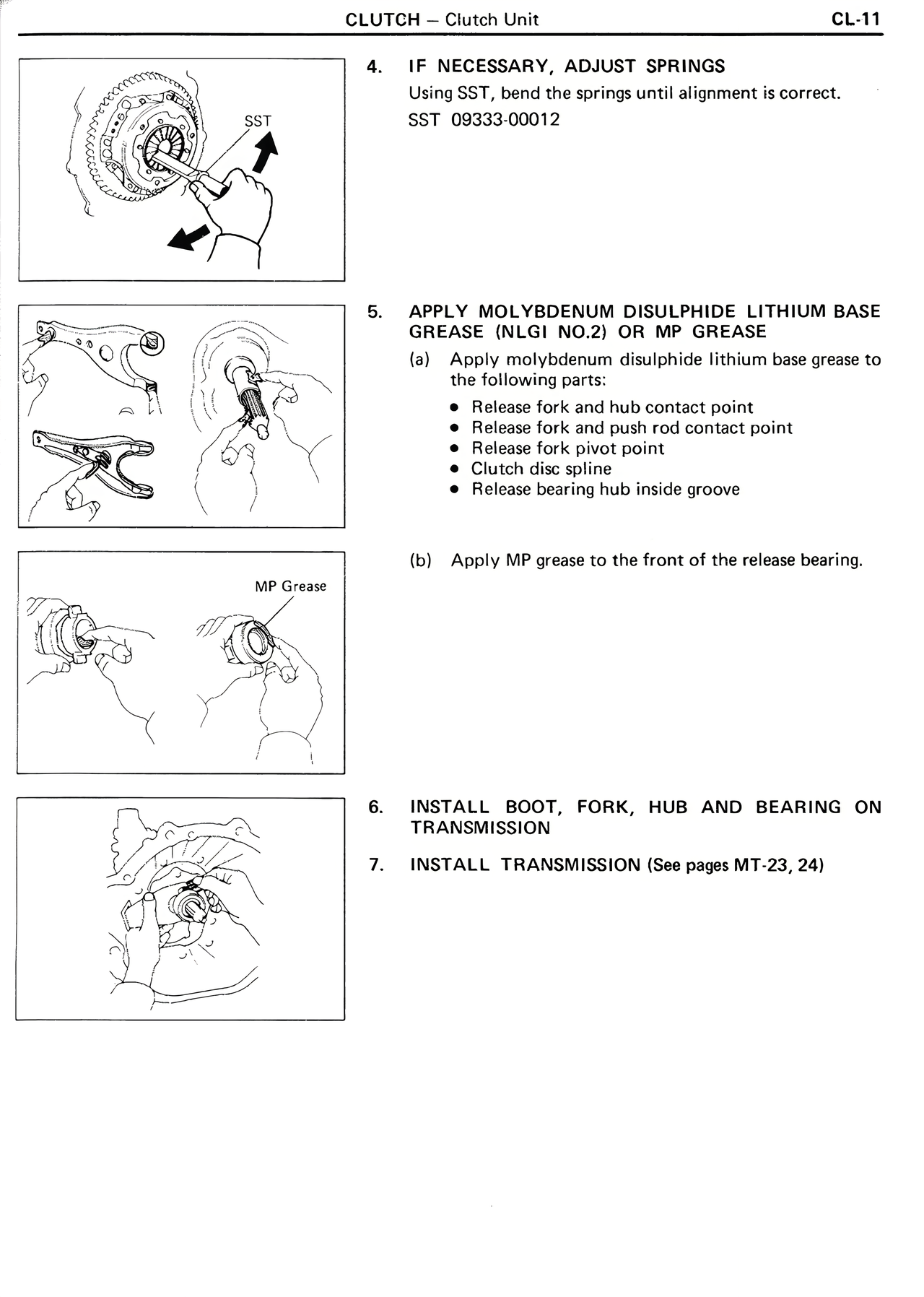

4. IF NECESSARY, ADJUST SPRINGS
Using SST, bend the springs until alignment is correct.
SST 09333-00012
5. APPLY MOLYBDENUM DISULPHIDE LITHIUM BASE GREASE (NLGI NO.2) OR MP GREASE
(a) Apply molybdenum disulphide lithium base grease to the following parts:
• Release fork and hub contact point
• Release fork and push rod contact point
• Release fork pivot point
• Clutch disc spline
• Release bearing hub inside groove
(b) Apply MP grease to the front of the release bearing.
6. INSTALL BOOT, FORK, HUB AND BEARING ON TRANSMISSION
7. INSTALL TRANSMISSION (See pages MT-23, 24)
