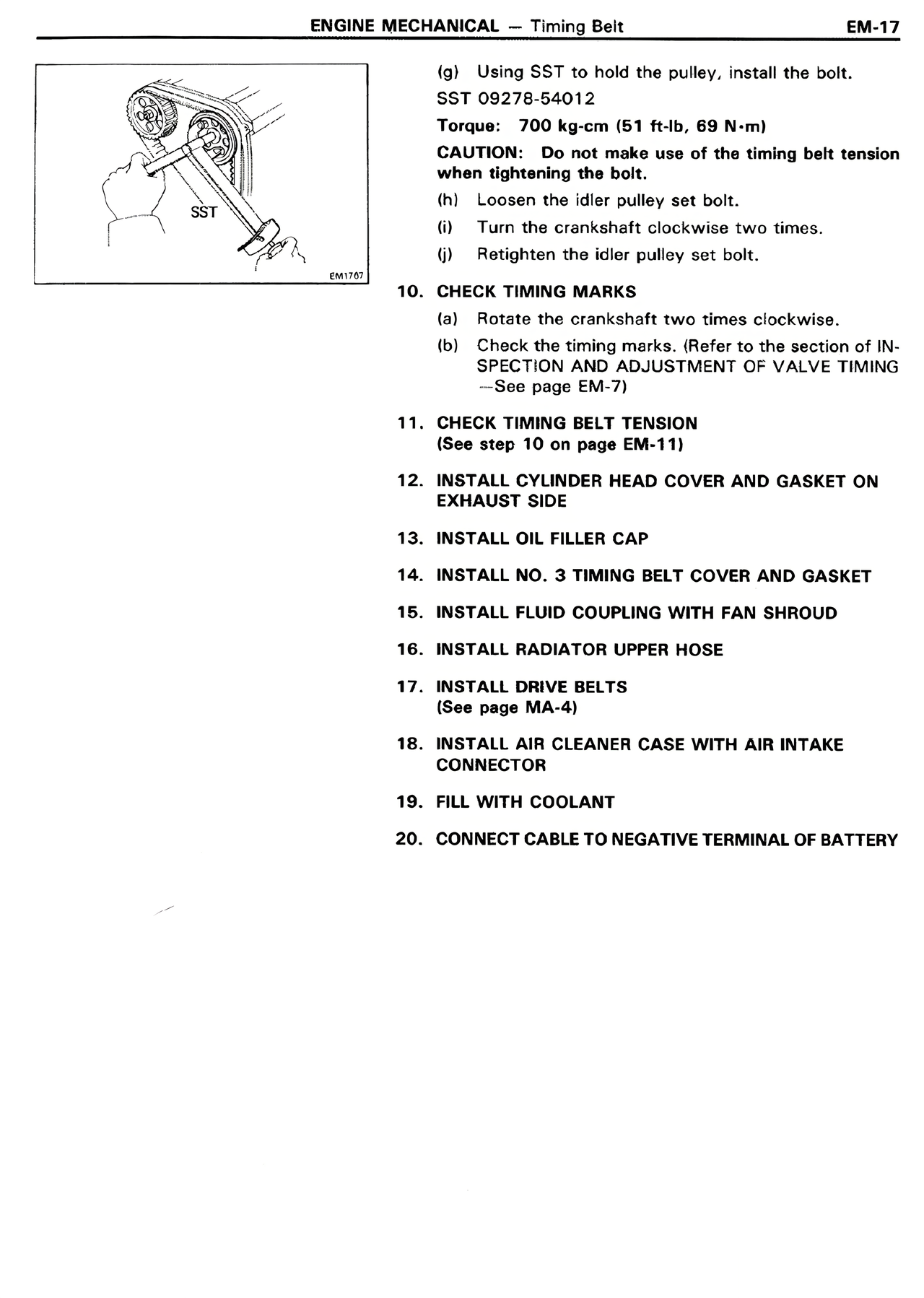

ENGINE MECHANICAL — Timing Belt EM-17 (g) Using SST to hold the pulley, install the bolt. SST 09278-54012 Torque: 700 kg-cm (51 ft-lb, 69 N·m) CAUTION: Do not make of the timing belt tension when tightening the bolt. (h) Loosen the idler pulley set bolt. (i) Turn the crankshaft clockwise two times. (j) Retighten the idler pulley set bolt. 10. CHECK TIMING MARKS (a) Rotate the crankshaft two times clockwise. (b) Check the timing marks. (Refer to the section of IN-SPECTION AND ADJUSTMENT OF VALVE TIMING — See page EM-7) 11. CHECK TIMING BELT TENSION (See step 10 on page EM-11) 12. INSTALL CYLINDER HEAD COVER AND GASKET ON EXHAUST SIDE 13. INSTALL OIL FILLER CAP 14. INSTALL NO. 3 TIMING BELT COVER AND GASKET 15. INSTALL FLUID COUPLING WITH FAN SHROUD 16. INSTALL RADIATOR UPPER HOSE 17. INSTALL DRIVE BELTS (See page MA-4) 18. INSTALL AIR CLEANER CASE WITH AIR INTAKE CONNECTOR 19. FILL WITH COOLANT 20. CONNECT CABLE TO NEGATIVE TERMINAL OF BATTERY
