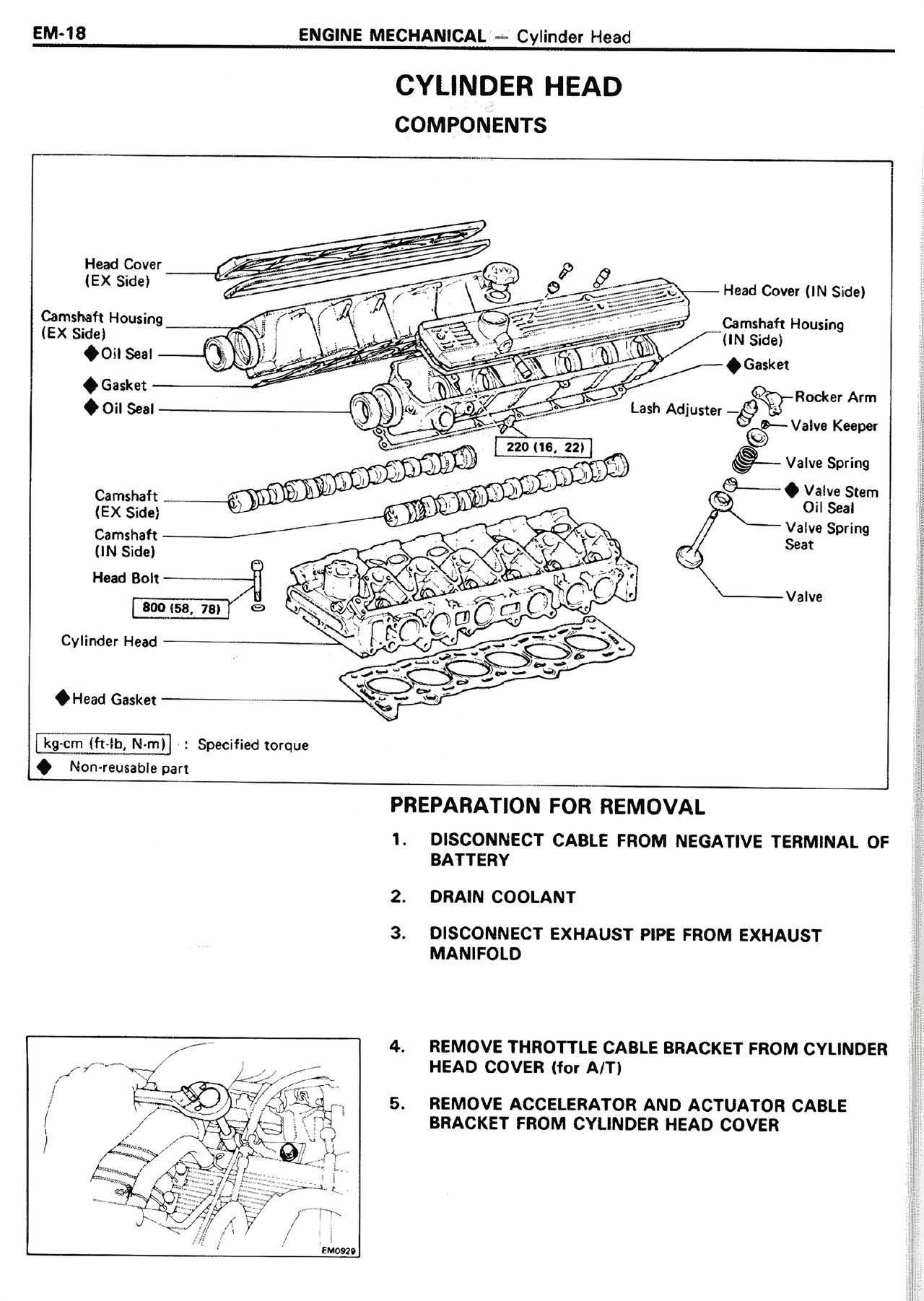

CYLINDER HEAD COMPONENTS Head Cover (EX Side) Head Cover (IN Side) Camshaft Housing (IN Side) Camshaft Housing (EX Side) Gasket Oil Seal Gasket Rocker Arm Oil Seal Lash Adjuster Valve Keeper [20 [16, 22]] Valve Spring Valve Stem Camshaft Oil Seal (EX Side) Valve Spring Camshaft Retainer (IN Side) Valve Head Bolt [90 [68, 78]] Cylinder Head Head Gasket kg·cm [ft·lb, N·m] : Specified torque ◆ Non-reusable part PREPARATION FOR REMOVAL 1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF BATTERY 2. DRAIN COOLANT 3. DISCONNECT EXHAUST PIPE FROM EXHAUST MANIFOLD 4. REMOVE THROTTLE CABLE BRACKET FROM CYLINDER HEAD COVER (for A/T) 5. REMOVE ACCELERATOR AND ACTUATOR CABLE BRACKET FROM CYLINDER HEAD COVER
