Lower Arm
(See page FA-14)

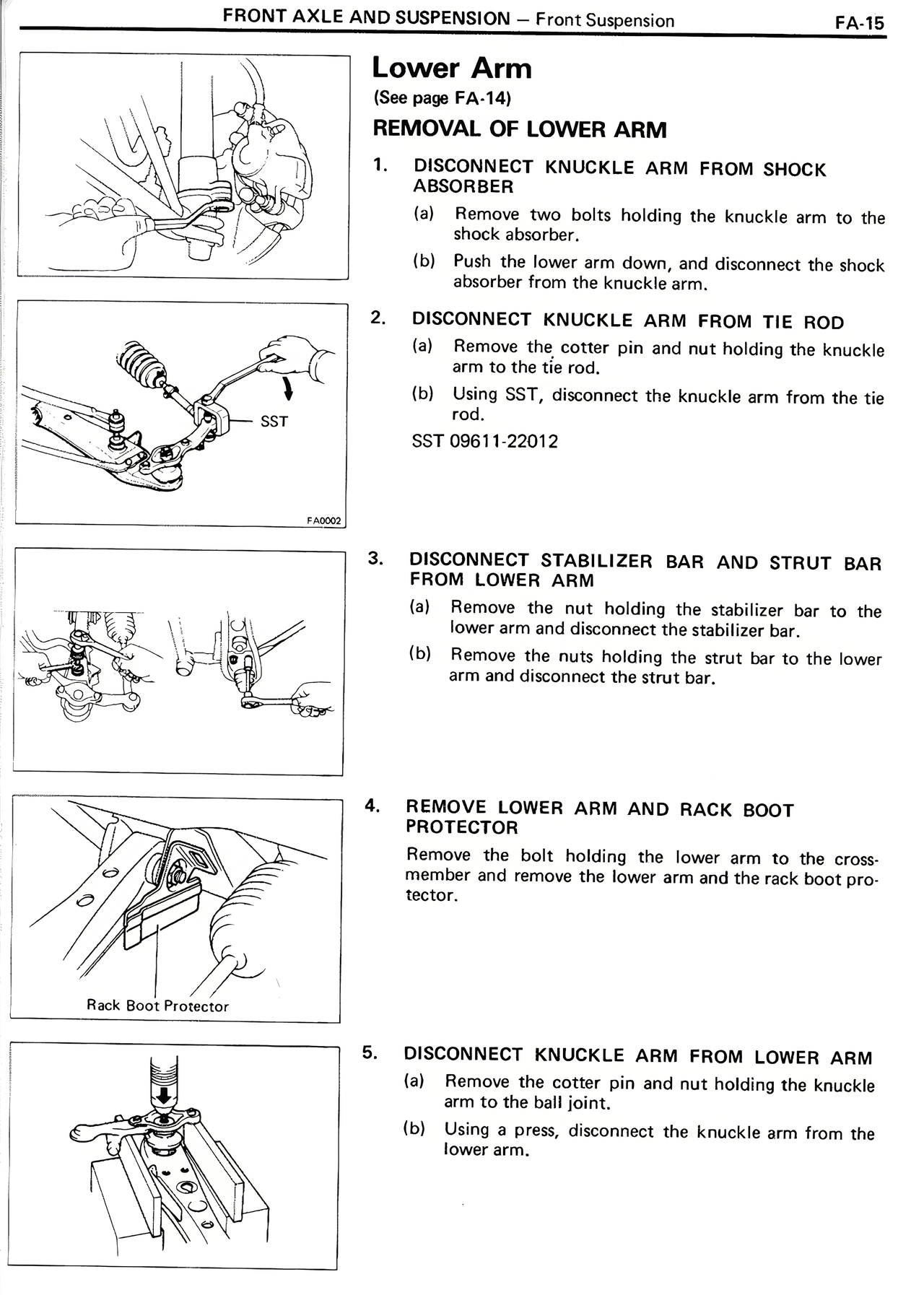

REMOVAL OF LOWER ARM
1. DISCONNECT KNUCKLE ARM FROM SHOCK ABSORBER
(a) Remove two bolts holding the knuckle arm to the shock absorber.
(b) Push the lower arm down, and disconnect the shock absorber from the knuckle arm.
2. DISCONNECT KNUCKLE ARM FROM TIE ROD
(a) Remove the cotter pin and nut holding the knuckle arm to the tie rod.
(b) Using SST, disconnect the knuckle arm from the tie rod.
SST 09611-22012
3. DISCONNECT STABILIZER BAR AND STRUT BAR FROM LOWER ARM
(a) Remove the nut holding the stabilizer bar to the lower arm and disconnect the stabilizer bar.
(b) Remove the nuts holding the strut bar to the lower arm and disconnect the strut bar.
4. REMOVE LOWER ARM AND RACK BOOT PROTECTOR
Remove the bolt holding the lower arm to the cross-member and remove the lower arm and the rack boot protector.
5. DISCONNECT KNUCKLE ARM FROM LOWER ARM
(a) Remove the cotter pin and nut holding the knuckle arm to the ball joint.
(b) Using a press, disconnect the knuckle arm from the lower arm.
