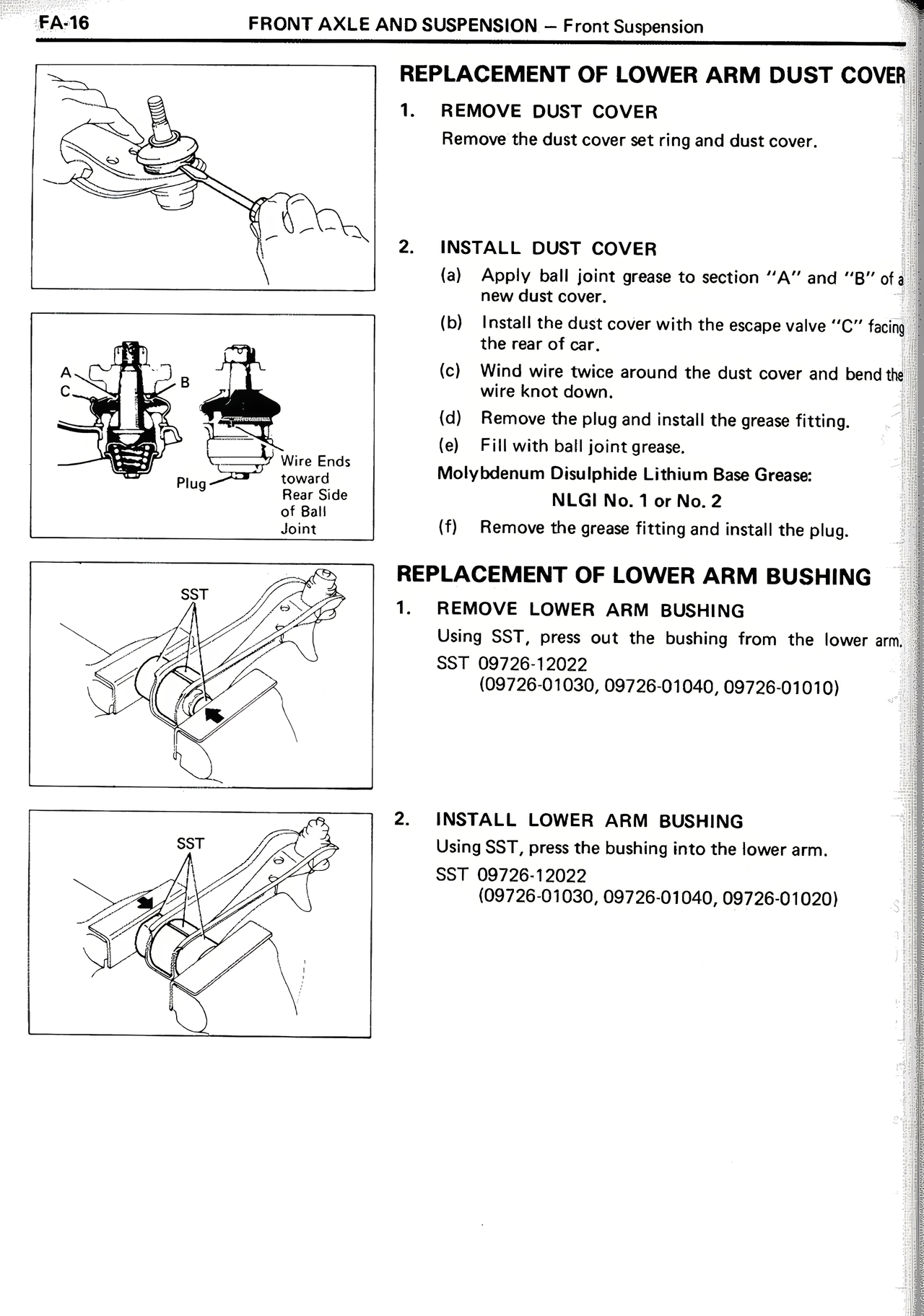

FA-16
FRONT AXLE AND SUSPENSION — Front Suspension
REPLACEMENT OF LOWER ARM DUST COVER
1. REMOVE DUST COVER
Remove the dust cover set ring and dust cover.
2. INSTALL DUST COVER
(a) Apply ball joint grease to section "A" and "B" of a new dust cover.
(b) Install the dust cover with the escape valve "C" facing the rear of car.
(c) Wind wire twice around the dust cover and bend the wire knot down.
(d) Remove the plug and install the grease fitting.
(e) Fill with ball joint grease.
Molybdenum Disulphide Lithium Base Grease:
NLGI No. 1 or No. 2
(f) Remove the grease fitting and install the plug.
REPLACEMENT OF LOWER ARM BUSHING
1. REMOVE LOWER ARM BUSHING
Using SST, press out the bushing from the lower arm.
SST 09726-12022
(09726-01030, 09726-01040, 09726-01010)
2. INSTALL LOWER ARM BUSHING
Using SST, press the bushing into the lower arm.
SST 09726-12022
(09726-01030, 09726-01040, 09726-01020)
