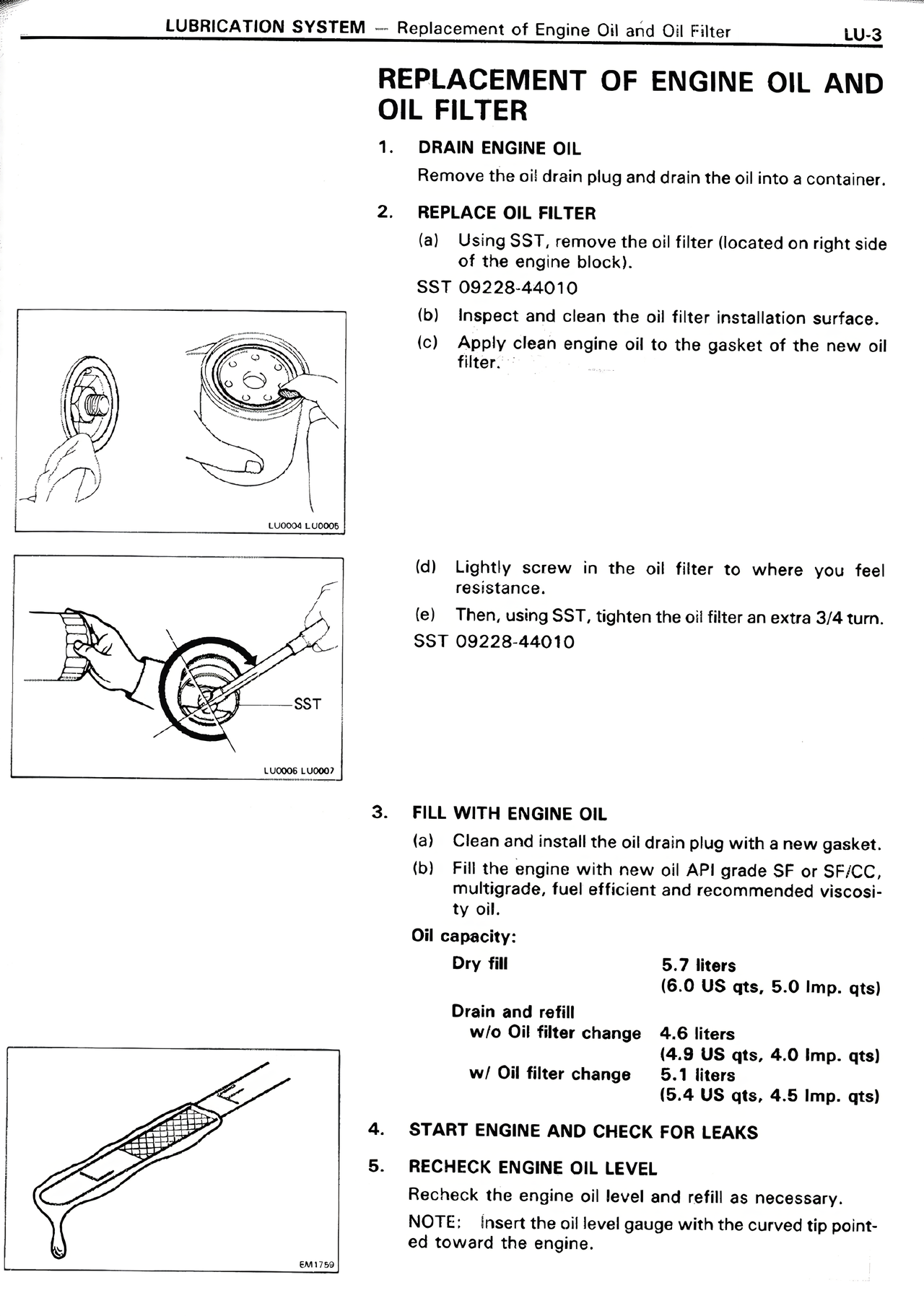

REPLACEMENT OF ENGINE OIL AND OIL FILTER 1. DRAIN ENGINE OIL Remove the oil drain plug and drain the oil into a container. 2. REPLACE OIL FILTER (a) Using SST, remove the oil filter (located on right side of the engine block). SST 09228-44010 (b) Inspect and clean the oil filter installation surface. (c) Apply clean engine oil to the gasket of the new oil filter. (d) Lightly screw in the oil filter to where you feel resistance. (e) Then, using SST, tighten the oil filter an extra 3/4 turn. SST 09228-44010 3. FILL WITH ENGINE OIL (a) Clean and install the oil drain plug with a new gasket. (b) Fill the engine with new oil API grade SF or SF/CC, multigrade, fuel efficient and recommended viscosity oil. Oil capacity: Dry fill 5.7 liters (6.0 US qts, 5.0 Imp. qts) Drain and refill w/o Oil filter change 4.6 liters (4.9 US qts, 4.0 Imp. qts) w/ Oil filter change 5.1 liters (5.4 US qts, 4.5 Imp. qts) 4. START ENGINE AND CHECK FOR LEAKS 5. RECHECK ENGINE OIL LEVEL Recheck the engine oil level and refill as necessary. NOTE: Insert the oil level gauge with the curved tip pointed toward the engine.
