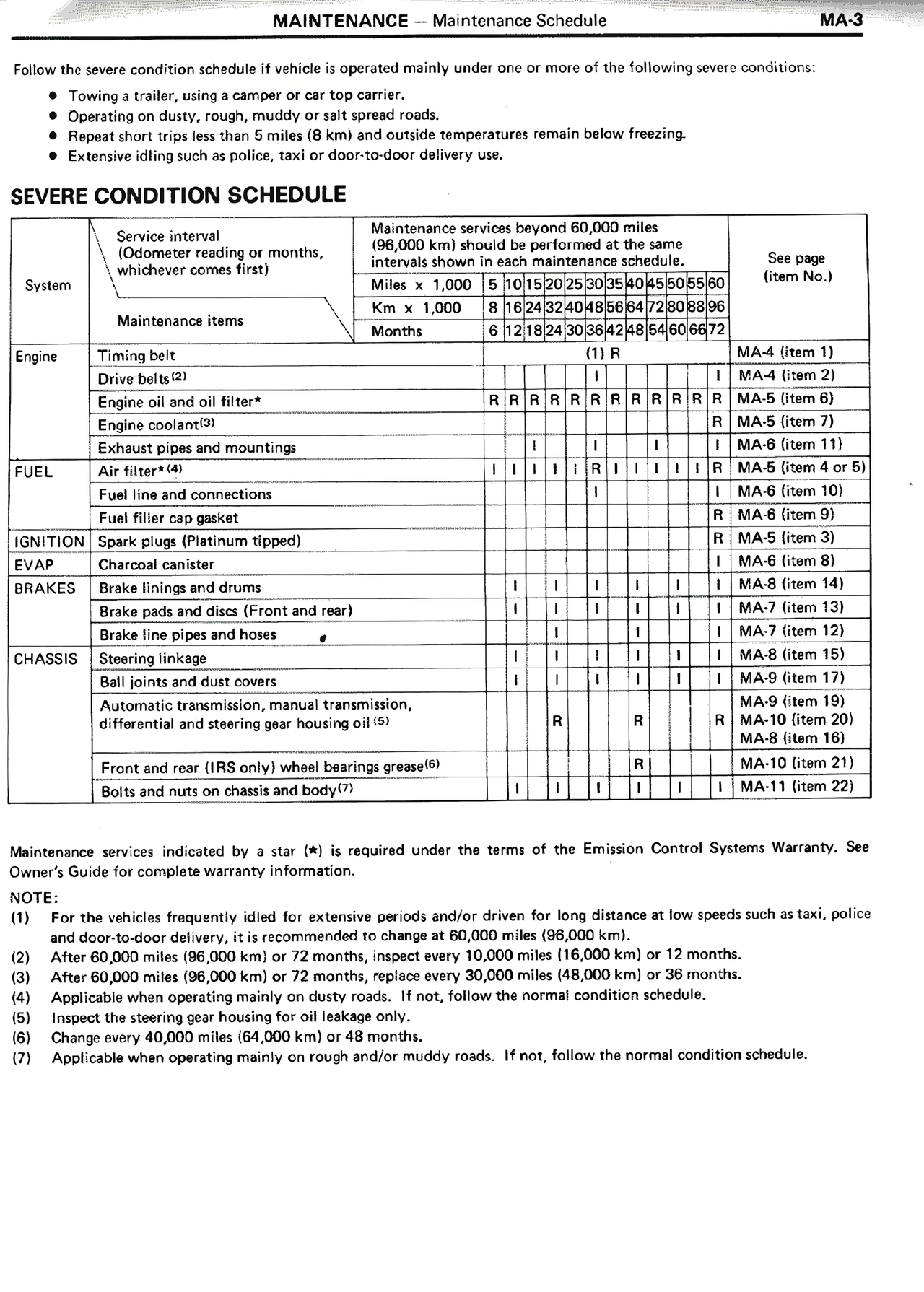

MAINTENANCE — Maintenance Schedule MA-3 Follow the severe condition schedule if vehicle is operated mainly under one or more of the following severe conditions: • Towing a trailer, using a camper or car top carrier. • Operating on dusty, rough, muddy or salt spread roads. • Repeat short trips less than 5 miles (8 km) and outside temperatures remain below freezing. • Extensive idling such as police, taxi or door-to-door delivery use. SEVERE CONDITION SCHEDULE Maintenance services beyond 60,000 miles (96,000 km) should be performed at the same intervals shown in each maintenance schedule. See page item No. Miles x 1,000 5 10 15 20 25 30 35 40 45 50 55 60 km x 1,000 8 16 24 32 40 48 56 64 72 80 88 96 Months 6 12 18 24 30 36 42 48 54 60 66 72 System | Service interval (Odometer reading or months, whichever comes first) | Maintenance items Engine: Timing belt (1) R MA-4 (item 1) Drive belts(2) I I I MA-4 (item 2) Engine oil and oil filter* R R R R R R R R R R R R MA-5 (item 6) Engine coolant(3) R R MA-5 (item 7) Exhaust pipes and mounting I I I MA-5 (item 11) FUEL: Air filter*(4) I I I I R I I I I I I R MA-5 (item 4 or 5) Fuel line and connections I I MA-6 (item 10) Fuel filler cap gasket R R MA-6 (item 9) IGNITION EVAP: Spark plugs (Platinum tipped) R R MA-5 (item 3) Charcoal canister I MA-6 (item 8) BRAKES: Brake linings and drums I I I I I I I MA-8 (item 14) Brake pads and discs (Front and rear) I I I I I I I MA-7 (item 13) Brake line pipes and hoses I I I MA-7 (item 12) CHASSIS: Steering linkage I I I I I I I MA-8 (item 15) Ball joints and dust covers I I I I I I I MA-9 (item 17) Automatic transmission, manual transmission, differential and steering gear housing oil(5) R R R MA-9 (item 19) MA-19 (item 20) MA-8 (item 16) Front and rear (IRS only) wheel bearings grease(6) R R MA-10 (item 21) Bolts and nuts on chassis and body(7) I I I I I I I MA-11 (item 22) Maintenance services indicated by a star (*) is required under the terms of the Emission Control Systems Warranty. See Owner's Guide for complete warranty information. NOTE: (1) For the vehicles frequently idled for extensive periods and/or driven for long distance at low speeds such as taxi, police and door-to-door delivery, it is recommended to change at 60,000 miles (96,000 km). (2) After 60,000 miles (96,000 km) or 72 months, inspect every 10,000 miles (16,000 km) or 12 months. (3) After 60,000 miles (96,000 km) or 72 months, replace every 30,000 miles (48,000 km) or 36 months. (4) Applicable when operating mainly on dusty roads. If not, follow the normal condition schedule. (5) Inspect the steering gear housing for oil leakage only. (6) Change every 40,000 miles (64,000 km) or 48 months. (7) Applicable when operating mainly on rough and/or muddy roads. If not, follow the normal condition schedule.
