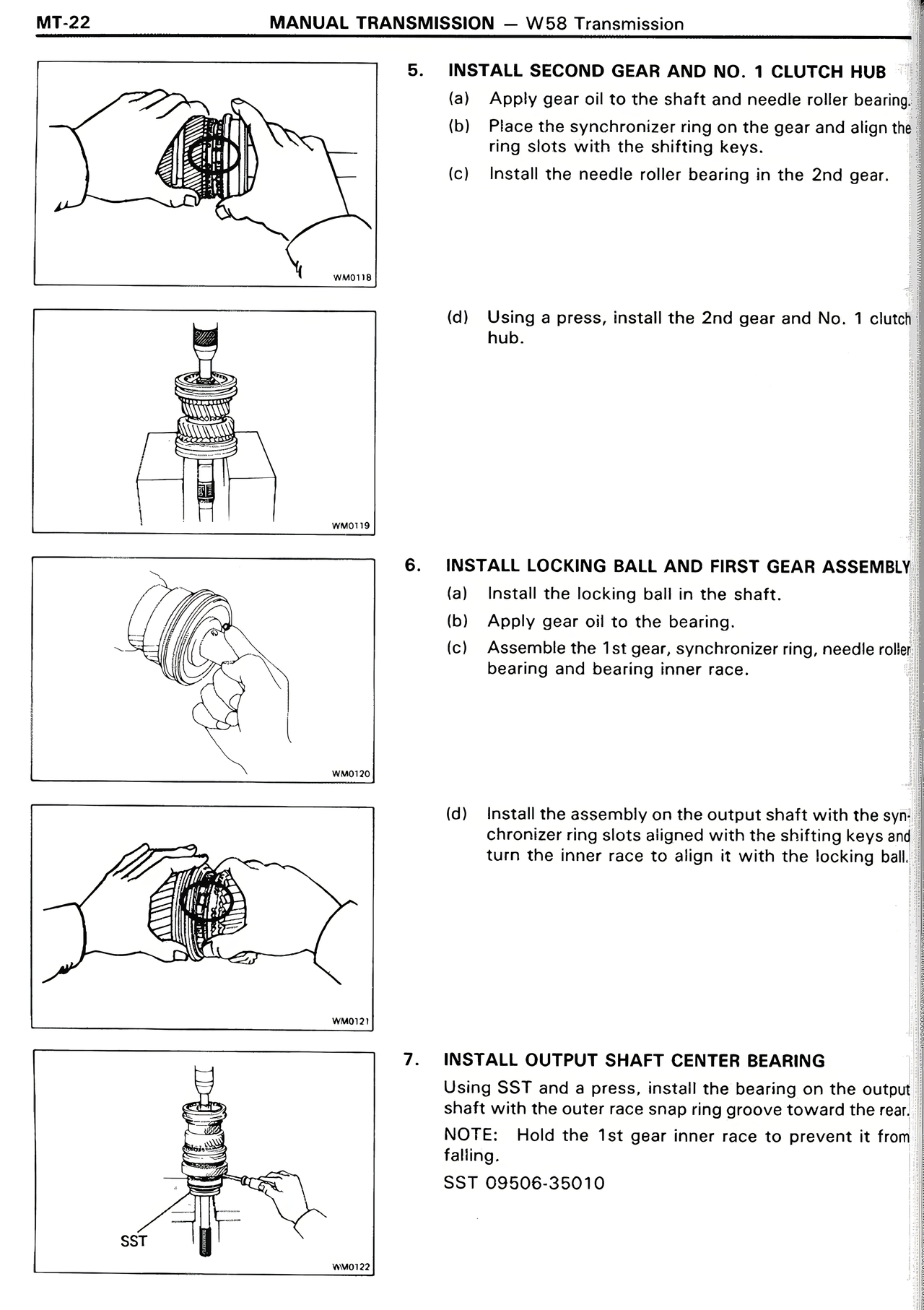

MT-22 MANUAL TRANSMISSION — W58 Transmission 5. INSTALL SECOND GEAR AND NO. 1 CLUTCH HUB (a) Apply gear oil to the shaft and needle roller bearing. (b) Place the synchronizer ring on the gear and align the ring slots with the shifting keys. (c) Install the needle roller bearing in the 2nd gear. (d) Using a press, install the 2nd gear and No. 1 clutch hub. 6. INSTALL LOCKING BALL AND FIRST GEAR ASSEMBLY (a) Install the locking ball in the shaft. (b) Apply gear oil to the bearing. (c) Assemble the 1st gear, synchronizer ring, needle roller bearing and bearing inner race. (d) Install the assembly on the output shaft with the synchronizer ring slots aligned with the shifting keys and turn the inner race to align it with the locking ball. 7. INSTALL OUTPUT SHAFT CENTER BEARING Using SST and a press, install the bearing on the output shaft with the outer race snap ring groove toward the rear. NOTE: Hold the 1st gear inner race to prevent it from falling. SST 09506-35010
