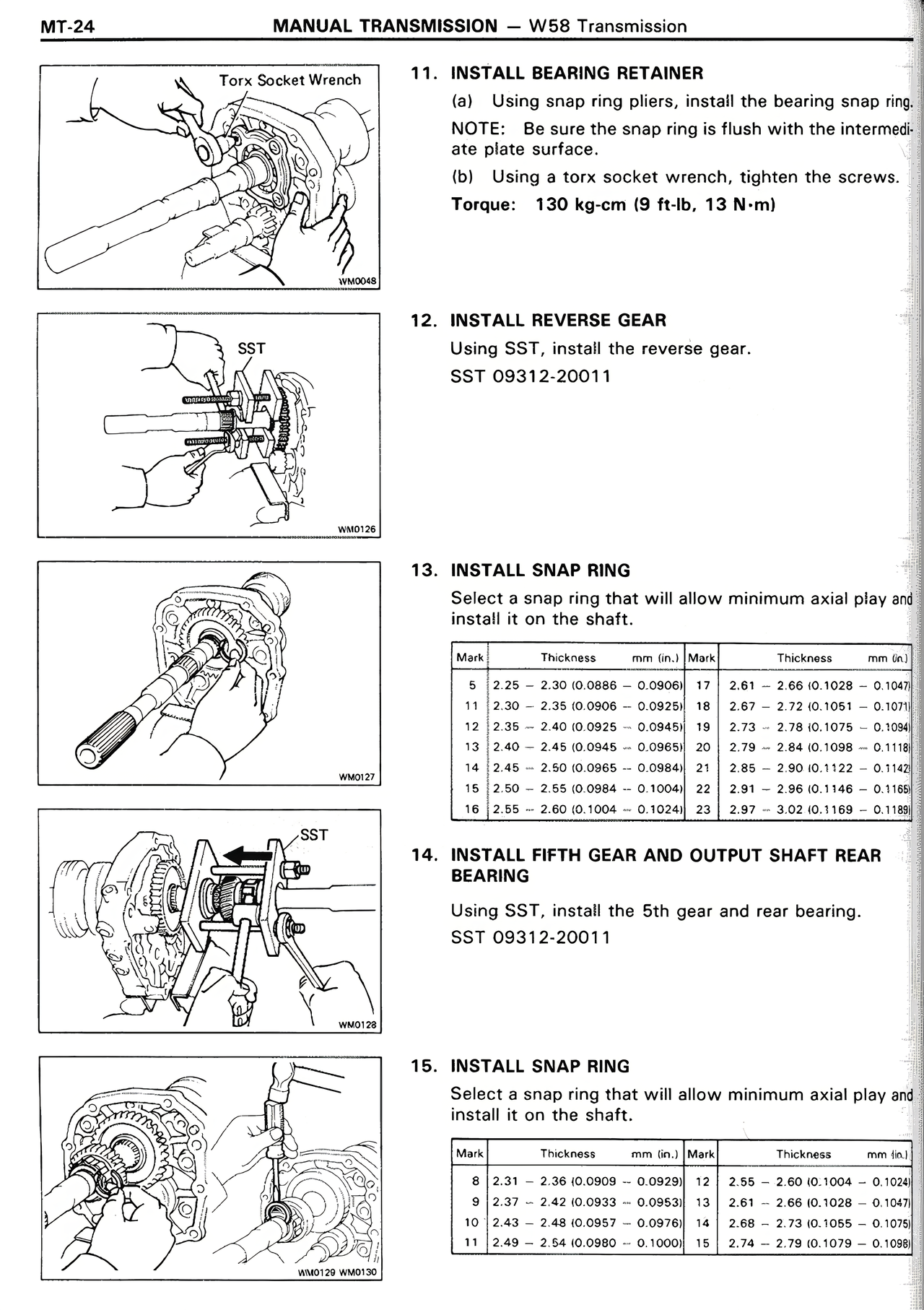

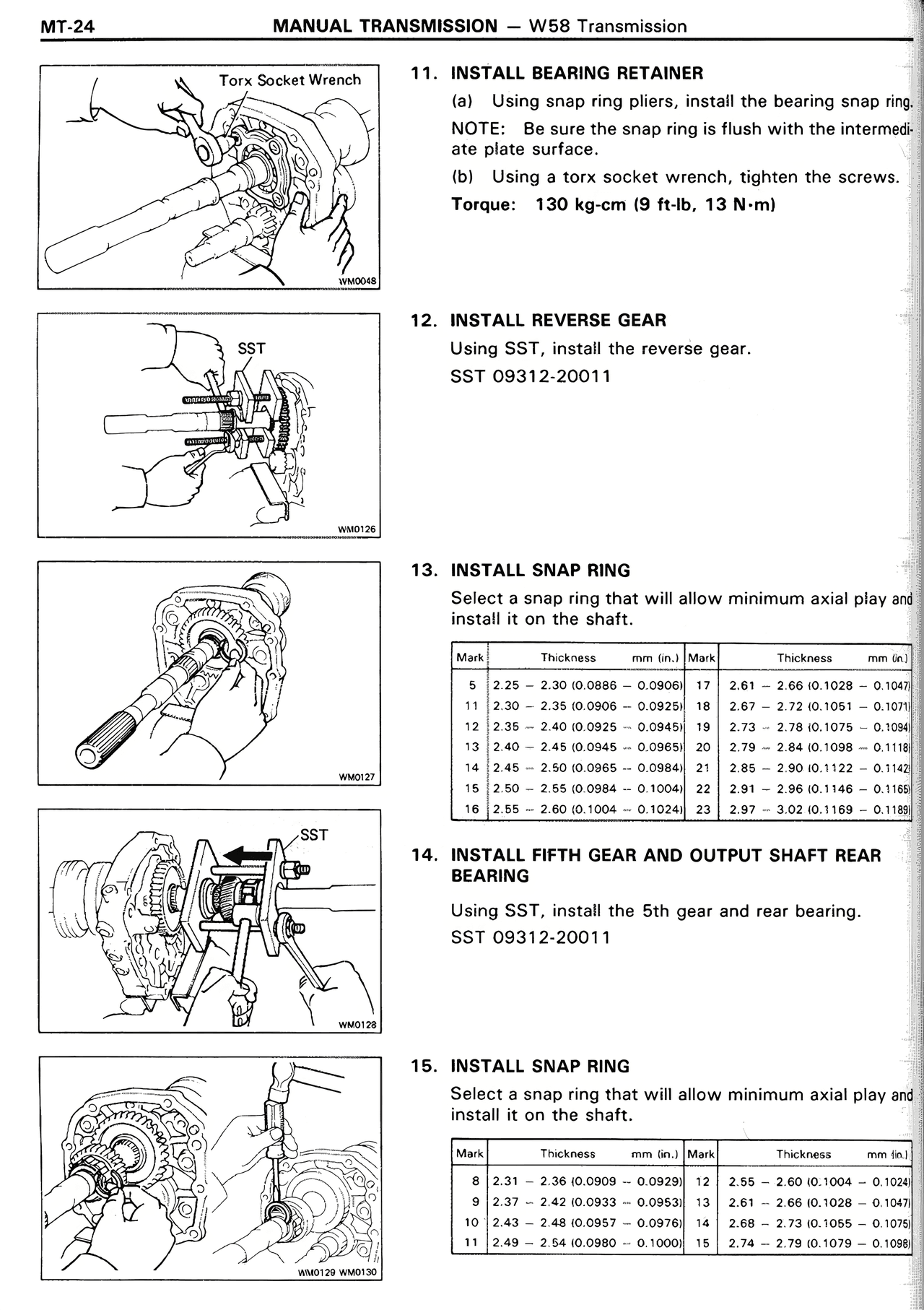

MT-24 MANUAL TRANSMISSION — W58 Transmission
11. INSTALL BEARING RETAINER
(a) Using snap ring pliers, install the bearing snap ring.
NOTE: Be sure the snap ring is flush with the intermediate plate surface.
(b) Using a torx socket wrench, tighten the screws.
Torque: 130 kg-cm (9 ft-lb, 13 N-m)
12. INSTALL REVERSE GEAR
Using SST, install the reverse gear.
SST 09312-20011
13. INSTALL SNAP RING
Select a snap ring that will allow minimum axial play and install it on the shaft.
Mark | Thickness | mm (in.) | Mark | Thickness | mm (in.)
7 | 2.25 - 2.30 |0.0886 - 0.0906| 17 | 2.61 - 2.66 |0.1028 - 0.1047
11 | 2.30 - 2.35 |0.0906 - 0.0925| 18 | 2.67 - 2.72 |0.1051 - 0.1071
12 | 2.35 - 2.40 |0.0925 - 0.0945| 19 | 2.73 - 2.78 |0.1075 - 0.1094
13 | 2.40 - 2.45 |0.0945 - 0.0965| 20 | 2.79 - 2.84 |0.1098 - 0.1118
14 | 2.45 - 2.50 |0.0965 - 0.0984| 21 | 2.85 - 2.90 |0.1122 - 0.1142
15 | 2.50 - 2.55 |0.0984 - 0.1004| 22 | 2.91 - 2.96 |0.1146 - 0.1165
16 | 2.55 - 2.60 |0.1004 - 0.1024| 23 | 2.97 - 3.02 |0.1169 - 0.1189
14. INSTALL FIFTH GEAR AND OUTPUT SHAFT REAR BEARING
Using SST, install the 5th gear and rear bearing.
SST 09312-20011
15. INSTALL SNAP RING
Select a snap ring that will allow minimum axial play and install it on the shaft.
Mark | Thickness | mm (in.) | Mark | Thickness | mm (in.)
8 | 2.31 - 2.36 |0.0909 - 0.0929| 12 | 2.55 - 2.60 |0.1004 - 0.1024
9 | 2.37 - 2.42 |0.0933 - 0.0953| 13 | 2.61 - 2.66 |0.1028 - 0.1047
10 | 2.43 - 2.48 |0.0957 - 0.0976| 14 | 2.68 - 2.73 |0.1055 - 0.1075
11 | 2.49 - 2.54 |0.0980 - 0.1000| 15 | 2.74 - 2.79 |0.1079 - 0.1098
