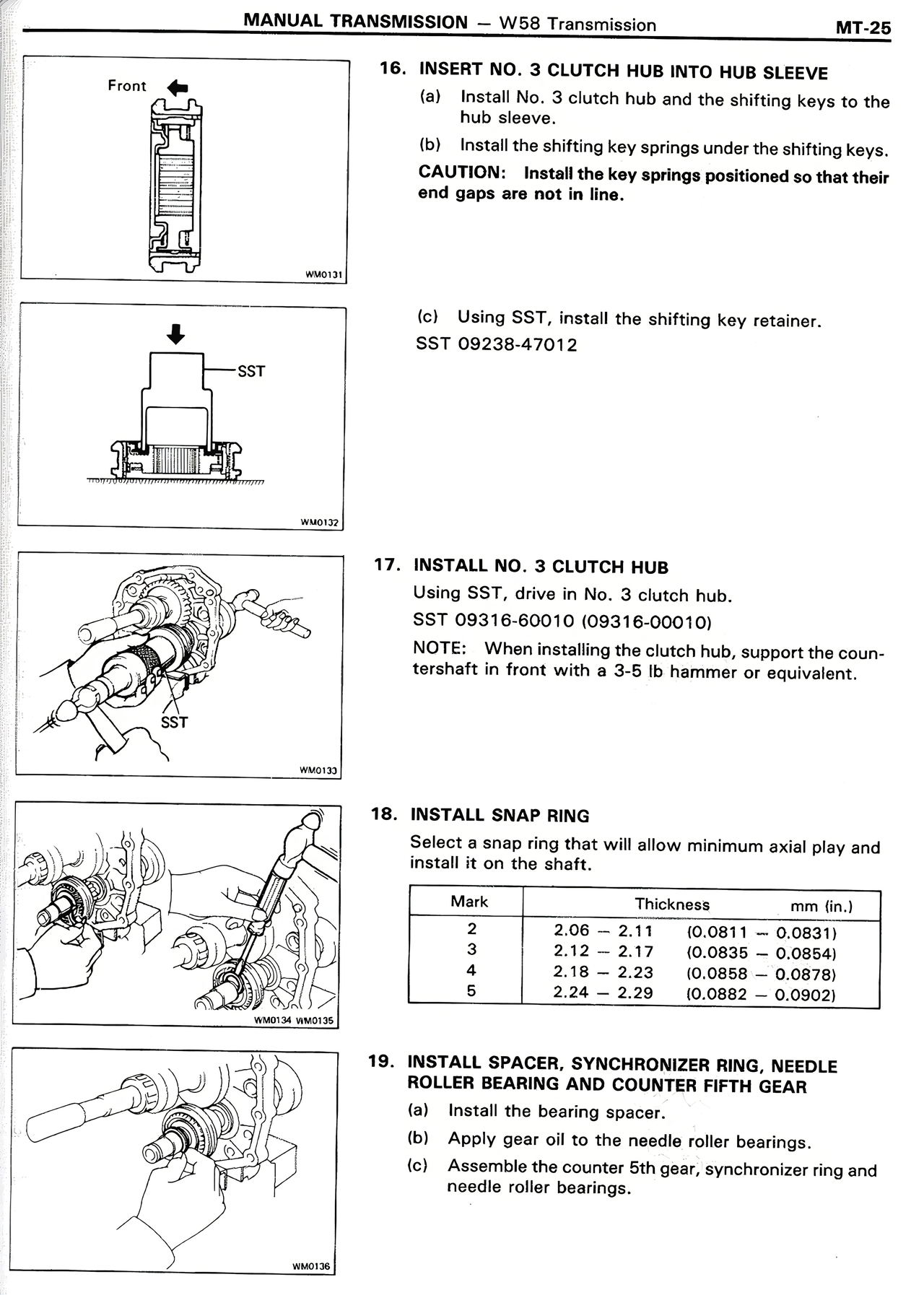

16. INSERT NO. 3 CLUTCH HUB INTO HUB SLEEVE (a) Install No. 3 clutch hub and the shifting keys to the hub sleeve. (b) Install the shifting key springs under the shifting keys. CAUTION: Install the key springs positioned so that their end gaps are not in line. (c) Using SST, install the shifting key retainer. SST 09238-47012 17. INSTALL NO. 3 CLUTCH HUB Using SST, drive in No. 3 clutch hub. SST 09316-60010 (09316-00010) NOTE: When installing the clutch hub, support the countershaft in front with a 3.5 lb hammer or equivalent. 18. INSTALL SNAP RING Select a snap ring which will allow minimum axial play and install it on the shaft. Mark Thickness mm (in.) 2 2.06 — 2.11 (0.0811 — 0.0831) 3 2.12 — 2.17 (0.0835 — 0.0854) 4 2.18 — 2.23 (0.0858 — 0.0878) 5 2.24 — 2.29 (0.0882 — 0.0902) 19. INSTALL SPACER, SYNCHRONIZER RING, NEEDLE ROLLER BEARING AND COUNTER FIFTH GEAR (a) Install the bearing spacer. (b) Apply gear oil to the needle roller bearings. (c) Assemble the counter 5th gear, synchronizer ring and needle roller bearings.
