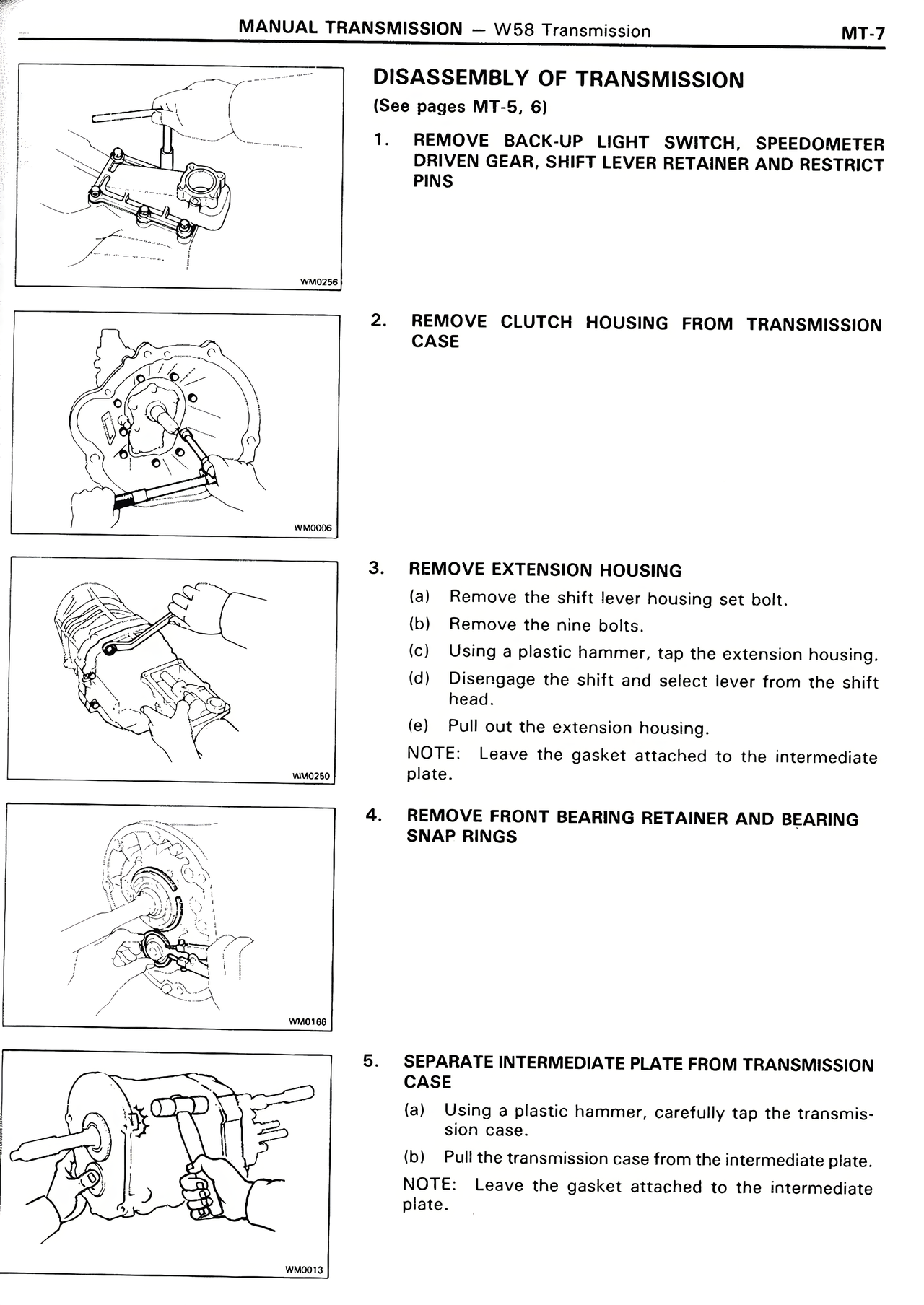

DISASSEMBLY OF TRANSMISSION
(See page MT-5, 6)
1. REMOVE BACK-UP LIGHT SWITCH, SPEEDOMETER DRIVEN GEAR, SHIFT LEVER RETAINER AND RESTRICT PINS
2. REMOVE CLUTCH HOUSING FROM TRANSMISSION CASE
3. REMOVE EXTENSION HOUSING
(a) Remove the shift lever housing set bolt.
(b) Remove the nine bolts.
(c) Using a plastic hammer, tap the extension housing.
(d) Disengage the shift and select lever from the shift head.
(e) Pull out the extension housing.
NOTE: Leave the gasket attached to the intermediate plate.
4. REMOVE FRONT BEARING RETAINER AND BEARING SNAP RINGS
5. SEPARATE INTERMEDIATE PLATE FROM TRANSMISSION CASE
(a) Using a plastic hammer, carefully tap the transmission case.
(b) Pull the transmission case from the intermediate plate.
NOTE: Leave the gasket attached to the intermediate plate.
