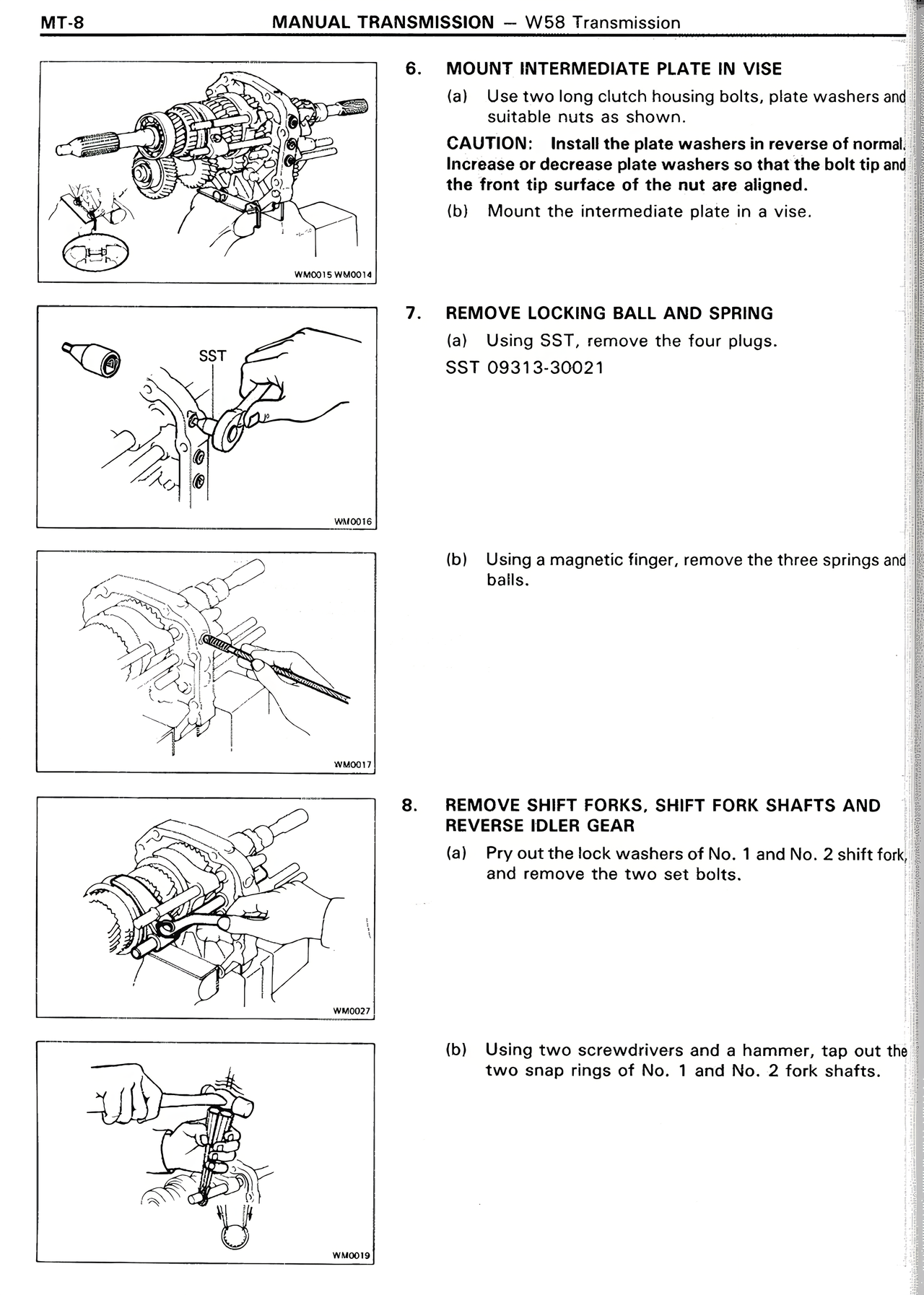

MT-8 MANUAL TRANSMISSION — W58 Transmission 6. MOUNT INTERMEDIATE PLATE IN VISE (a) Use two long clutch housing bolts, plate washers and suitable nuts as shown. CAUTION: Install the plate washers in reverse of normal. Increase or decrease plate washers so that the bolt tip and the front tip surface of the nut are aligned. (b) Mount the intermediate plate in a vise. RAM019 W58018 7. REMOVE LOCKING BALL AND SPRING (a) Using SST, remove the four plugs. SST 09313-30021 SST W00018 (b) Using a magnetic finger, remove the three springs and balls. W00017 8. REMOVE SHIFT FORKS, SHIFT FORK SHAFTS AND REVERSE IDLER GEAR (a) Pry out the lock washers of No. 1 and No. 2 shift fork, and remove the two set bolts. W00037 (b) Using two screwdrivers and a hammer, tap out the two snap rings of No. 1 and No. 2 fork shafts. W00019
