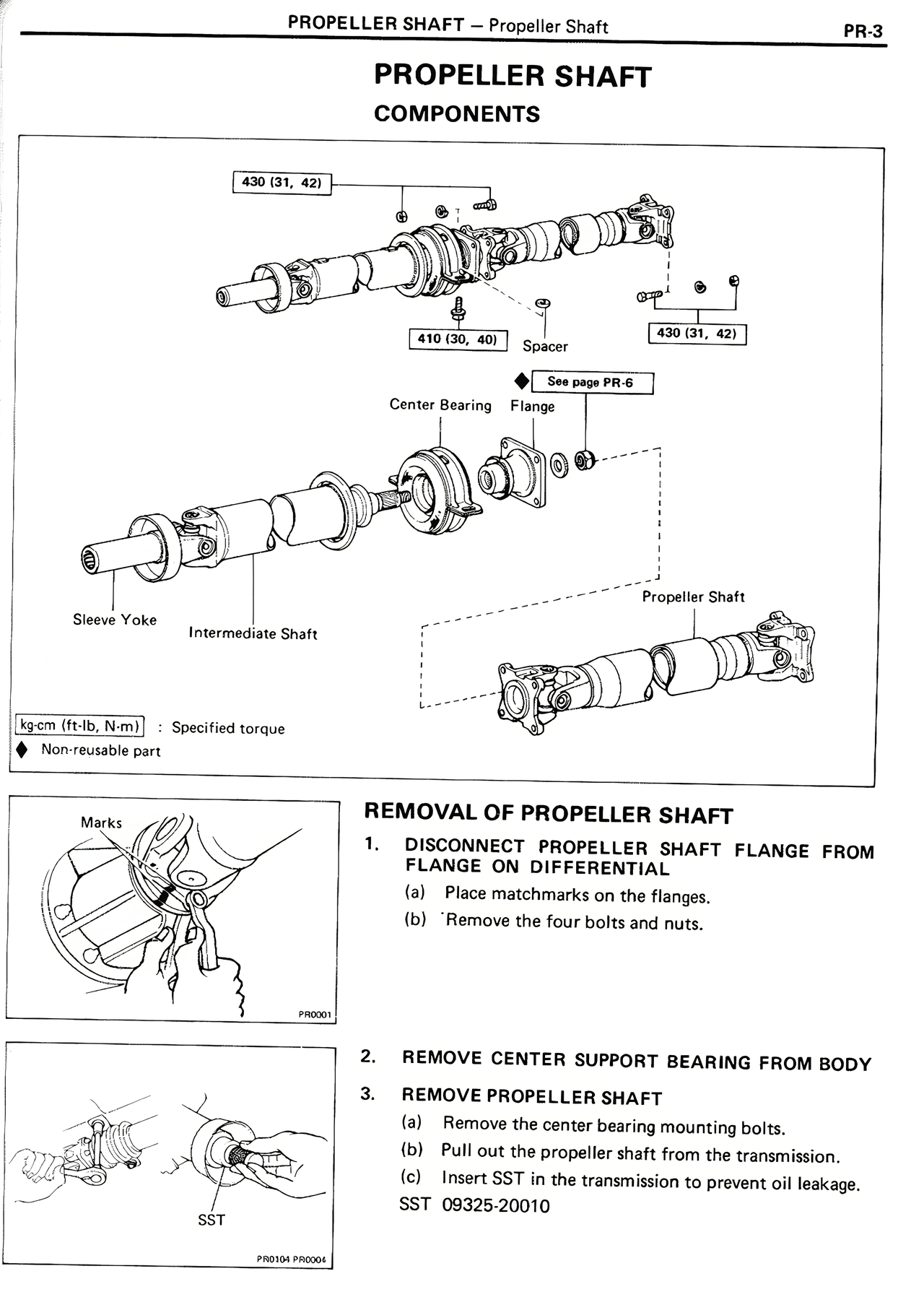

PROPELLER SHAFT COMPONENTS 430 [31, 42] 410 [30, 40] Spacer 430 [31, 42] See page PR-6 Center Bearing Flange Propeller Shaft Sleeve Yoke Intermediate Shaft kg·cm (ft·lb, N·m) : Specified torque ◆ Non-reusable part REMOVAL OF PROPELLER SHAFT 1. DISCONNECT PROPELLER SHAFT FLANGE FROM FLANGE ON DIFFERENTIAL (a) Place matchmarks on the flanges. (b) Remove the four bolts and nuts. Marks PR0001 2. REMOVE CENTER SUPPORT BEARING FROM BODY 3. REMOVE PROPELLER SHAFT (a) Remove the center bearing mounting bolts. (b) Pull out the propeller shaft from the transmission. (c) Insert SST in the transmission to prevent oil leakage. SST 09325-20010 SST PR0104 PR0004
