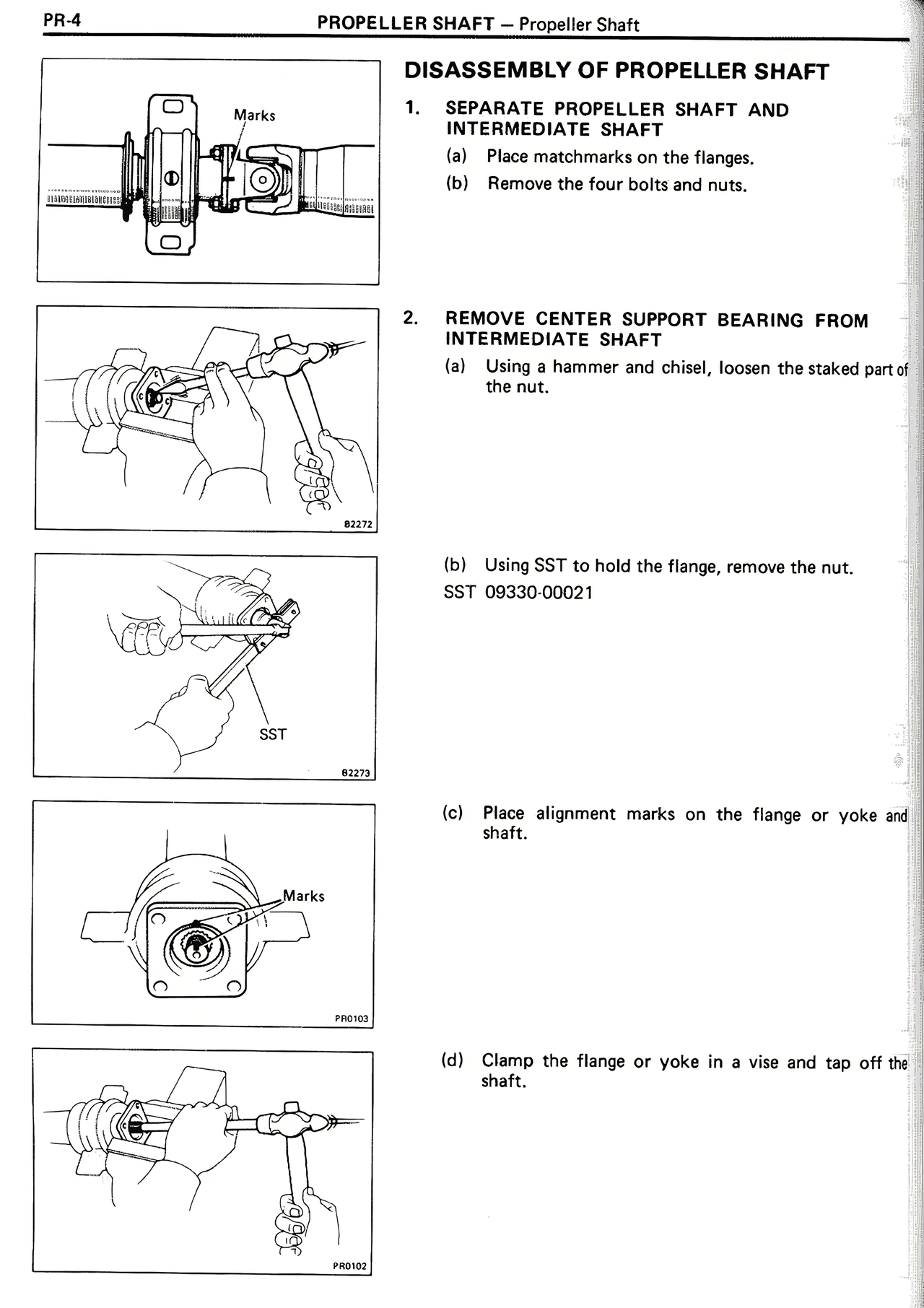

DISASSEMBLY OF PROPELLER SHAFT
1. SEPARATE PROPELLER SHAFT AND INTERMEDIATE SHAFT
(a) Place matchmarks on the flanges.
(b) Remove the four bolts and nuts.
2. REMOVE CENTER SUPPORT BEARING FROM INTERMEDIATE SHAFT
(a) Using a hammer and chisel, loosen the staked part of the nut.
(b) Using SST to hold the flange, remove the nut.
SST 09330 00021
(c) Place alignment marks on the flange or yoke and shaft.
(d) Clamp the flange or yoke in a vise and tap off the shaft.
