PROPELLER SHAFT — Propeller Shaft
PR-7

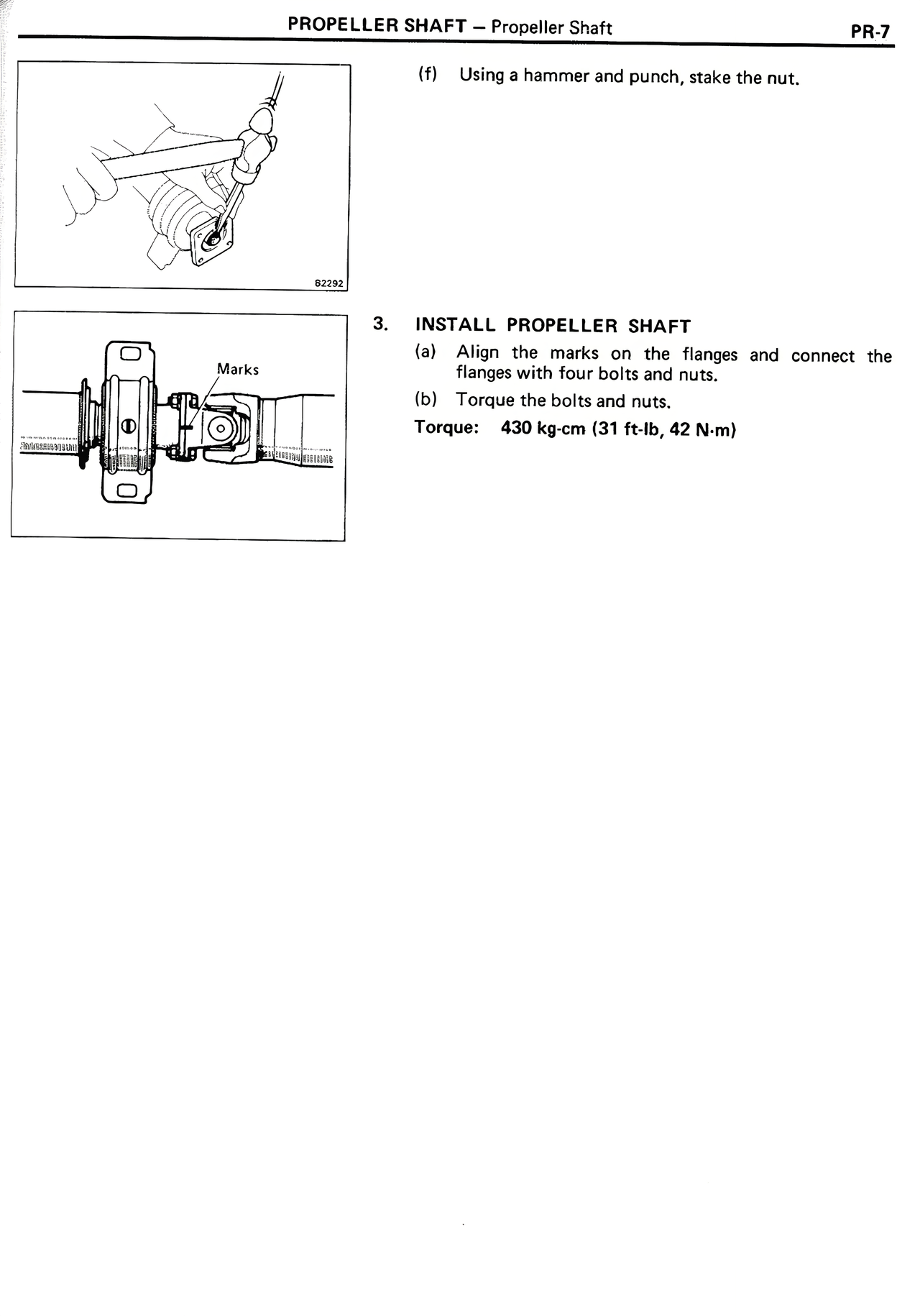

(f) Using a hammer and punch, stake the nut.
3. INSTALL PROPELLER SHAFT
(a) Align the marks on the flanges and connect the flanges with four bolts and nuts.
(b) Torque the bolts and nuts.
Torque: 430 kg-cm (31 ft-lb, 42 N-m)
Marks
