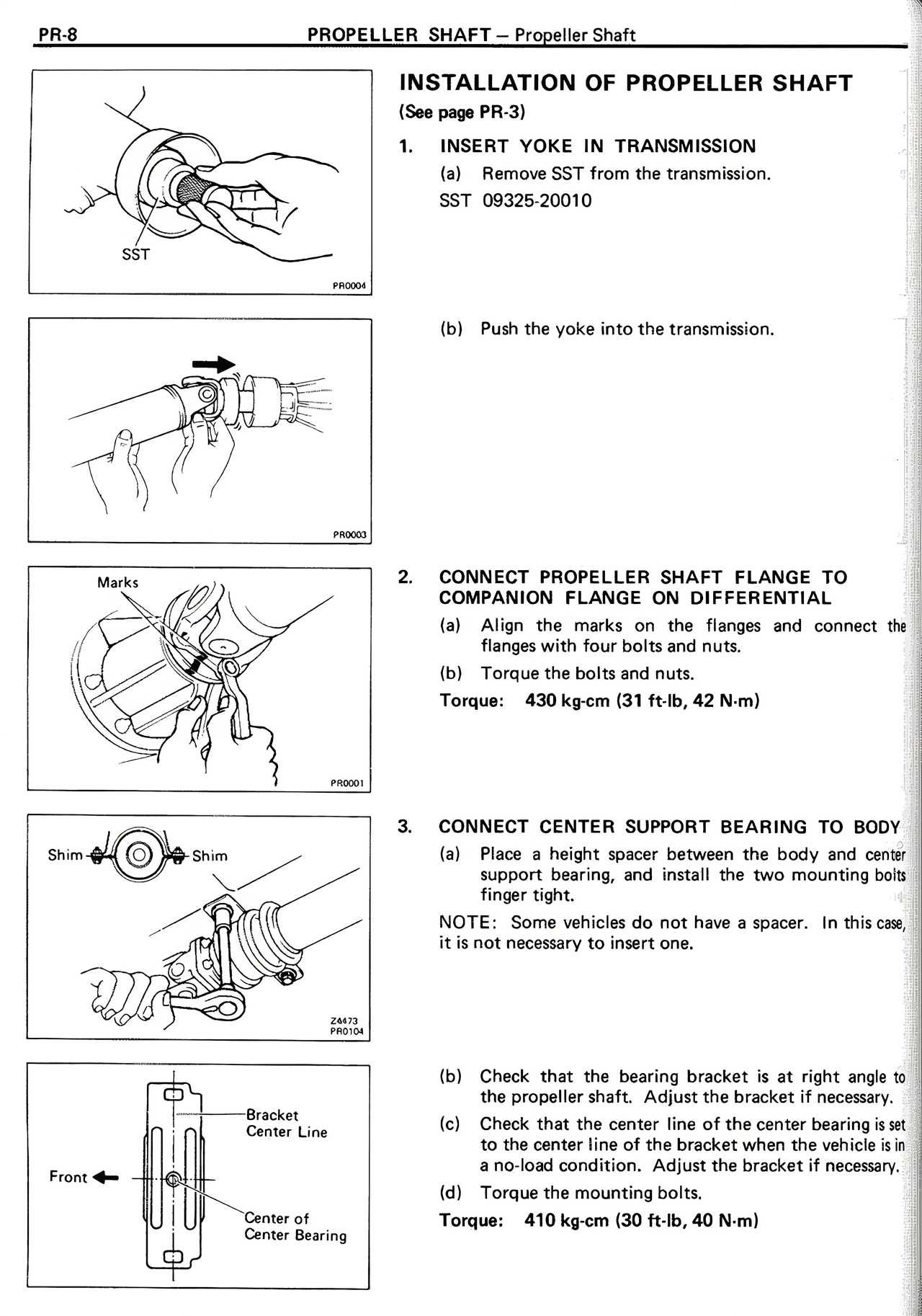

INSTALLATION OF PROPELLER SHAFT (See page PR-3) 1. INSERT YOKE IN TRANSMISSION (a) Remove SST from the transmission. SST 09325-20010 (b) Push the yoke into the transmission. 2. CONNECT PROPELLER SHAFT FLANGE TO COMPANION FLANGE ON DIFFERENTIAL (a) Align the marks on the flanges and connect the flanges with four bolts and nuts. (b) Torque the bolts and nuts. Torque: 430 kg-cm (31 ft-lb, 42 N-m) 3. CONNECT CENTER SUPPORT BEARING TO BODY (a) Place a height spacer between the body and center support bearing, and install the two mounting bolts finger tight. NOTE: Some vehicles do not have a spacer. In this case, it is not necessary to insert one. (b) Check that the bearing bracket is at right angle to the propeller shaft. Adjust the bracket if necessary. (c) Check that the center line of the center bearing is set to the center line of the bracket when the vehicle is in a no-load condition. Adjust the bracket if necessary. (d) Torque the mounting bolts. Torque: 410 kg-cm (30 ft-lb, 40 N-m)
