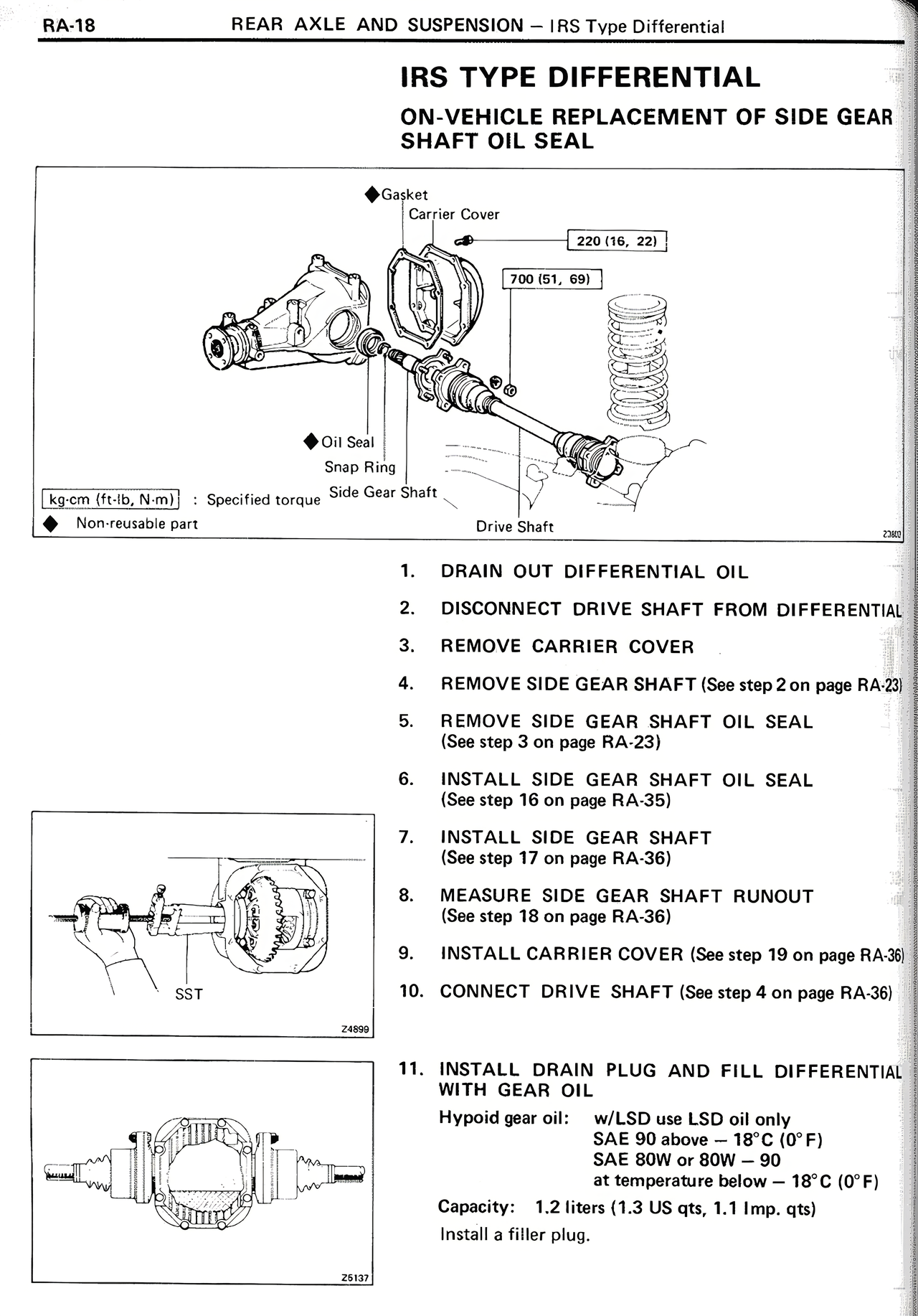

RA-18 REAR AXLE AND SUSPENSION — IRS Type Differential IRS TYPE DIFFERENTIAL ON-VEHICLE REPLACEMENT OF SIDE GEAR SHAFT OIL SEAL ◆Gasket Carrier Cover 220 (16, 22) 700 (51, 69) ◆Oil Seal Snap Ring kg·cm (ft·lb, N·m) : Specified torque Side Gear Shaft ◆ Non-reusable part Drive Shaft 1. DRAIN OUT DIFFERENTIAL OIL 2. DISCONNECT DRIVE SHAFT FROM DIFFERENTIAL 3. REMOVE CARRIER COVER 4. REMOVE SIDE GEAR SHAFT (See step 2 on page RA-23) 5. REMOVE SIDE GEAR SHAFT OIL SEAL (See step 3 on page RA-23) 6. INSTALL SIDE GEAR SHAFT OIL SEAL (See step 16 on page RA-35) 7. INSTALL SIDE GEAR SHAFT (See step 17 on page RA-36) 8. MEASURE SIDE GEAR SHAFT RUNOUT (See step 18 on page RA-36) 9. INSTALL CARRIER COVER (See step 19 on page RA-36) 10. CONNECT DRIVE SHAFT (See step 4 on page RA-38) SST 11. INSTALL DRAIN PLUG AND FILL DIFFERENTIAL WITH GEAR OIL Hypoid gear oil: w/LSD use LSD oil only SAE 90 above — 18°C (0°F) SAE 80W or 80W — 90 at temperature below — 18°C (0°F) Capacity: 1.2 liters (1.3 US qts, 1.1 Imp. qts) Install a filler plug.
