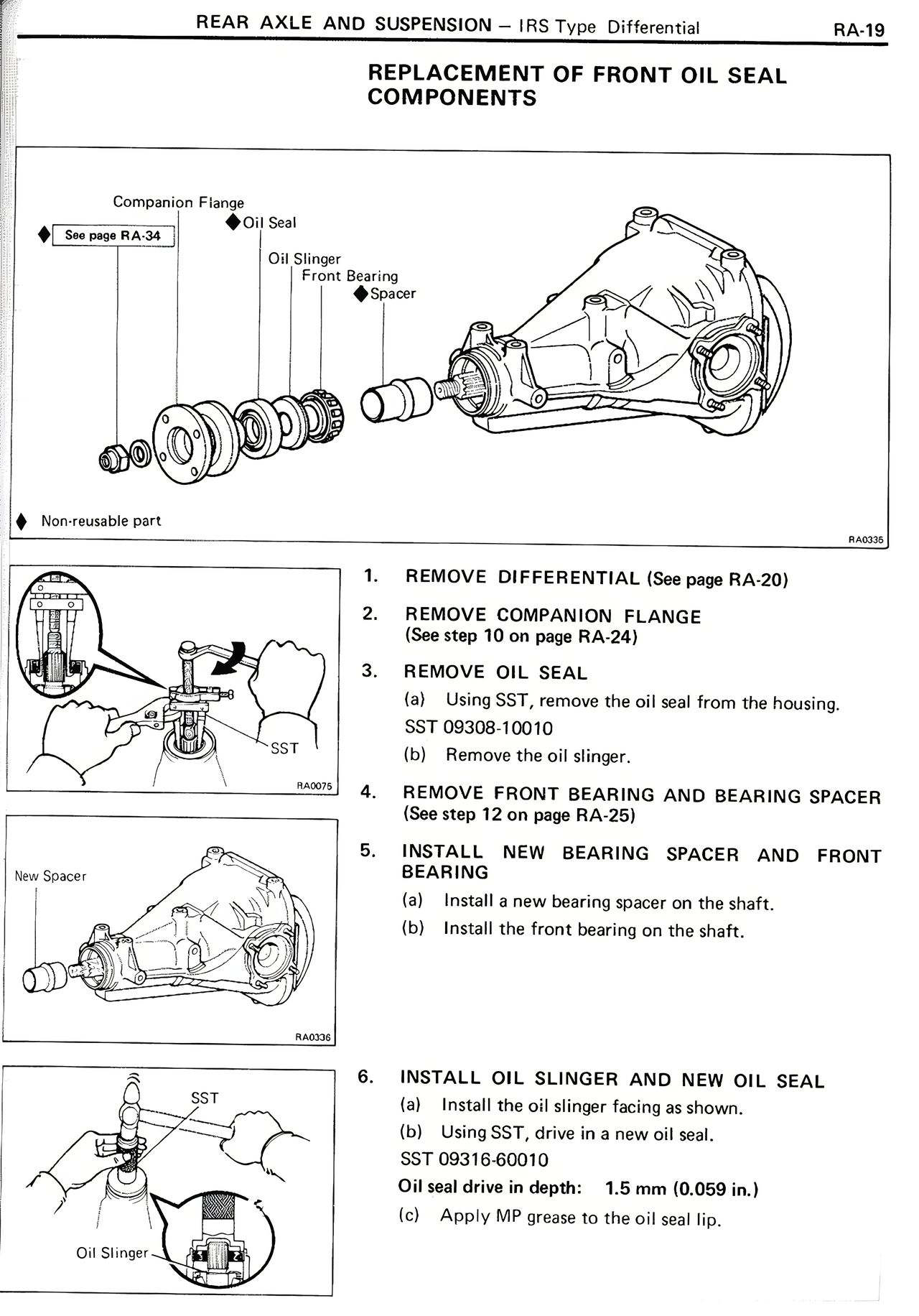

REAR AXLE AND SUSPENSION — IRS Type Differential REPLACEMENT OF FRONT OIL SEAL COMPONENTS Companion Flange See page RA-34 Oil Seal Oil Slinger Front Bearing Spacer Non-reusable part RA003B 1. REMOVE DIFFERENTIAL (See page RA-20) 2. REMOVE COMPANION FLANGE (See step 10 on page RA-24) 3. REMOVE OIL SEAL (a) Using SST, remove the oil seal from the housing. SST 09308-10010 (b) Remove the oil slinger. SST RA007B 4. REMOVE FRONT BEARING AND BEARING SPACER (See step 12 on page RA-25) 5. INSTALL NEW BEARING SPACER AND FRONT BEARING (a) Install a new bearing spacer on the shaft. (b) Install the front bearing on the shaft. New Spacer RA043B 6. INSTALL OIL SLINGER AND NEW OIL SEAL (a) Install the oil slinger facing as shown. (b) Using SST, drive in a new oil seal. SST 09316-60010 Oil seal drive in depth: 1.5 mm (0.059 in.) (c) Apply MP grease to the oil seal lip. SST Oil Slinger
