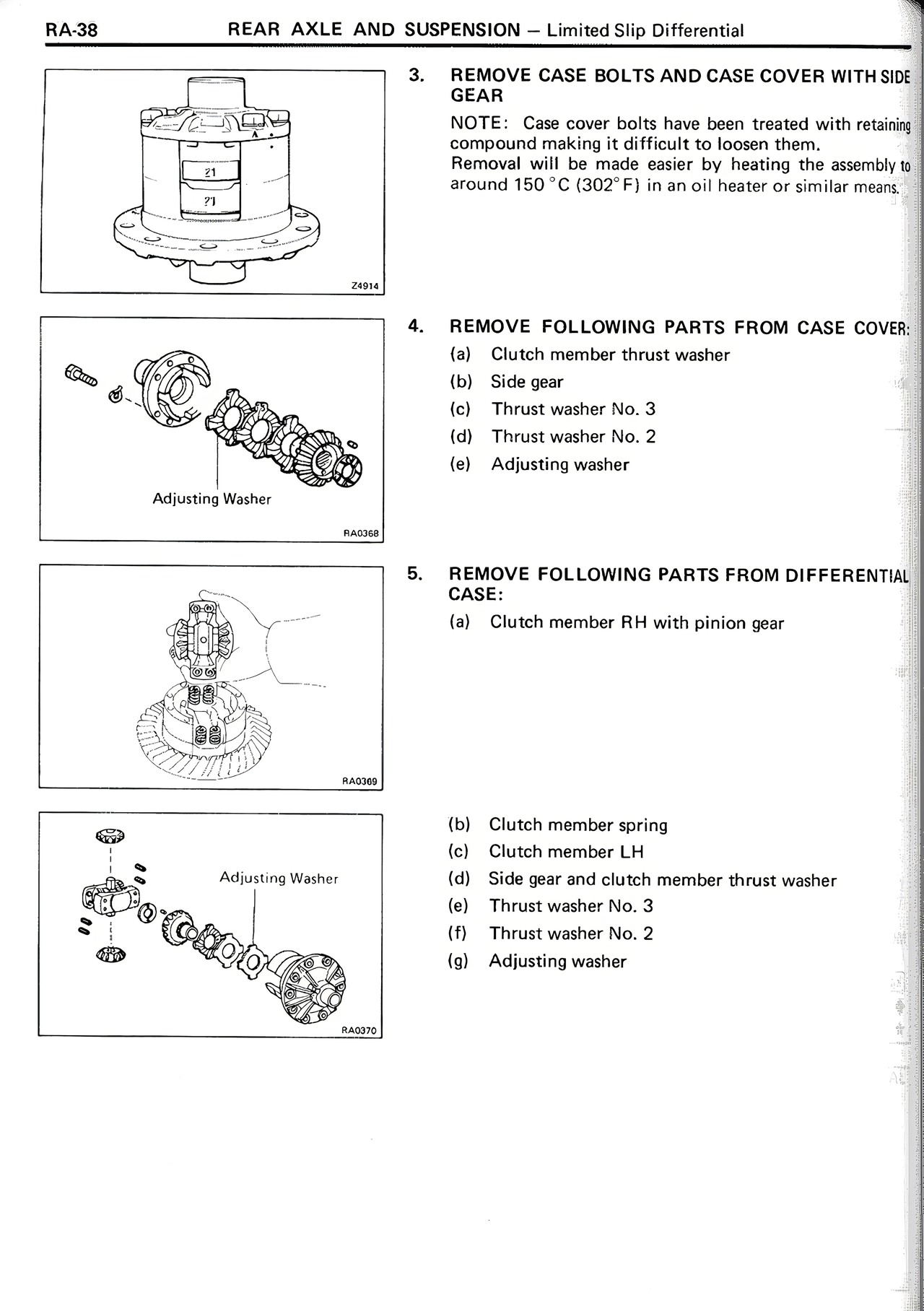

RA-38 REAR AXLE AND SUSPENSION — Limited Slip Differential
3. REMOVE CASE BOLTS AND CASE COVER WITH SIDE GEAR
NOTE: Case cover bolts have been treated with retaining compound making it difficult to loosen them. Removal will be made easier by heating the assembly to around 150°C (302°F) in an oil heater or similar means.
4. REMOVE FOLLOWING PARTS FROM CASE COVER:
(a) Clutch member thrust washer
(b) Side gear
(c) Thrust washer No. 3
(d) Thrust washer No. 2
(e) Adjusting washer
5. REMOVE FOLLOWING PARTS FROM DIFFERENTIAL CASE:
(a) Clutch member RH with pinion gear
(b) Clutch member spring
(c) Clutch member LH
(d) Side gear and clutch member thrust washer
(e) Thrust washer No. 3
(f) Thrust washer No. 2
(g) Adjusting washer
