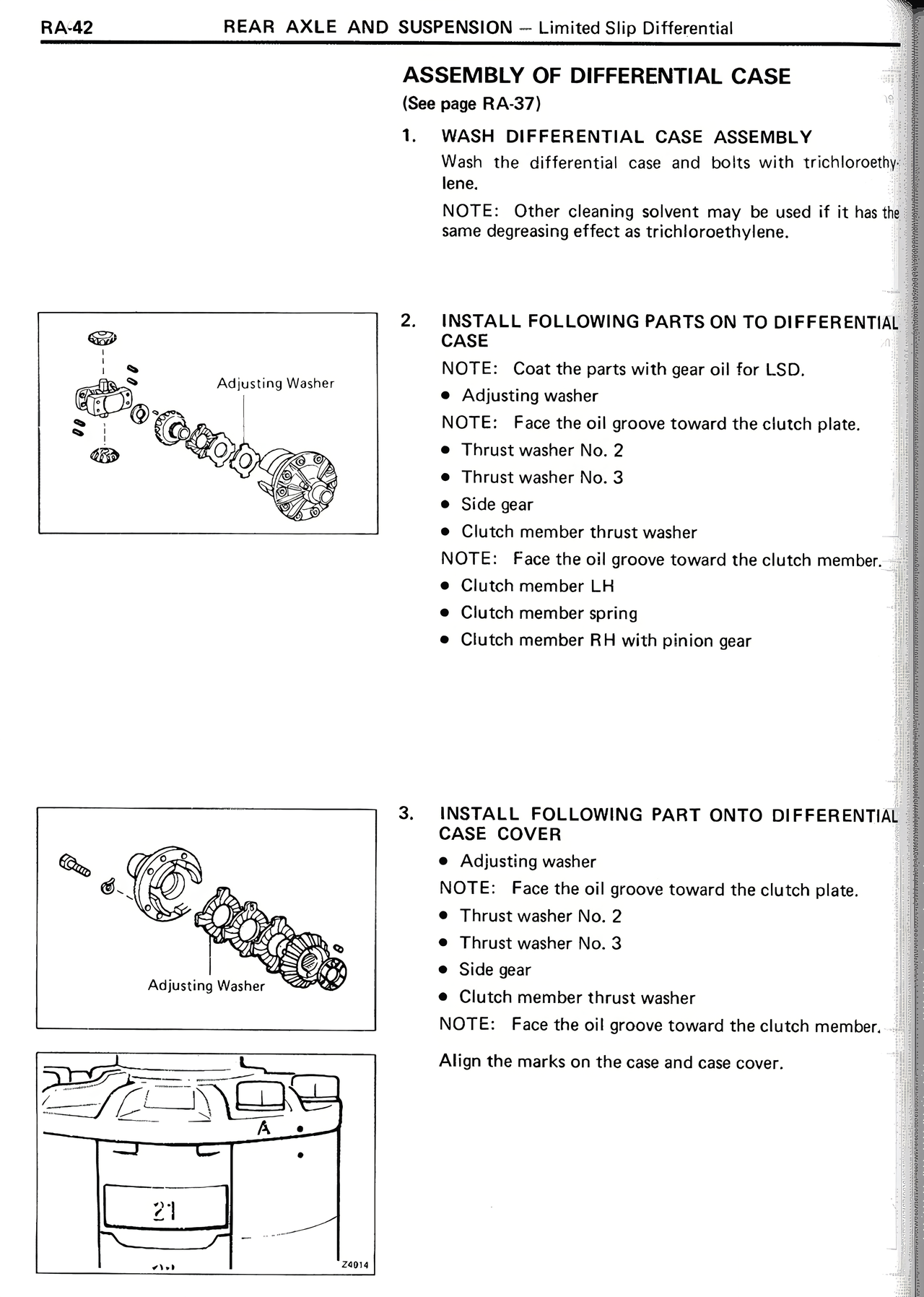

ASSEMBLY OF DIFFERENTIAL CASE (See page RA-37) 1. WASH DIFFERENTIAL CASE ASSEMBLY Wash the differential case and bolts with trichloroethylene. NOTE: Other cleaning solvent may be used if it has the same degreasing effect as trichloroethylene. 2. INSTALL FOLLOWING PARTS ON TO DIFFERENTIAL CASE NOTE: Coat the parts with gear oil for LSD. • Adjusting washer NOTE: Face the oil groove toward the clutch plate. • Thrust washer No. 2 • Thrust washer No. 3 • Side gear • Clutch member thrust washer NOTE: Face the oil groove toward the clutch member. • Clutch member LH • Clutch member spring • Clutch member RH with pinion gear 3. INSTALL FOLLOWING PART ONTO DIFFERENTIAL CASE COVER • Adjusting washer NOTE: Face the oil groove toward the clutch plate. • Thrust washer No. 2 • Thrust washer No. 3 • Side gear • Clutch member thrust washer NOTE: Face the oil groove toward the clutch member. Align the marks on the case and case cover.
