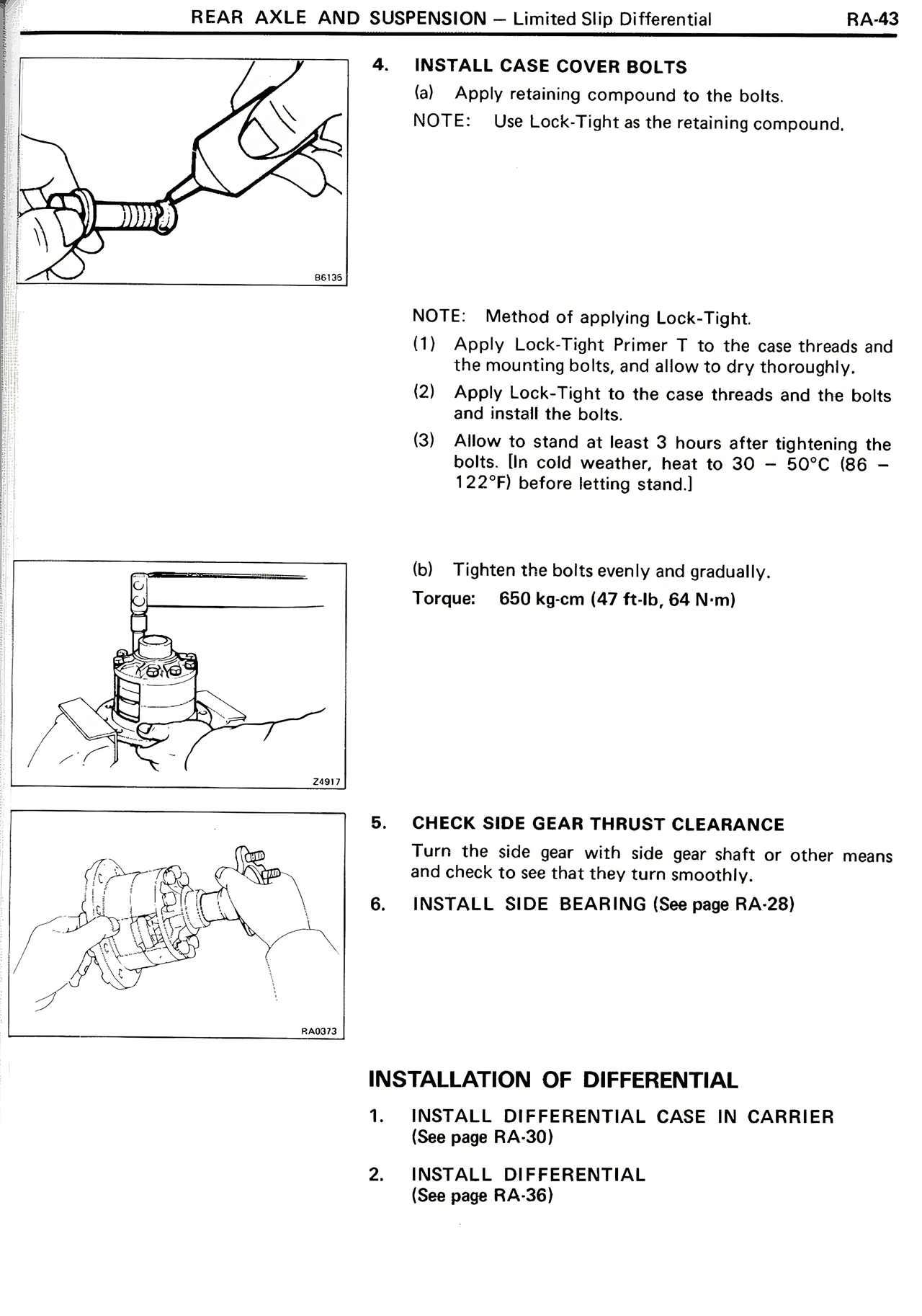

4. INSTALL CASE COVER BOLTS
(a) Apply retaining compound to the bolts.
NOTE: Use Lock-Tight as the retaining compound.
NOTE: Method of applying Lock-Tight
(1) Apply Lock-Tight Primer T to the case threads and the mounting bolts, and allow to dry thoroughly.
(2) Apply Lock-Tight to the case threads and the bolts and install the bolts.
(3) Allow to stand at least 3 hours after tightening the bolts. [In cold weather, heat to 30 — 50°C (86 — 122°F) before letting stand.]
(b) Tighten the bolts evenly and gradually.
Torque: 650 kg-cm (47 ft-lb, 64 N·m)
5. CHECK SIDE GEAR THRUST CLEARANCE
Turn the side gear with side gear shaft or other means and check to see that they turn smoothly.
6. INSTALL SIDE BEARING (See page RA-28)
INSTALLATION OF DIFFERENTIAL
1. INSTALL DIFFERENTIAL CASE IN CARRIER
(See page RA-30)
2. INSTALL DIFFERENTIAL
(See page RA-36)
