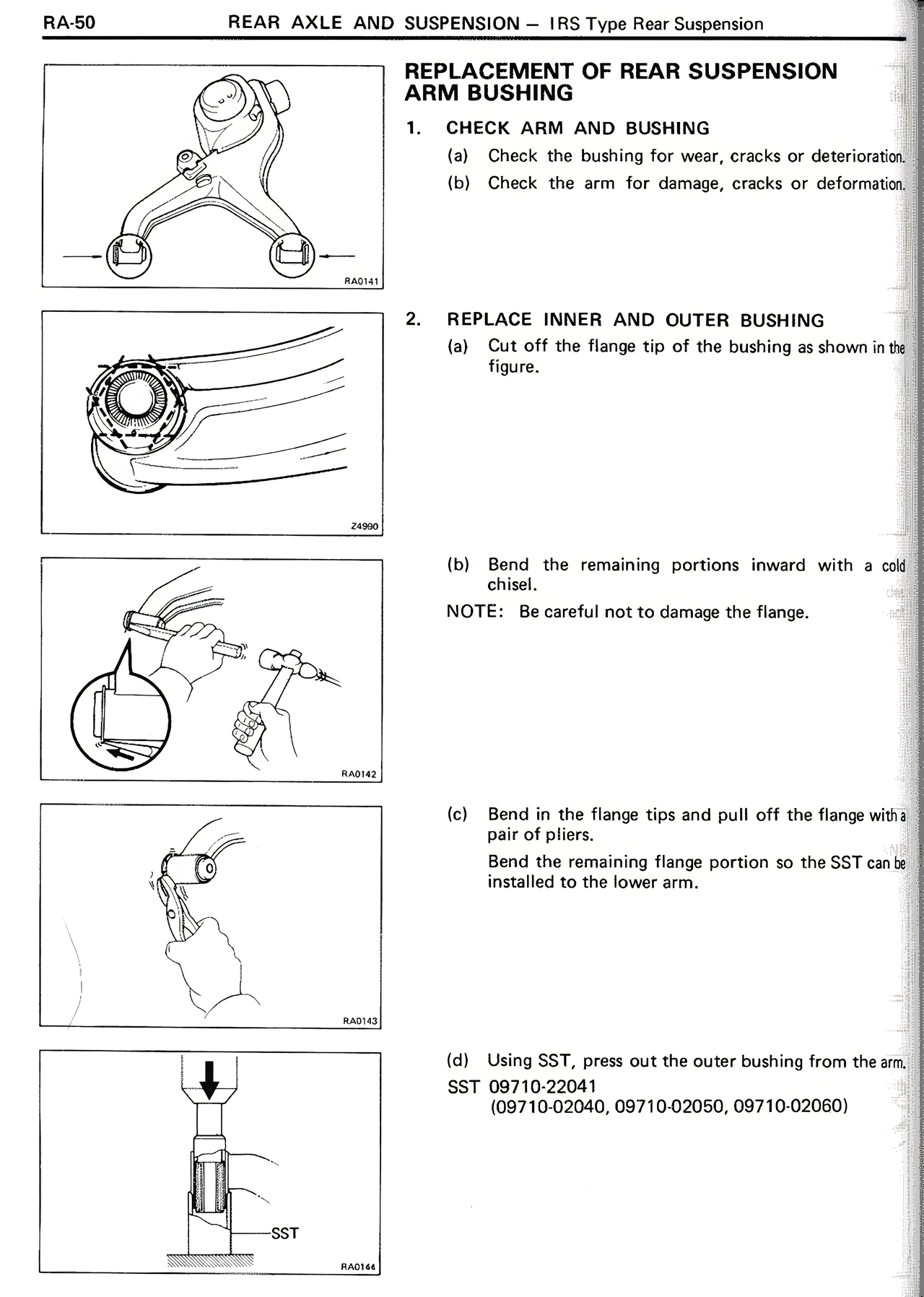

REPLACEMENT OF REAR SUSPENSION
ARM BUSHING
1. CHECK ARM AND BUSHING
(a) Check the bushing for wear, cracks or deterioration.
(b) Check the arm for damage, cracks or deformation.
2. REPLACE INNER AND OUTER BUSHING
(a) Cut off the flange tip of the bushing as shown in the
figure.
(b) Bend the remaining portions inward with a cold
chisel.
NOTE: Be careful not to damage the flange.
(c) Bend in the flange tips and pull off the flange with a
pair of pliers.
Bend the remaining flange portion so the SST can be
installed to the lower arm.
(d) Using SST, press out the outer bushing from the arm.
SST 09710-22041
(09710-02040, 09710-02050, 09710-02060)
