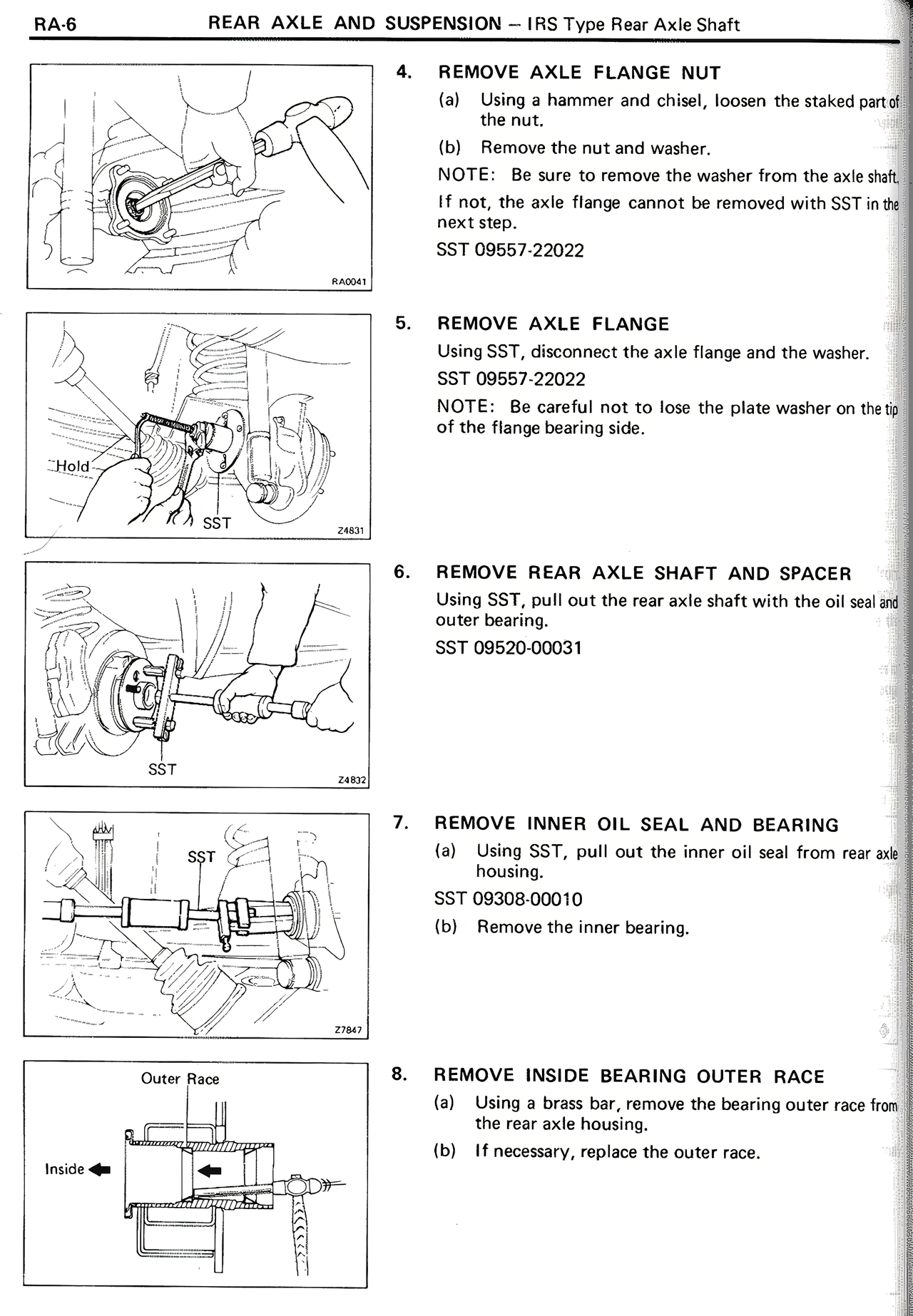

RA-6 REAR AXLE AND SUSPENSION - IRS Type Rear Axle Shaft
4. REMOVE AXLE FLANGE NUT
(a) Using a hammer and chisel, loosen the staked part of the nut.
(b) Remove the nut and washer.
NOTE: Be sure to remove the washer from the axle shaft. If not, the axle flange cannot be removed with SST in the next step.
SST 09557-22022
5. REMOVE AXLE FLANGE
Using SST, disconnect the axle flange and the washer.
SST 09557-22022
NOTE: Be careful not to lose the plate washer on the tip of the flange bearing side.
Hold
SST
6. REMOVE REAR AXLE SHAFT AND SPACER
Using SST, pull out the rear axle shaft with the oil seal and outer bearing.
SST 09520-00031
SST
7. REMOVE INNER OIL SEAL AND BEARING
(a) Using SST, pull out the inner oil seal from rear axle housing.
SST 09308-00010
(b) Remove the inner bearing.
SST
8. REMOVE INSIDE BEARING OUTER RACE
(a) Using a brass bar, remove the bearing outer race from the rear axle housing.
(b) If necessary, replace the outer race.
Outer Race
Inside
