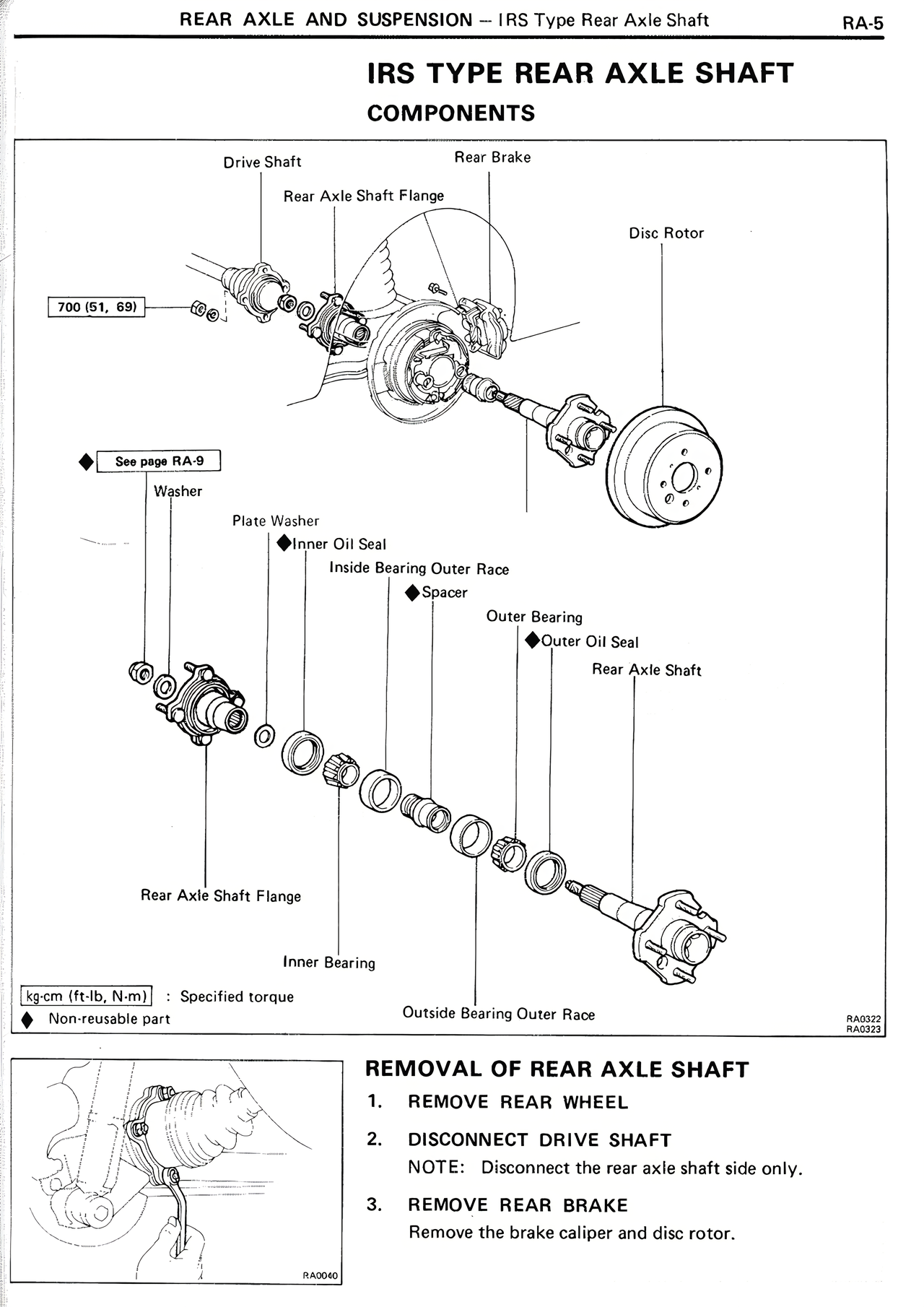

IRS TYPE REAR AXLE SHAFT
COMPONENTS
Drive Shaft
Rear Brake
Rear Axle Shaft Flange
Disc Rotor
700 (51, 69)
See page RA-9
Washer
Plate Washer
Inner Oil Seal
Inside Bearing Outer Race
Spacer
Outer Bearing
Outer Oil Seal
Rear Axle Shaft
Rear Axle Shaft Flange
Inner Bearing
Outside Bearing Outer Race
kg-cm (ft-lb, N-m) : Specified torque
Non-reusable part
REMOVAL OF REAR AXLE SHAFT
1. REMOVE REAR WHEEL
2. DISCONNECT DRIVE SHAFT
NOTE: Disconnect the rear axle shaft side only.
3. REMOVE REAR BRAKE
Remove the brake caliper and disc rotor.
