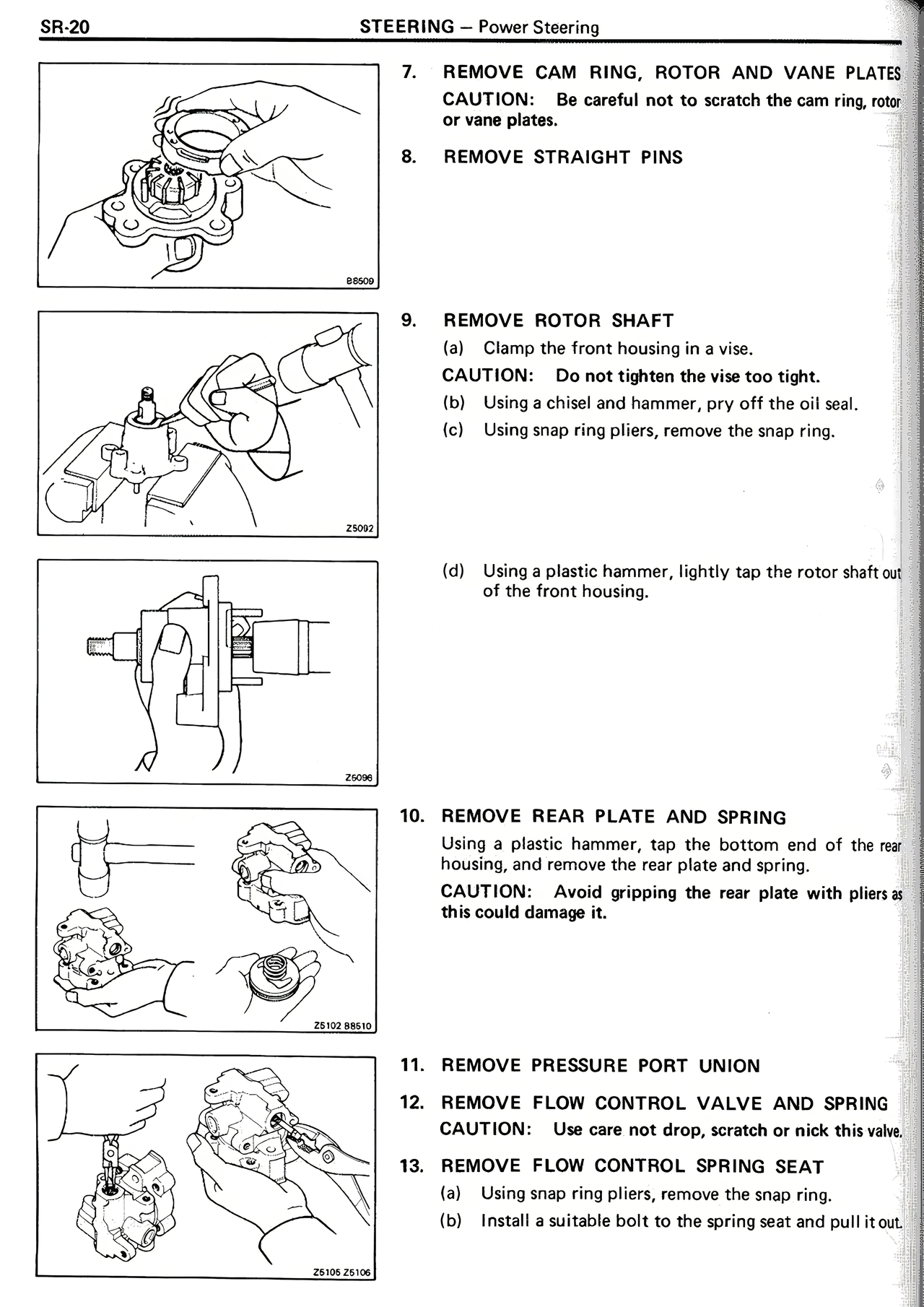

SR-20 STEERING — Power Steering 7. REMOVE CAM RING, ROTOR AND VANE PLATES CAUTION: Be careful not to scratch the cam ring, rotor or vane plates. 8. REMOVE STRAIGHT PINS 9. REMOVE ROTOR SHAFT (a) Clamp the front housing in a vise. CAUTION: Do not tighten the vise too tight. (b) Using a chisel and hammer, pry off the oil seal. (c) Using snap ring pliers, remove the snap ring. (d) Using a plastic hammer, lightly tap the rotor shaft out of the front housing. 10. REMOVE REAR PLATE AND SPRING Using a plastic hammer, tap the bottom end of the rear housing, and remove the rear plate and spring. CAUTION: Avoid gripping the rear plate with pliers as this could damage it. 11. REMOVE PRESSURE PORT UNION 12. REMOVE FLOW CONTROL VALVE AND SPRING CAUTION: Use care not to drop, scratch or nick this valve. 13. REMOVE FLOW CONTROL SPRING SEAT (a) Using snap ring pliers, remove the snap ring. (b) Install a suitable bolt to the spring seat and pull it out.
