Steering page 3

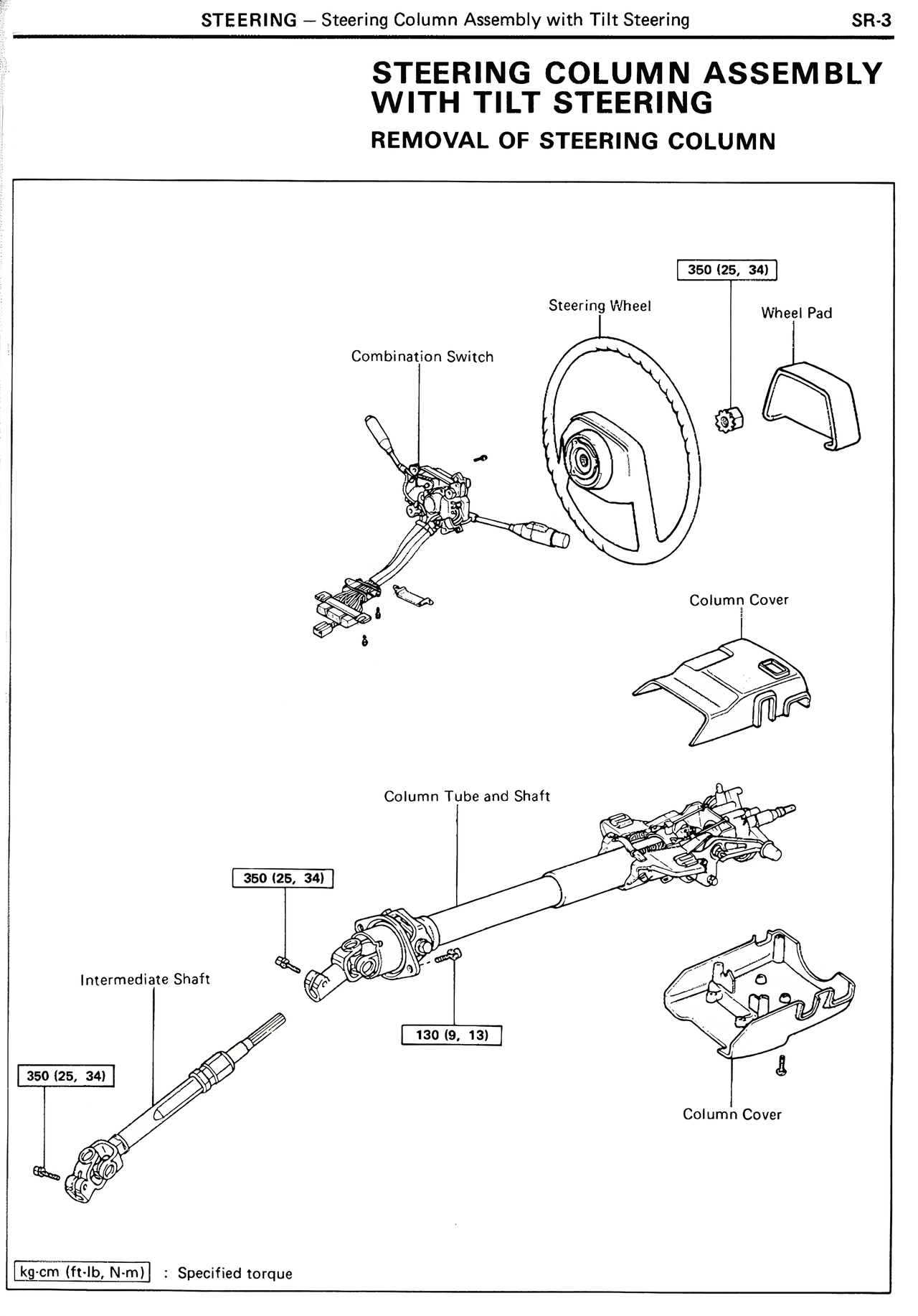

STEERING COLUMN ASSEMBLY WITH TILT STEERING REMOVAL OF STEERING COLUMN 350 (25, 34) Steering Wheel Wheel Pad Combination Switch Column Cover Column Tube and Shaft 350 (25, 34) Intermediate Shaft 130 (9, 13) 350 (25, 34) Column Cover kg·cm {ft·lb, N·m} : Specified torque
