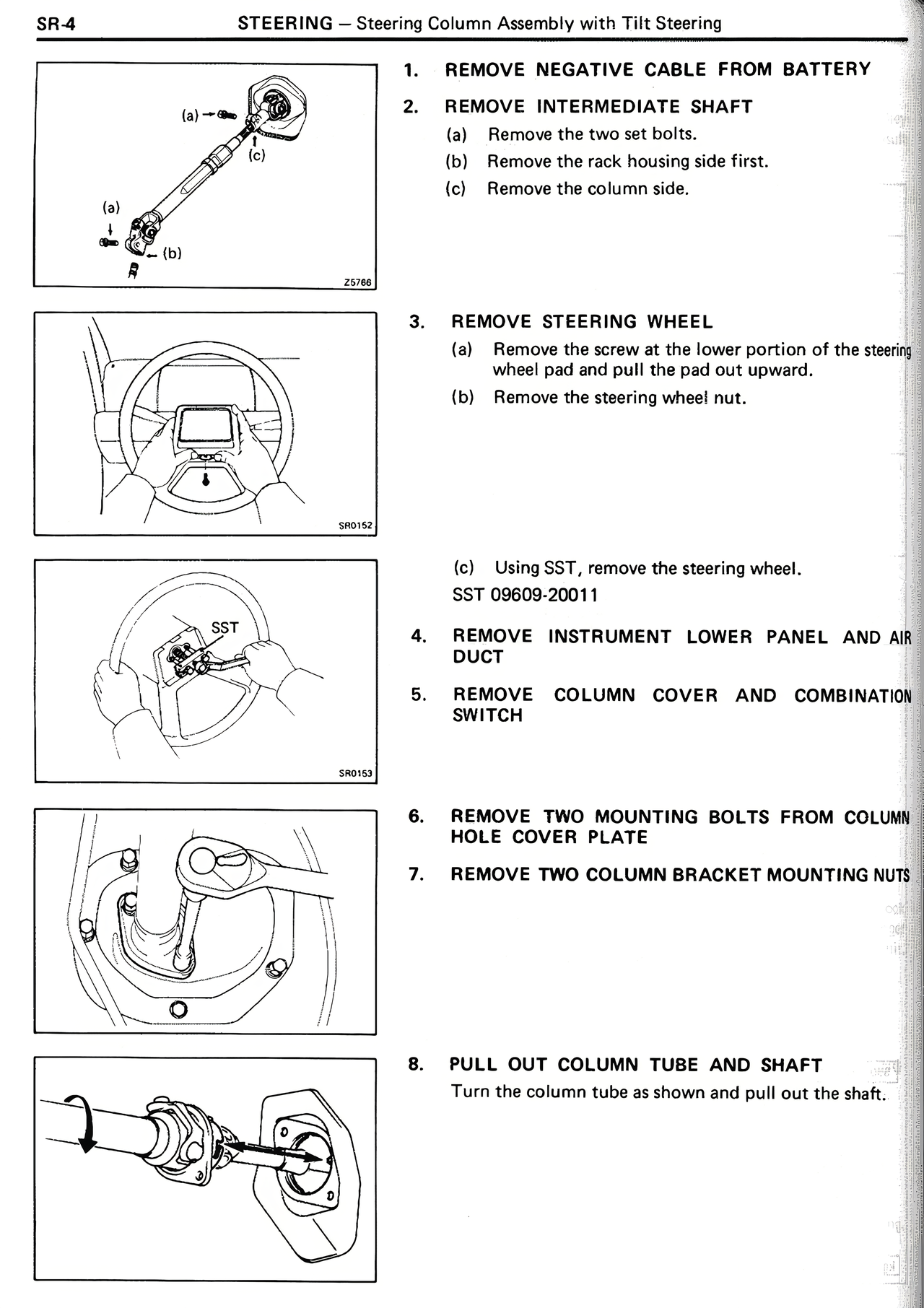

SR-4 STEERING — Steering Column Assembly with Tilt Steering
1. REMOVE NEGATIVE CABLE FROM BATTERY
2. REMOVE INTERMEDIATE SHAFT
(a) Remove the two set bolts.
(b) Remove the rack housing side first.
(c) Remove the column side.
3. REMOVE STEERING WHEEL
(a) Remove the screw at the lower portion of the steering wheel pad and pull the pad out upward.
(b) Remove the steering wheel nut.
(c) Using SST, remove the steering wheel.
SST 09609-20011
4. REMOVE INSTRUMENT LOWER PANEL AND AIR DUCT
5. REMOVE COLUMN COVER AND COMBINATION SWITCH
6. REMOVE TWO MOUNTING BOLTS FROM COLUMN HOLE COVER PLATE
7. REMOVE TWO COLUMN BRACKET MOUNTING NUTS
8. PULL OUT COLUMN TUBE AND SHAFT
Turn the column tube as shown and pull out the shaft.
