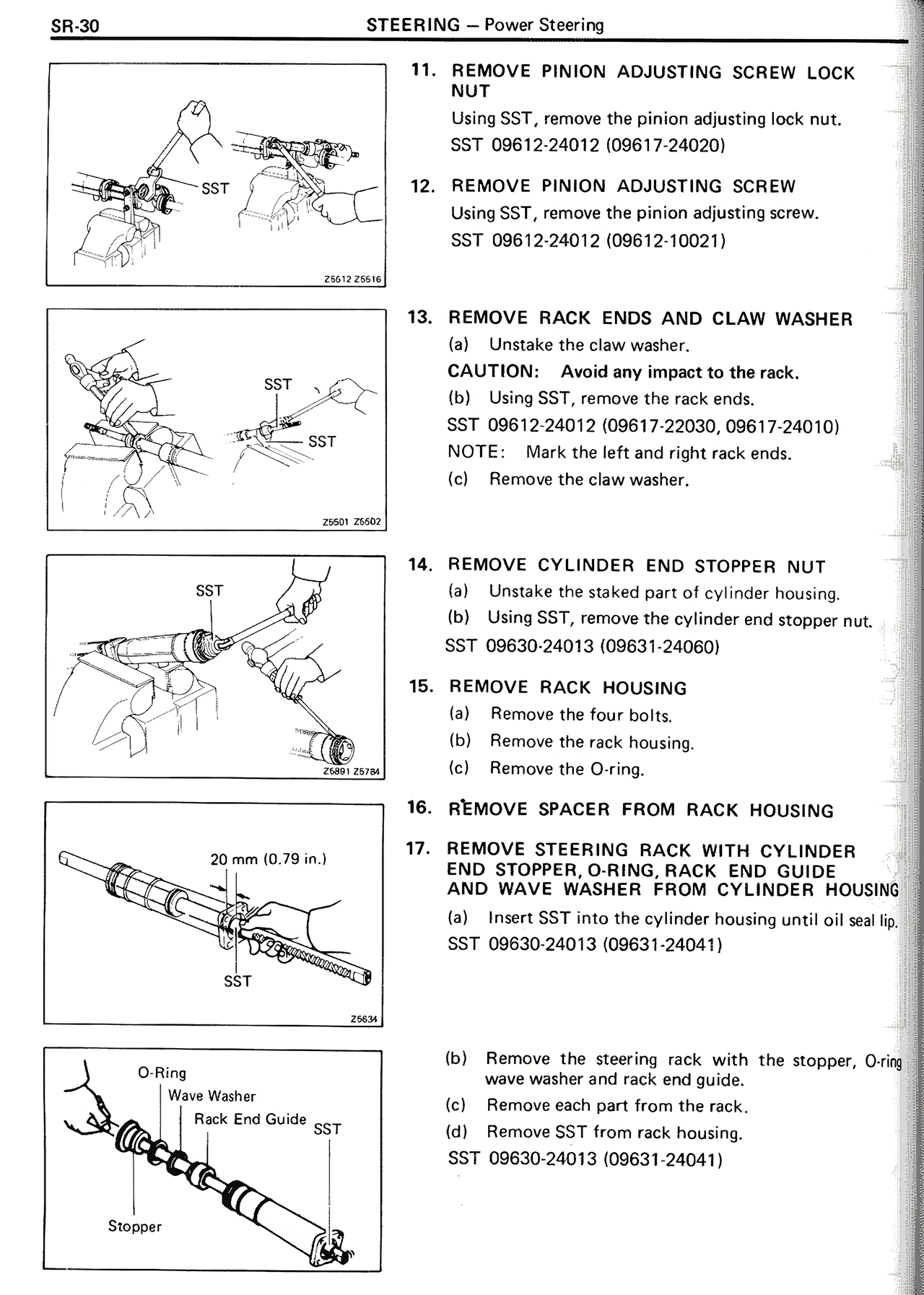

SR-30 STEERING — Power Steering
11. REMOVE PINION ADJUSTING SCREW LOCK NUT
Using SST, remove the pinion adjusting lock nut.
SST 09612-24012 (09617-24020)
12. REMOVE PINION ADJUSTING SCREW
Using SST, remove the pinion adjusting screw.
SST 09612-24012 (09612-10021)
13. REMOVE RACK ENDS AND CLAW WASHER
(a) Unstake the claw washer.
CAUTION: Avoid any impact to the rack.
(b) Using SST, remove the rack ends.
SST 09612-24012 (09617-22030, 09617-24010)
NOTE: Mark the left and right rack ends.
(c) Remove the claw washer.
14. REMOVE CYLINDER END STOPPER NUT
(a) Unstake the staked part of cylinder housing.
(b) Using SST, remove the cylinder end stopper nut.
SST 09630-24013 (09631-24060)
15. REMOVE RACK HOUSING
(a) Remove the four bolts.
(b) Remove the rack housing.
(c) Remove the O-ring.
16. REMOVE SPACER FROM RACK HOUSING
17. REMOVE STEERING RACK WITH CYLINDER END STOPPER, O-RING, RACK END GUIDE AND WAVE WASHER FROM CYLINDER HOUSING
(a) Insert SST into the cylinder housing until oil seal lip.
SST 09630-24013 (09631-24041)
(b) Remove the steering rack with the stopper, O-ring wave washer and rack end guide.
(c) Remove each part from the rack.
(d) Remove SST from rack housing.
SST 09630-24013 (09631-24041)
[DIAGRAMS SHOW:]
- SST tool removing pinion adjusting screw lock nut (23021-25048)
- SST tool removing rack ends and claw washer (25001-25002)
- SST tool removing cylinder end stopper nut (23011-25046)
- 20 mm (0.79 in.) spacer removal with SST (23434)
- O Ring, Wave Washer, Rack End Guide, SST, and Stopper components
