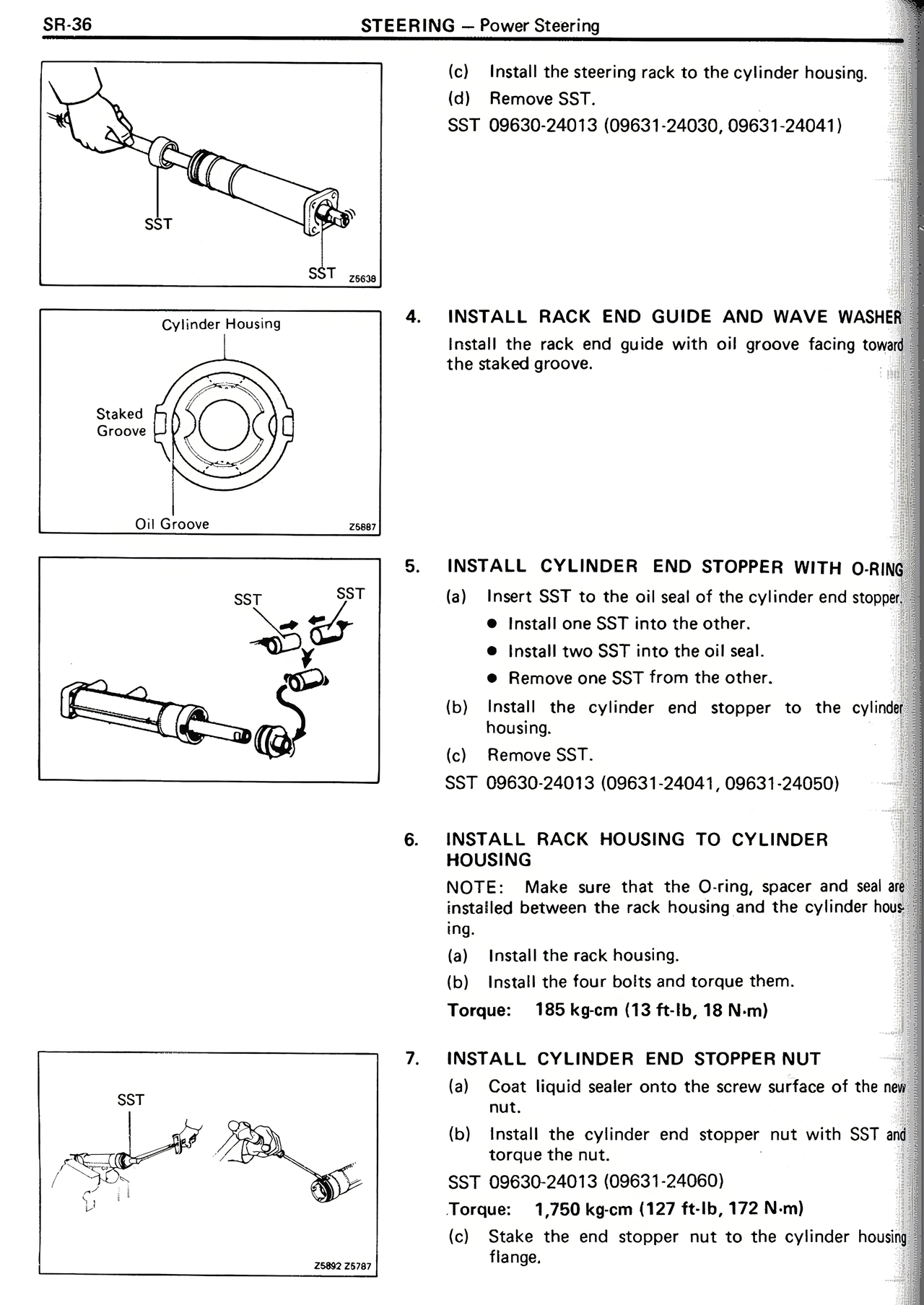

SR-36 STEERING — Power Steering (c) Install the steering rack to the cylinder housing. (d) Remove SST. SST 09630-24013 (09631-24030, 09631-24041) 4. INSTALL RACK END GUIDE AND WAVE WASHER Install the rack end guide with oil groove facing toward the staked groove. Cylinder Housing Staked Greove Oil Groove 5. INSTALL CYLINDER END STOPPER WITH O-RING (a) Insert SST to the oil seal of the cylinder end stopper. • Install one SST into the other. • Install two SST into the oil seal. • Remove one SST from the other. (b) Install the cylinder end stopper to the cylinder housing. (c) Remove SST. SST 09630-24013 (09631-24041, 09631-24050) 6. INSTALL RACK HOUSING TO CYLINDER HOUSING NOTE: Make sure that the O-ring, spacer and seal are installed between the rack housing and the cylinder housing. (a) Install the rack housing. (b) Install the four bolts and torque them. Torque: 185 kg-cm (13 ft-lb, 18 N-m) 7. INSTALL CYLINDER END STOPPER NUT (a) Coat liquid sealer onto the screw surface of the new nut. (b) Install the cylinder end stopper nut with SST and torque the nut. SST 09630-24013 (09631-24060) Torque: 1,750 kg-cm (127 ft-lb, 172 N-m) (c) Stake the end stopper nut to the cylinder housing flange.
