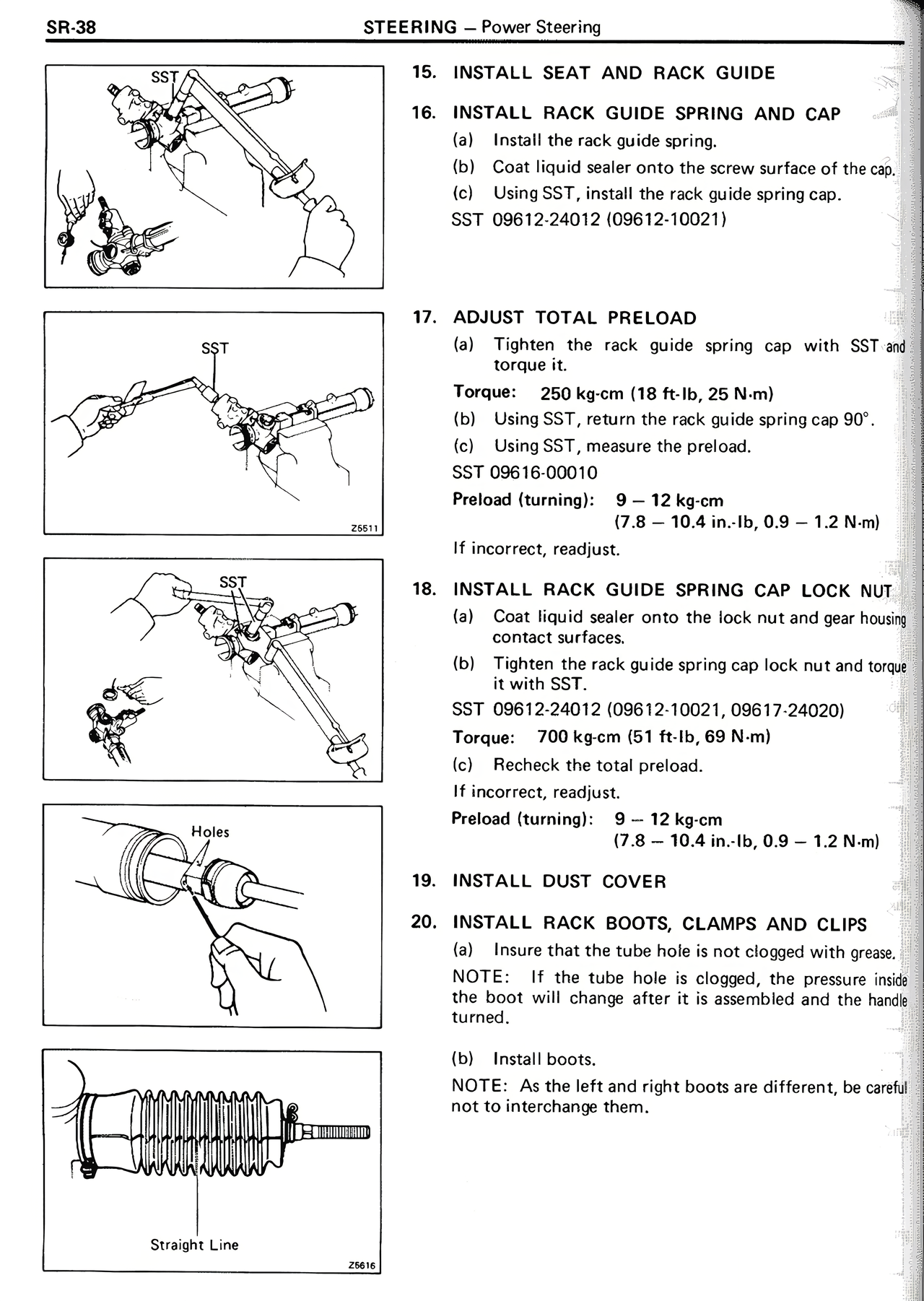

SR-38 STEERING — Power Steering 15. INSTALL SEAT AND RACK GUIDE 16. INSTALL RACK GUIDE SPRING AND CAP (a) Install the rack guide spring. (b) Coat liquid sealer onto the screw surface of the cap. (c) Using SST, install the rack guide spring cap. SST 09612-24012 (09612-10021) 17. ADJUST TOTAL PRELOAD (a) Tighten the rack guide spring cap with SST and torque it. Torque: 250 kg-cm (18 ft-lb, 25 N-m) (b) Using SST, return the rack guide spring cap 90°. (c) Using SST, measure the preload. SST 09616-00010 Preload (turning): 9 — 12 kg-cm (7.8 — 10.4 in.-lb, 0.9 — 1.2 N-m) If incorrect, readjust. 18. INSTALL RACK GUIDE SPRING CAP LOCK NUT (a) Coat liquid sealer onto the lock nut and gear housing contact surfaces. (b) Tighten the rack guide spring cap lock nut and torque it with SST. SST 09612-24012 (09612-10021, 09617-24020) Torque: 700 kg-cm (51 ft-lb, 69 N-m) (c) Recheck the total preload. If incorrect, readjust. Preload (turning): 9 — 12 kg-cm (7.8 — 10.4 in.-lb, 0.9 — 1.2 N-m) 19. INSTALL DUST COVER 20. INSTALL RACK BOOTS, CLAMPS AND CLIPS (a) Insure that the tube hole is not clogged with grease. NOTE: If the tube hole is clogged, the pressure inside the boot will change after it is assembled and the handle turned. (b) Install boots. NOTE: As the left and right boots are different, be careful not to interchange them.
