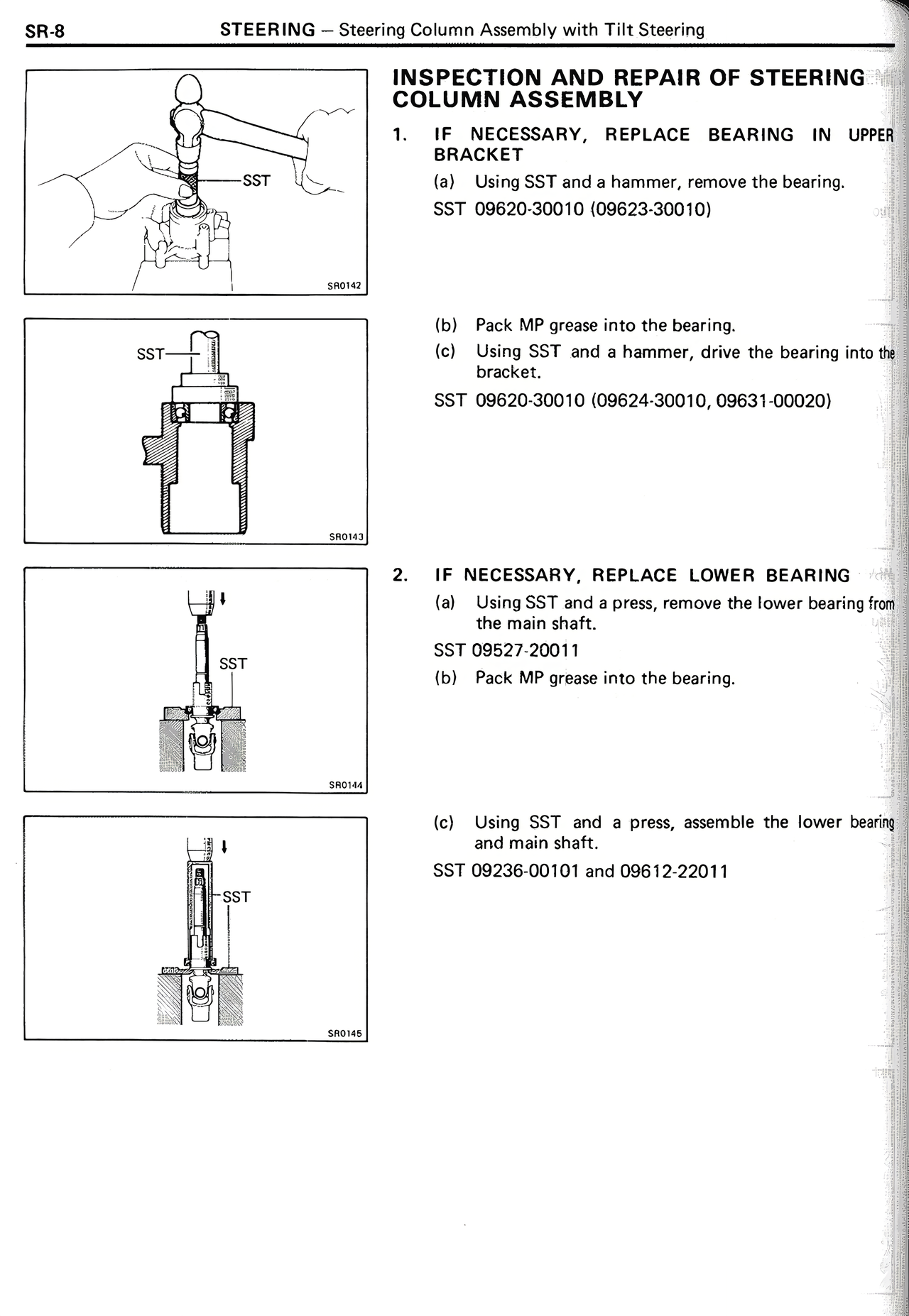

SR-8
STEERING — Steering Column Assembly with Tilt Steering
INSPECTION AND REPAIR OF STEERING COLUMN ASSEMBLY
1. IF NECESSARY, REPLACE BEARING IN UPPER BRACKET
(a) Using SST and a hammer, remove the bearing.
SST 09620-30010 (09623-30010)
(b) Pack MP grease into the bearing.
(c) Using SST and a hammer, drive the bearing into the bracket.
SST 09620-30010 (09624-30010, 09631-00020)
2. IF NECESSARY, REPLACE LOWER BEARING
(a) Using SST and a press, remove the lower bearing from the main shaft.
SST 09527-20011
(b) Pack MP grease into the bearing.
(c) Using SST and a press, assemble the lower bearing and main shaft.
SST 09236-00101 and 09612-22011
