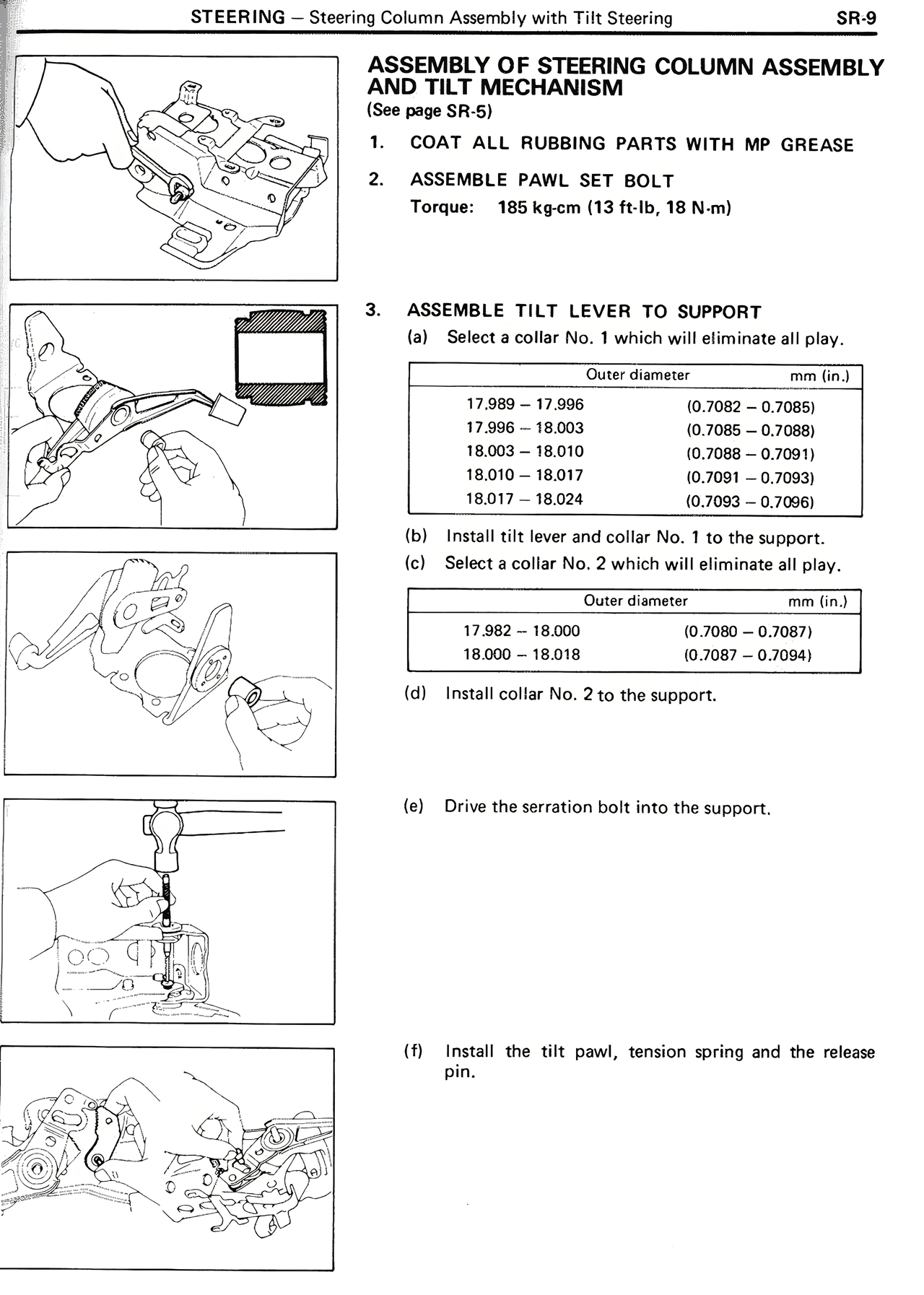

ASSEMBLY OF STEERING COLUMN ASSEMBLY
AND TILT MECHANISM
(See page SR-5)
1. COAT ALL RUBBING PARTS WITH MP GREASE
2. ASSEMBLE PAWL SET BOLT
Torque: 185 kg·cm (13 ft·lb, 18 N·m)
3. ASSEMBLE TILT LEVER TO SUPPORT
(a) Select a collar No. 1 which will eliminate all play.
Outer diameter mm (in.)
17.989 — 17.996 (0.7082 — 0.7085)
17.996 — 18.003 (0.7085 — 0.7088)
18.003 — 18.010 (0.7088 — 0.7091)
18.010 — 18.017 (0.7091 — 0.7093)
18.017 — 18.024 (0.7093 — 0.7096)
(b) Install tilt lever and collar No. 1 to the support.
(c) Select a collar No. 2 which will eliminate all play.
Outer diameter mm (in.)
17.982 — 18.000 (0.7080 — 0.7087)
18.000 — 18.018 (0.7087 — 0.7094)
(d) Install collar No. 2 to the support.
(e) Drive the serration bolt into the support.
(f) Install the tilt pawl, tension spring and the release
pin.
