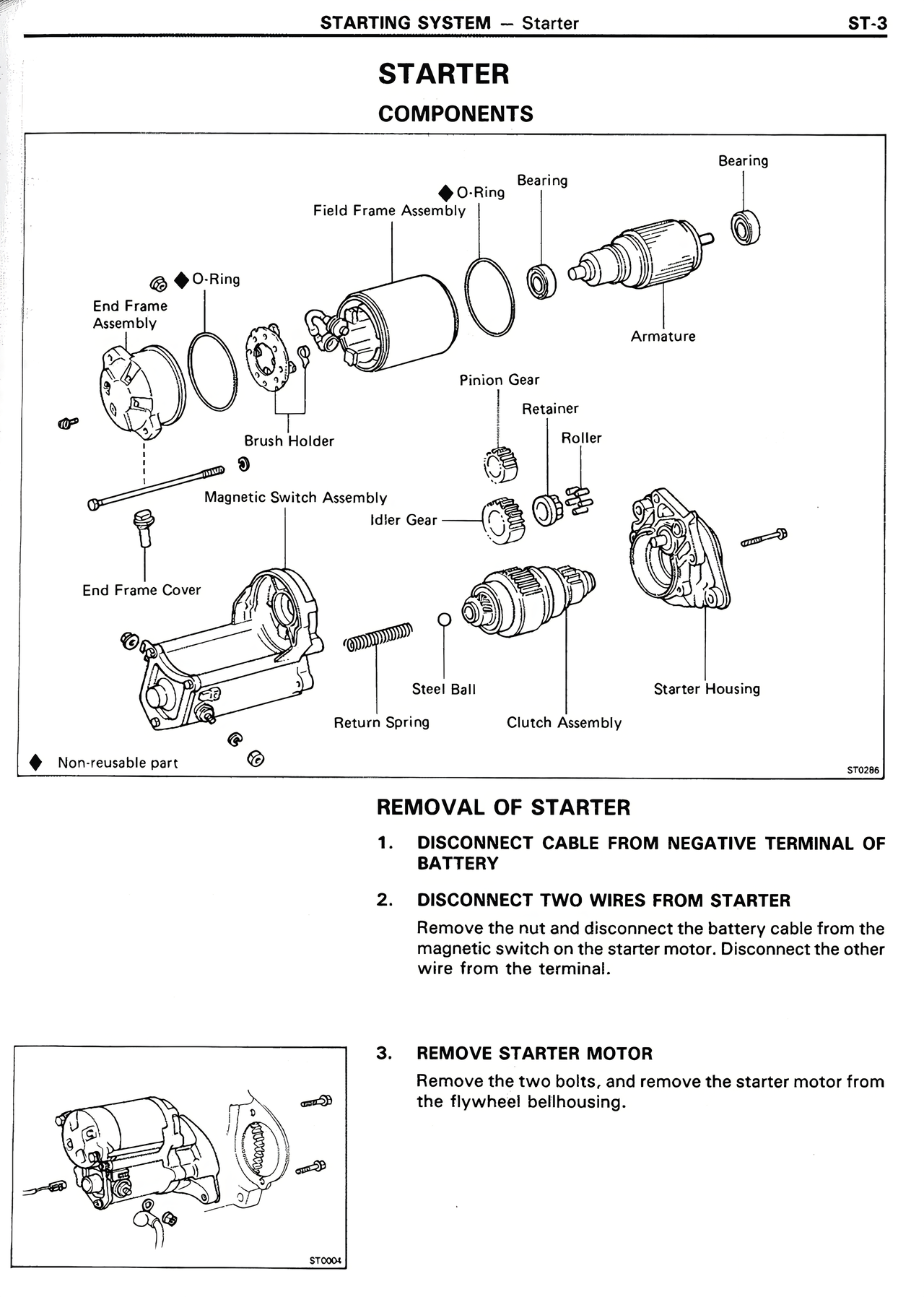

STARTER
COMPONENTS
Bearing
Bearing
O-Ring
Field Frame Assembly
O-Ring
End Frame
Assembly
Armature
Pinion Gear
Retainer
Brush Holder
Roller
Magnetic Switch Assembly
Idler Gear
End Frame Cover
Steel Ball
Starter Housing
Return Spring
Clutch Assembly
◆ Non-reusable part
REMOVAL OF STARTER
1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF
BATTERY
2. DISCONNECT TWO WIRES FROM STARTER
Remove the nut and disconnect the battery cable from the
magnetic switch on the starter motor. Disconnect the other
wire from the terminal.
3. REMOVE STARTER MOTOR
Remove the two bolts, and remove the starter motor from
the flywheel bellhousing.
