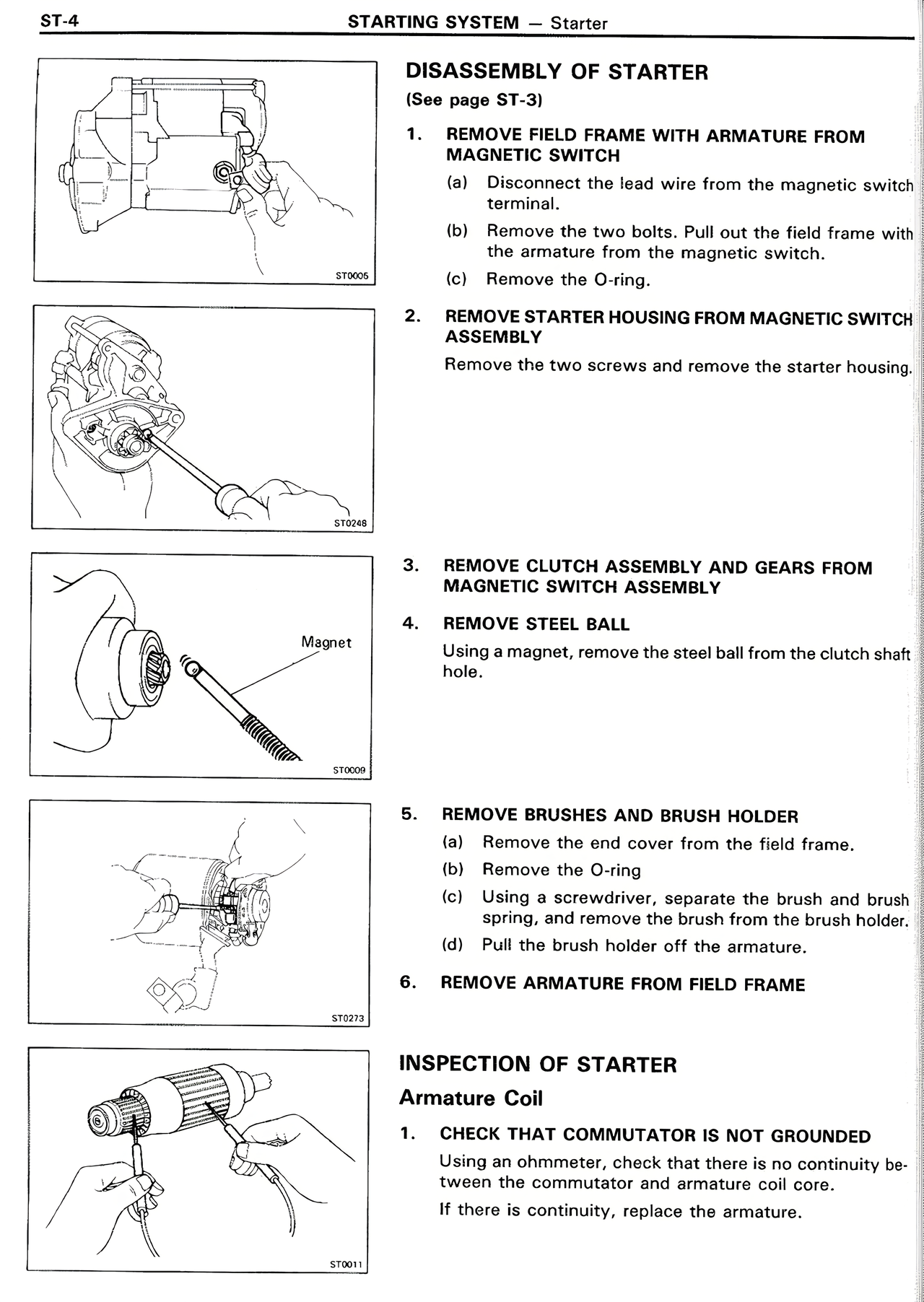

DISASSEMBLY OF STARTER (See page ST-3) 1. REMOVE FIELD FRAME WITH ARMATURE FROM MAGNETIC SWITCH (a) Disconnect the lead wire from the magnetic switch terminal. (b) Remove the two bolts. Pull out the field frame with the armature from the magnetic switch. (c) Remove the O-ring. 2. REMOVE STARTER HOUSING FROM MAGNETIC SWITCH ASSEMBLY Remove the two screws and remove the starter housing. 3. REMOVE CLUTCH ASSEMBLY AND GEARS FROM MAGNETIC SWITCH ASSEMBLY 4. REMOVE STEEL BALL Using a magnet, remove the steel ball from the clutch shaft hole. 5. REMOVE BRUSHES AND BRUSH HOLDER (a) Remove the end cover from the field frame. (b) Remove the O-ring (c) Using a screwdriver, separate the brush and brush spring, and remove the brush from the brush holder. (d) Pull the brush holder off the armature. 6. REMOVE ARMATURE FROM FIELD FRAME INSPECTION OF STARTER Armature Coil 1. CHECK THAT COMMUTATOR IS NOT GROUNDED Using an ohmmeter, check that there is no continuity between the commutator and armature coil core. If there is continuity, replace the armature.
