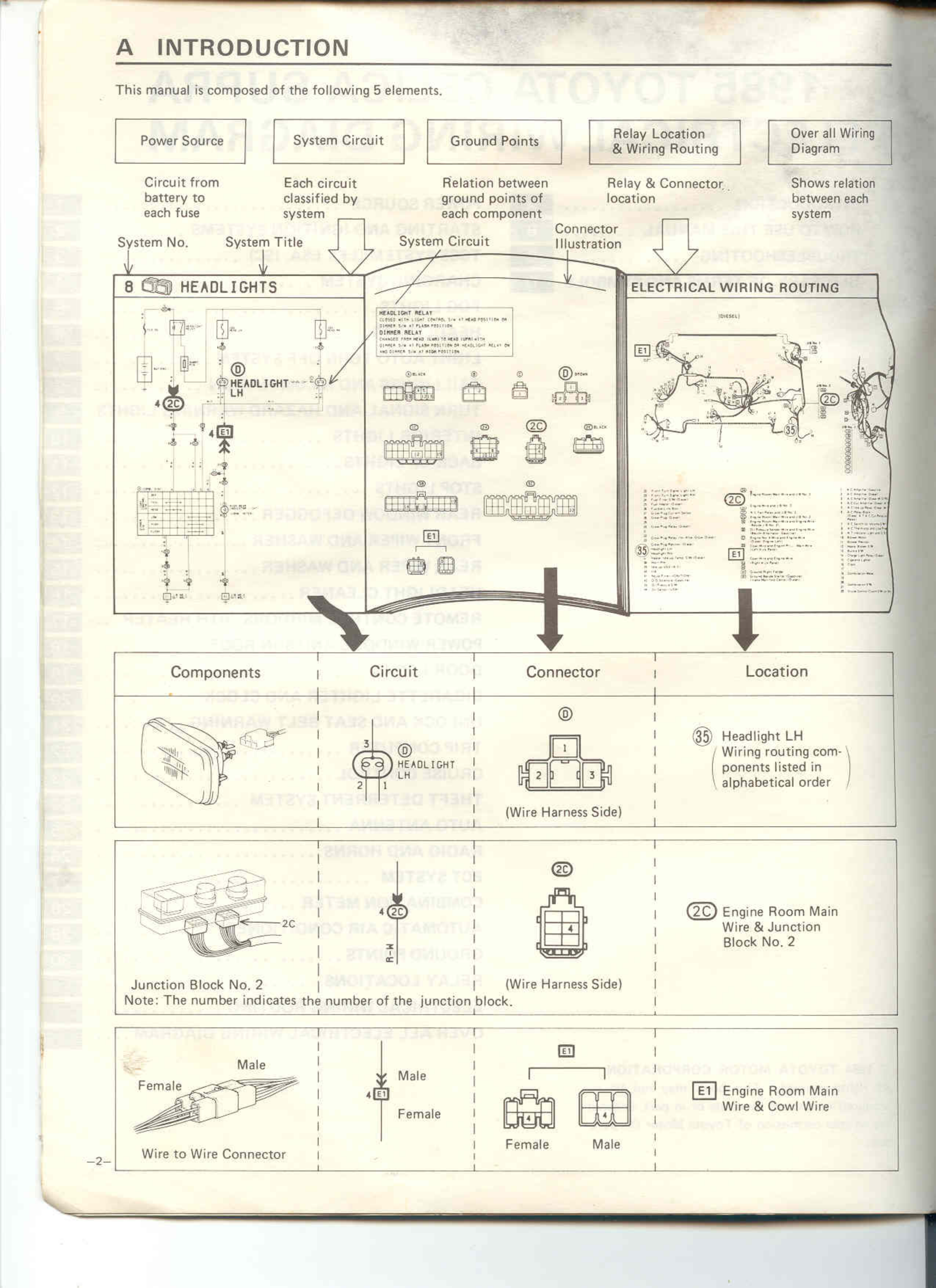

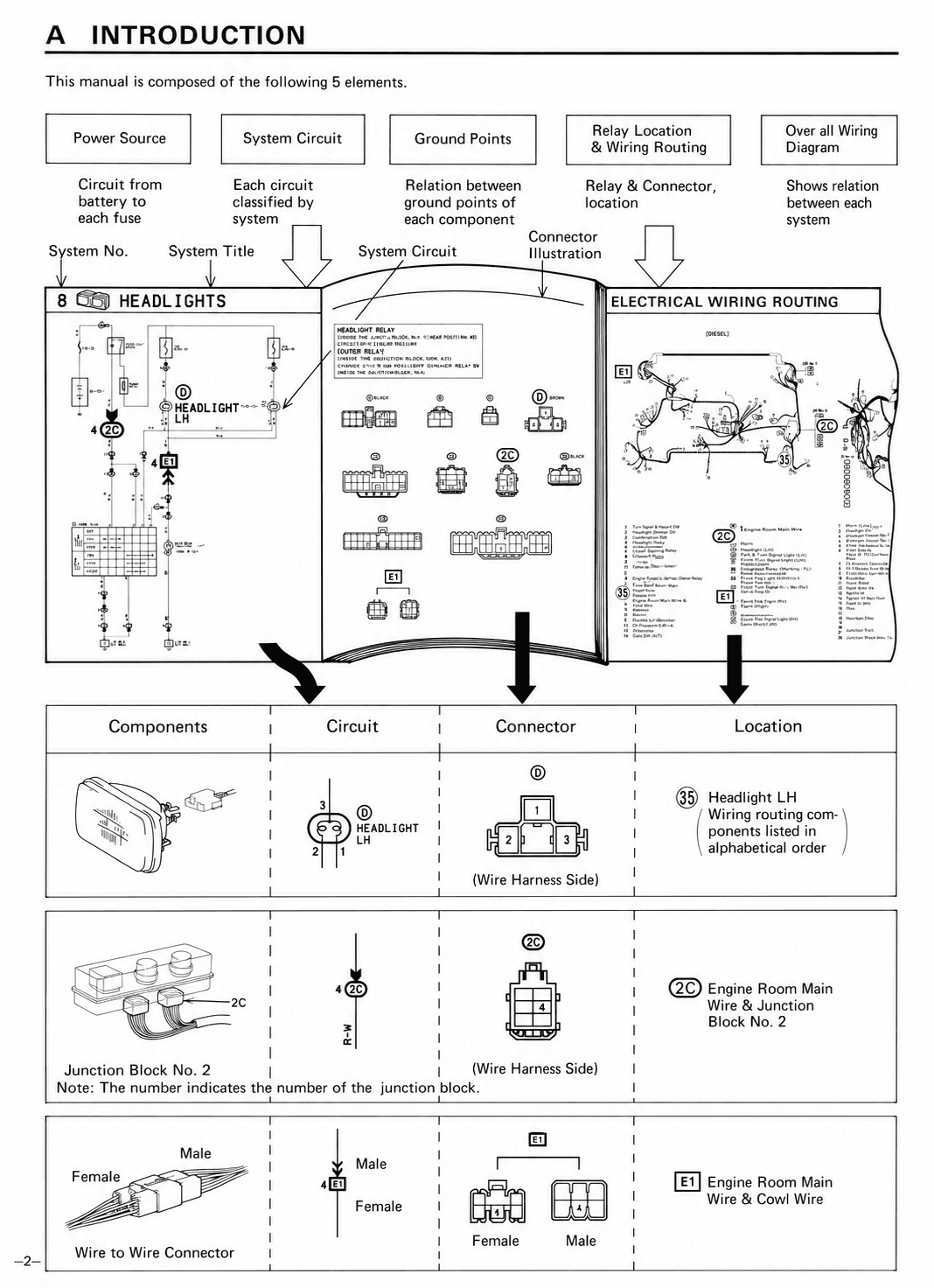

A INTRODUCTION This manual is composed of the following 5 elements. Power Source Circuit from battery to each fuse System Circuit Each circuit classified by system Ground Points Relation between ground points of each component Relay Location & Wiring Routing Relay & Connector location Over all Wiring Diagram Shows relation between each system System No. System Title System Circuit Connector Illustration 8 HEADLIGHTS HEADLIGHT LH 2C ELECTRICAL WIRING ROUTING E1 2C 2C 2C E1 Components | Circuit | Connector | Location HEADLIGHT LH (Wire Harness Side) 35 Headlight LH Wiring routing components listed in alphabetical order Junction Block No. 2 Note: The number indicates the number of the junction block. 2C (Wire Harness Side) 2C Engine Room Main Wire & Junction Block No. 2 Wire to Wire Connector Female Male Male Female E1 Female Male E1 Engine Room Main Wire & Cowl Wire -2-
