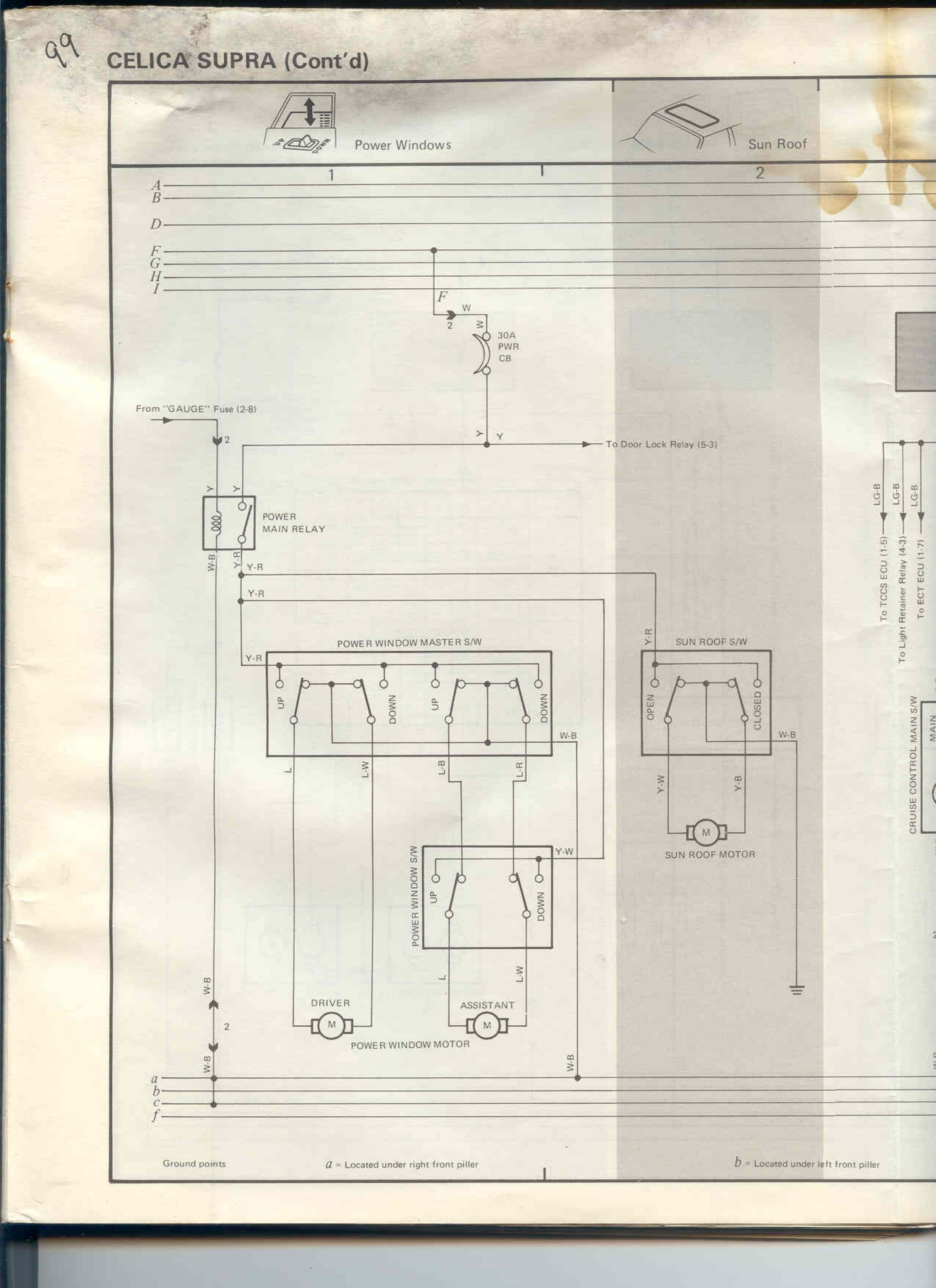

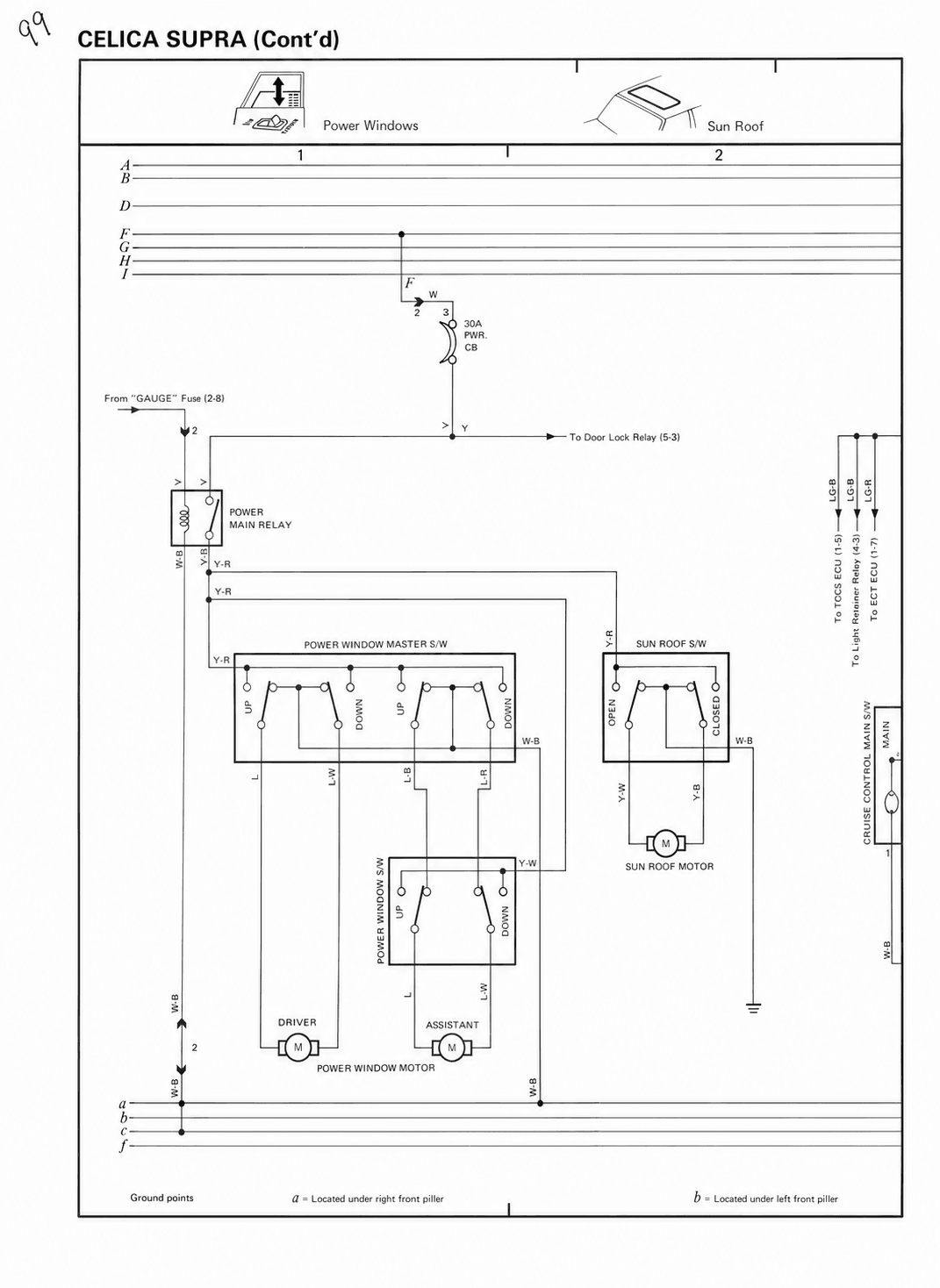

OWD/Overall Wiring Diagram — Celica Supra (Cont'd), page 10

99
CELICA SUPRA (Cont'd)

Power Windows
Sun Roof

1
2

A
B
C
D
E
F
G
H
I
J

F
W
2
B
IG
PWR
CB

From "GAUGE" Fuse (2-8)

2
Y
To Door Lock Relay (5-3)

X

POWER
MAIN RELAY

IG1
V-R

V-R
V-R

POWER WINDOW MASTER S/W
SUN ROOF S/W

V-B

DOWN
UP
DOWN
UP
OPEN
CLOSE

W-B
W-B

L
W
B
L-R

V-W
Y-B

Y-W

POWER WINDOW S/W

DOWN
UP
DOWN
UP

M
SUN ROOF MOTOR

L
L-R

W-B
W-B

2

DRIVER
ASSISTANT
M
M
POWER WINDOW MOTOR

a
b
c
j

Ground points
a = Located under right front pillar
b = Located under left front pillar

To IGT ECU (A-7)
To Layer Protector Relay (A-1)
To VCC ECU (A-5)
L/B
L/G-B
L/G-B

SPEED CONTROL MAIN S/W
To
