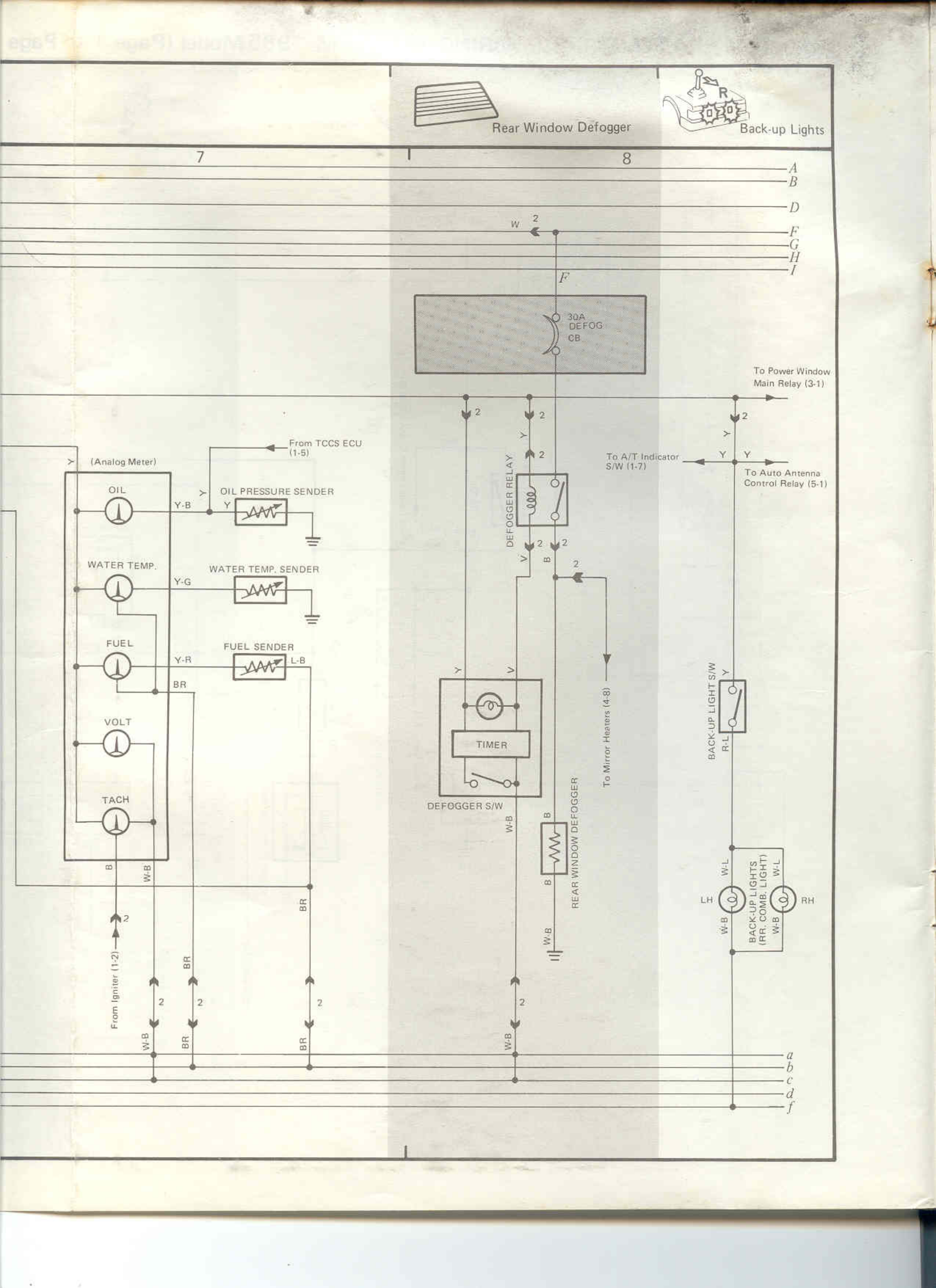

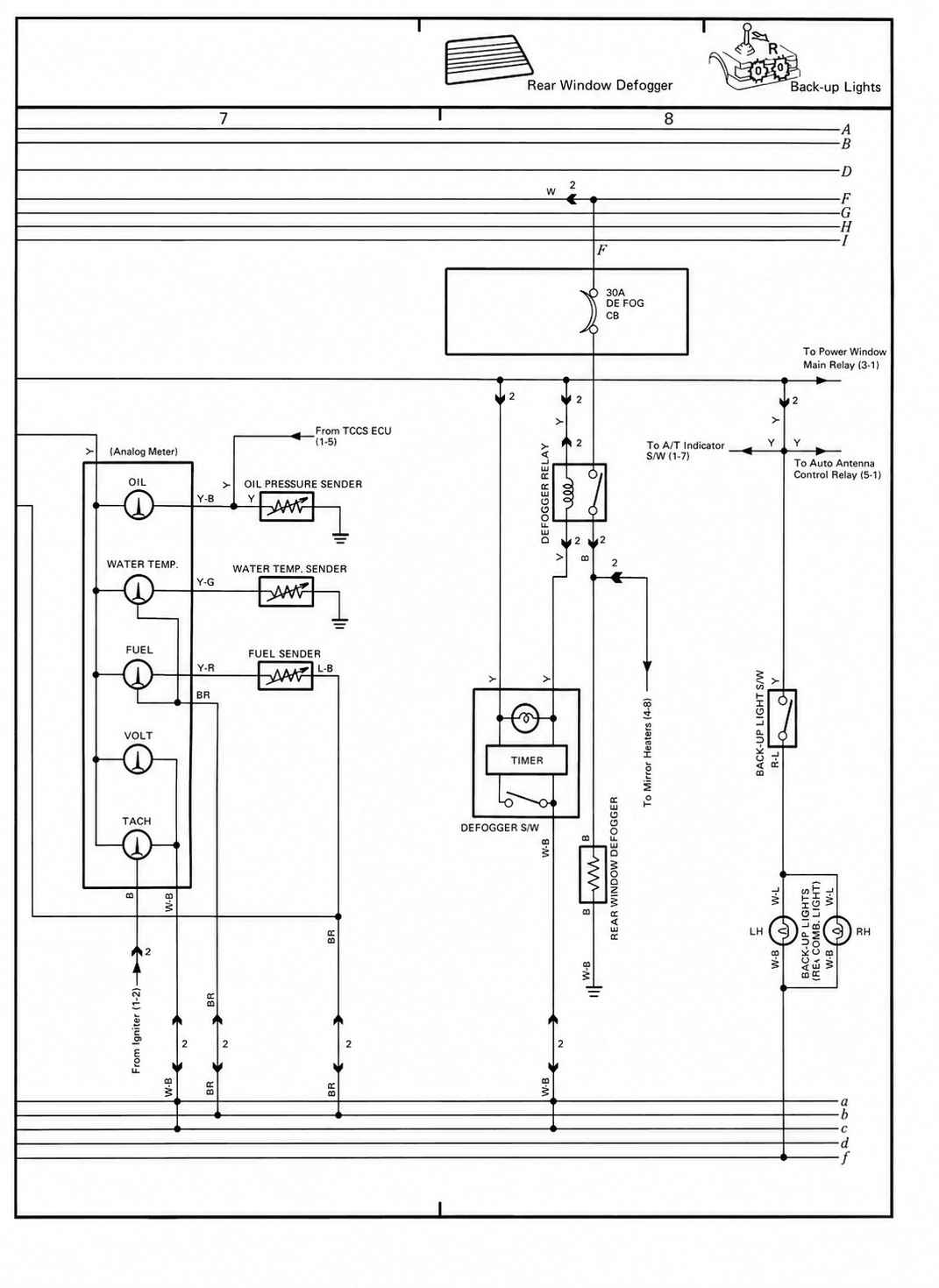

OWD/Overall Wiring Diagram — Rear Window Defogger and Back-up Lights Wiring Diagram, page 9

Rear Window Defogger
Back-up Lights
7
8
A
B
D
W
2
E
G
H
J
F
30A
DEFOG
CB
To Power Window
Main Relay (3-1)
2
2
2
From TCCS ECU
(1-5)
(Analog Meter)
Y
To A/T Indicator
Y
Y
S/W (1-7)
OIL
OIL PRESSURE SENDER
Y-B
Y
To Auto Antenna
Control Relay (5-1)
DEFOGGER RELAY
WATER TEMP.
WATER TEMP. SENDER
Y-G
2
2
B
2
FUEL
FUEL SENDER
Y-R
L-B
BR
W
BACK-UP LIGHT S/W
BG
VOLT
TIMER
TACH
BR
DEFOGGER S/W
REAR WINDOW DEFOGGER
BR
W-B
W-B
LH
BACK-UP LIGHT
BACK-UP LIGHT
RH
RH
W-B
W-R
LH
W-B
W-B
2
From Ignition (3-2)
2
2
2
W-B
BR
BR
BR
W-B
a
b
c
d
