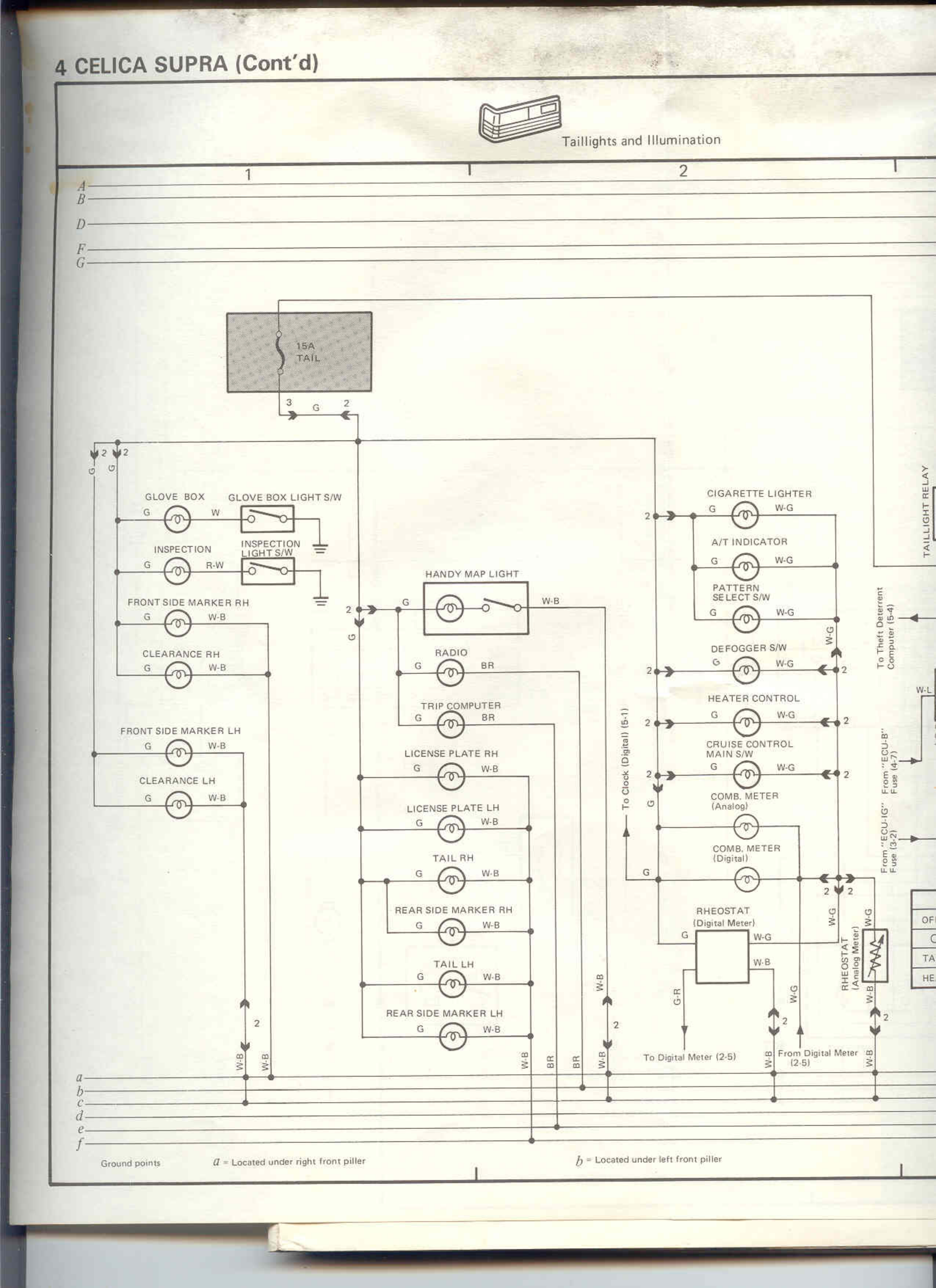

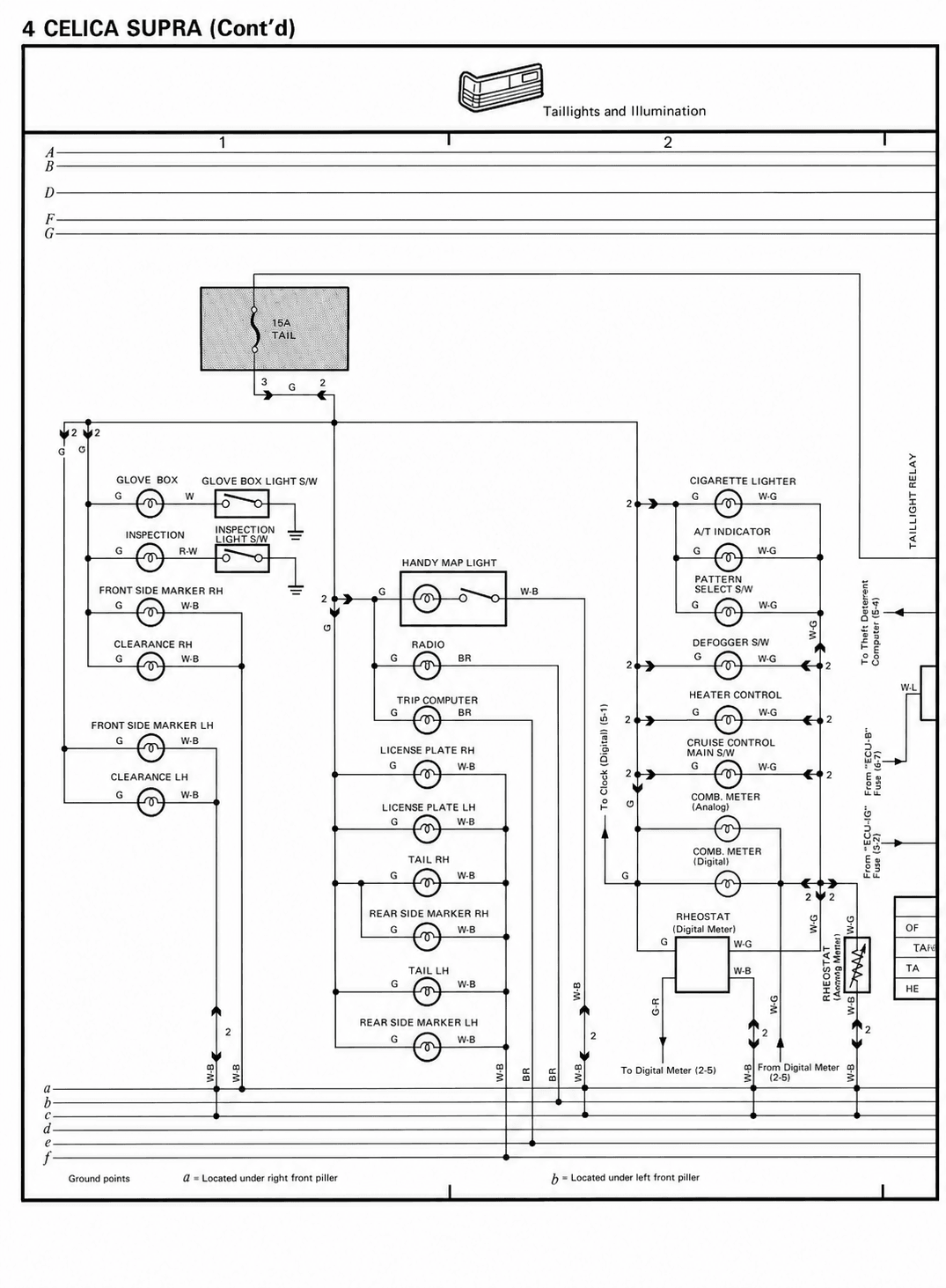

OWD/Overall Wiring Diagram — Taillights and Illumination, page 15

4 CELICA SUPRA (Cont'd)

Taillights and Illumination

1                                    2

A
B
D
E
F

15A
TAIL

3    G    2

2  2
G

GLOVE BOX            GLOVE BOX LIGHT S/W                                      CIGARETTE LIGHTER
G                      W           G                                           2        G                    W-G

INSPECTION           INSPECTION                                                          A/T INDICATOR
                     LIGHT S/W
G                    R-W                                                        G                    W-G

FRONT SIDE MARKER RH                           HANDY MAP LIGHT                           HEATER FAN
G                    W-B           2           G                    W-B                   SELECT S/W
                                    G                                                     G                    W-G
CLEARANCE RH                                    RADIO
G                    W-B                        G           BR                           DEFOGGER S/W
                                                                                          G                    W-G
                                                TRIP COMPUTER
                                                G                                         HEATER CONTROL
                                                                                          G                    W-G
FRONT SIDE MARKER LH                           LICENSE PLATE RH
G                    W-B                        G           W-B                          CRUISE CONTROL
                                                                                          MAIN S/W
CLEARANCE LH                                   LICENSE PLATE LH                          G                    W-G
G                    W-B                        G           W-B
                                                                                          COMB. METER
                                                                                          (Analog)
                                                TAIL RH                                   G
                                                G           W-B
                                                                                          COMB. METER
                                                REAR SIDE MARKER RH                       (Digital)
                                                G           W-B                           G

                                                                                          RHEOSTAT
                                                                                          (Digital Meter)
                                                TAIL LH                                   G                    W-G
                                                G           W-B
                                                                                          W-B
                                                REAR SIDE MARKER LH
2                                               G           W-B                           2

W-B    W-B                                     W-B    BR     W-B    W-B    GR    W-G
                                                                                          To Digital Meter (2-6)    Front Digital Meter
a                                                                                                                   (2-6)
b
c
d
e
f

Ground points        a = Located under right front pillar                    b = Located under left front pillar
