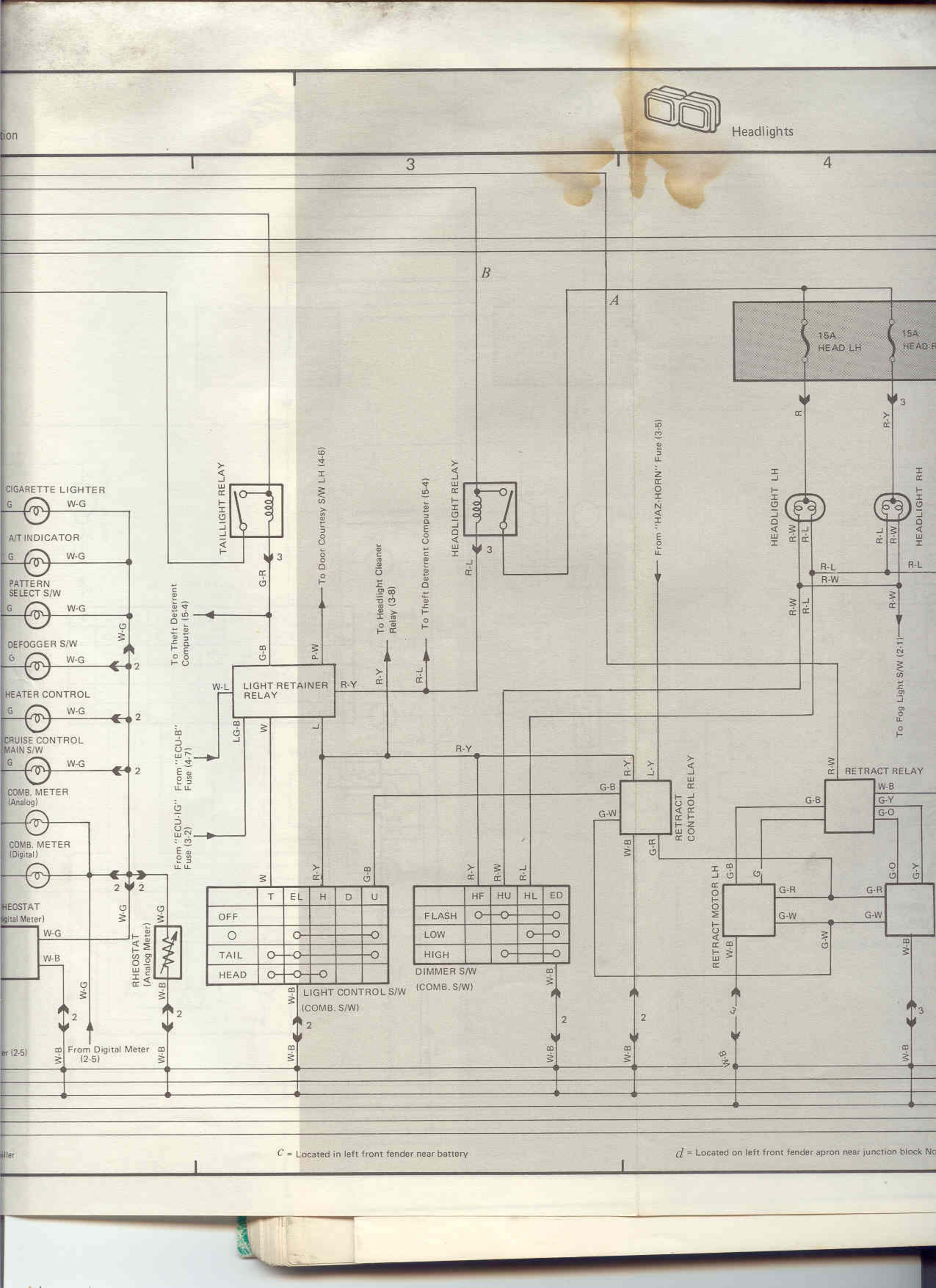

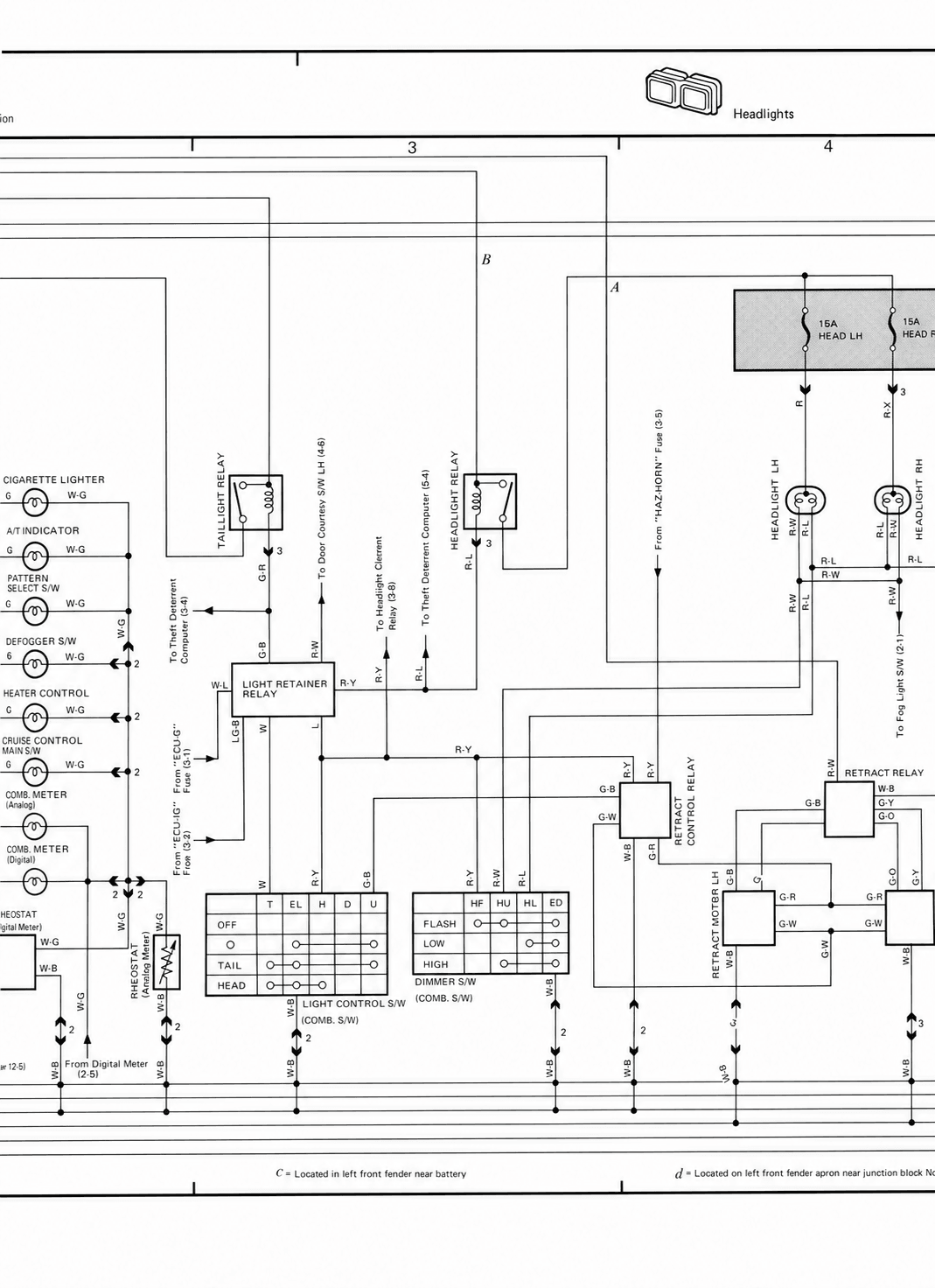

Headlights 3 4 B A 15A HEAD LH 15A HEAD RH From *HM2 (HORN) Fuse (15A) HEADLIGHT LH HEADLIGHT RH R-L R-W R-L R-W R-W R-W To Pin 8(HiB-IN) Fuse (15A) R-B R-B RETRACT RELAY W-B To Pin 6(HiB-IN) 2 Fuse G-B G-B RETRACT CONTROL RELAY W-B G-O RETRACT MOTOR LH RETRACT MOTOR RH G-O G-W G-W G-R G-R G-Y G-Y W-B W-B CIGARETTE LIGHTER W-G TAIL LIGHT RELAY AT INDICATOR W-G PATTERN SELECT S/W W-G To Tail Daytime Control (24A) LGR DEFOGGER S/W W-G To Door Courtesy 2(W LH 4BR) To 1TH-2(TH) Component (S.M.) R-L R-L R-Y R-W HEATER CONTROL LIGHT RETAINER RELAY W-L R-Y W-G From *GL(Glove Box Light) From *GL(Glove Box Light) LGR W CRUISE CONTROL MAIN S/W 2 R-Y From *GL(Glove Box Light) 2 COMB. METER (Analog) From RR(GL) GND 2 W R-Y R-W R-L COMB. METER (Digital) 2 T EL H D U HP HU HL ED RHEOSTAT (w/ Meter) OFF FLASH W-G LOW W-B TAIL HIGH HEAD DIMMER S/W (COMB. S/W) *KG RHEOSTAT (w/o Meter) LH *B LIGHT CONTROL S/W (COMB. S/W) 2 2 2 2 2 From Digital Meter (2-S) W-B W-B W-B W-B W-B C = Located in left front fender near battery d = Located on left front fender apron near junction block No
