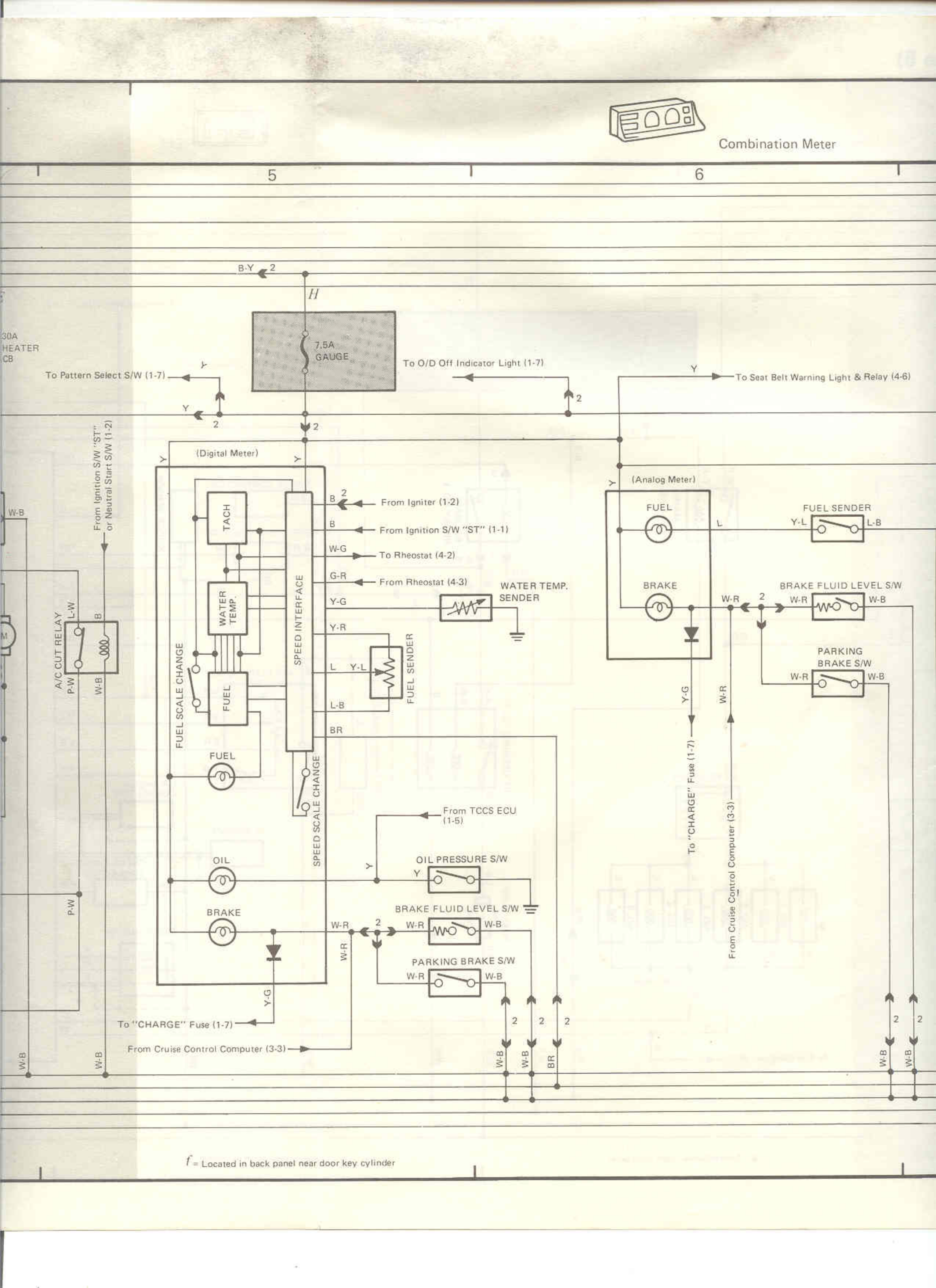

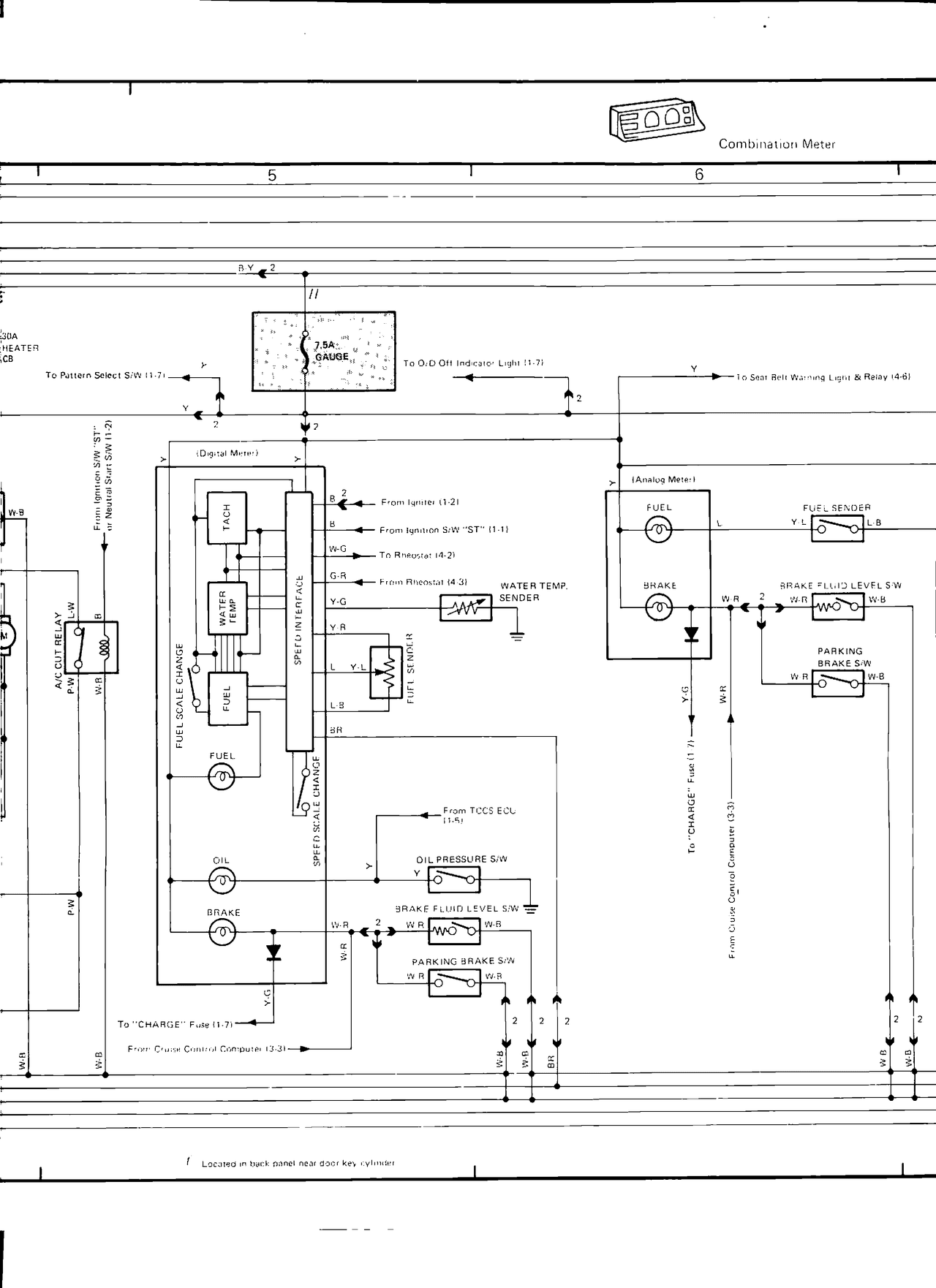

Combination Meter 5 6 B-Y 2 H 7.5A GAUGE HEATER CB To Pattern Select S/W (1-7) To D/D Off Indicator Light (1-7) Y To Seat Belt Warning Light & Relay (4-6) 2 Y 2 2 From Ignition S/W 'ST' (1-7) Inhibitor Sw/Neutral Start S/W (1-7) (Digital Meter) (Analog Meter) Y 2 TACH 2 From Igniter (1-2) FUEL FUEL SENDER L Y-L L-B From Ignition S/W "ST" (1-1) WATER TEMP. W-G To Rheostat (4-2) G-B From Rheostat (4-3) WATER & TEMP. BRAKE BRAKE FLUID LEVEL S/W SENDER Y-G W-R 2 W-R W-B SPEED INTERFACE Y-R FUEL SCALE CHANGER PARKING BRAKE S/W FUEL SENDER FUEL Y-L W-R W-B L L-B Y-G W-R BR To "CHARGE" Fuse (1-7) Y-G FUEL SPEED SCALE CHANGE From TCCS ECU (1-5) OIL PRESSURE S/W OIL Y BRAKE FLUID LEVEL S/W BRAKE W-R W-R W-B W-R PARKING BRAKE S/W W-R W-B Y-G 2 2 2 2 2 To "CHARGE" Fuse (1-7) From Cruise Control Computer (3-3) W-B W-B BR B-B G-B f = Located in back panel near door key cylinder
