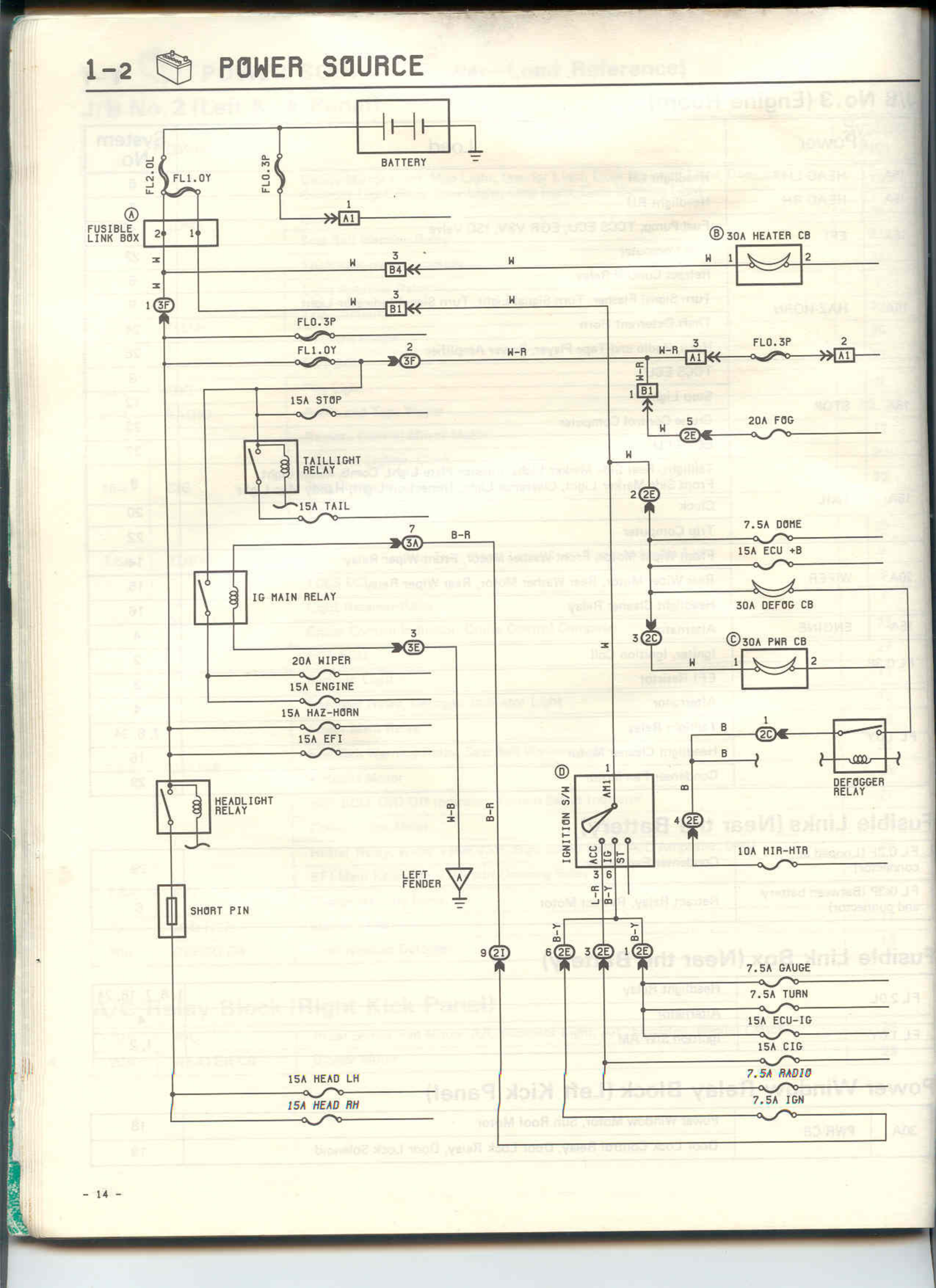

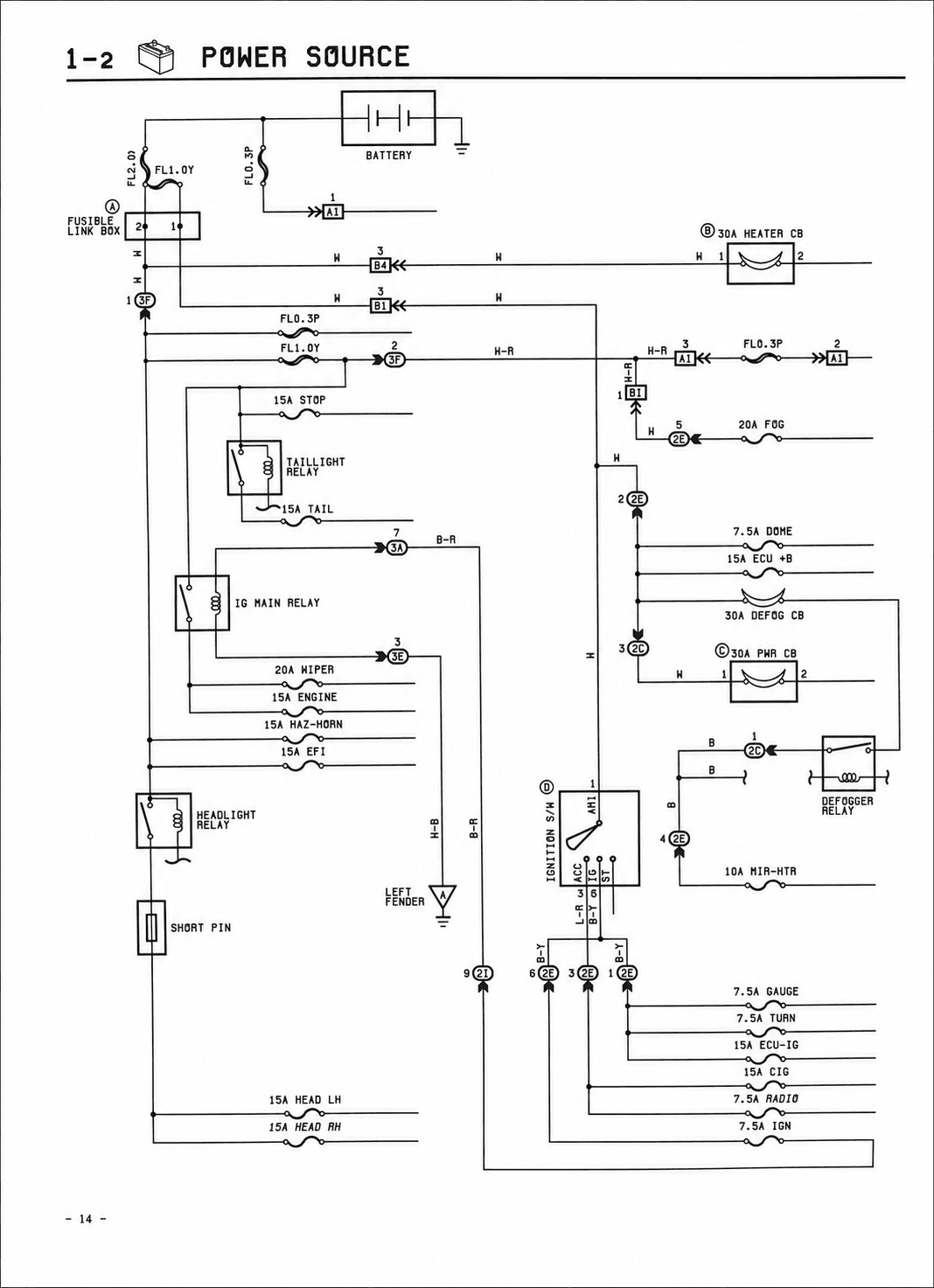

S1/Power Source, page 3

1-2 POWER SOURCE

FL2-OL
FL1-OY
FL0-SP

FUSIBLE LINK BOX
A

BATTERY

1
W
W
5
BL
W
FL0.3P
W
FL1.0Y
2
SP
W-R

15A STOP

TAILLIGHT RELAY

15A TAIL

7
3A
B-R

IG MAIN RELAY

3
SF
20A WIPER

15A ENGINE

15A HAZ-HORN

15A EFI

HEADLIGHT RELAY

W-B
B-R

LEFT FENDER

SHORT PIN

IGNITION S/W
ACC
IG2
IG1
ST
1 2
3 6
Lock 5 4
B-R

9 21
8 20
3 23
1 22

15A HEAD LH

15A HEAD RH

B 30A HEATER CB
W
1
2

W
3
FLD.3P
11
W-R
1
B1
W
20A FOG
25
W

2 24

7.5A DOME

15A ECU +B

30A DEFOG CB

3 26
C 30A PWR CB
W
1
2

B
1
26
B

DEFOGGER RELAY

4 25

10A HTR-HTR

7.5A GAUGE

7.5A TURN

15A ECU-IG

15A CIG

7.5A RADIO

7.5A IGN

- 14 -
