17

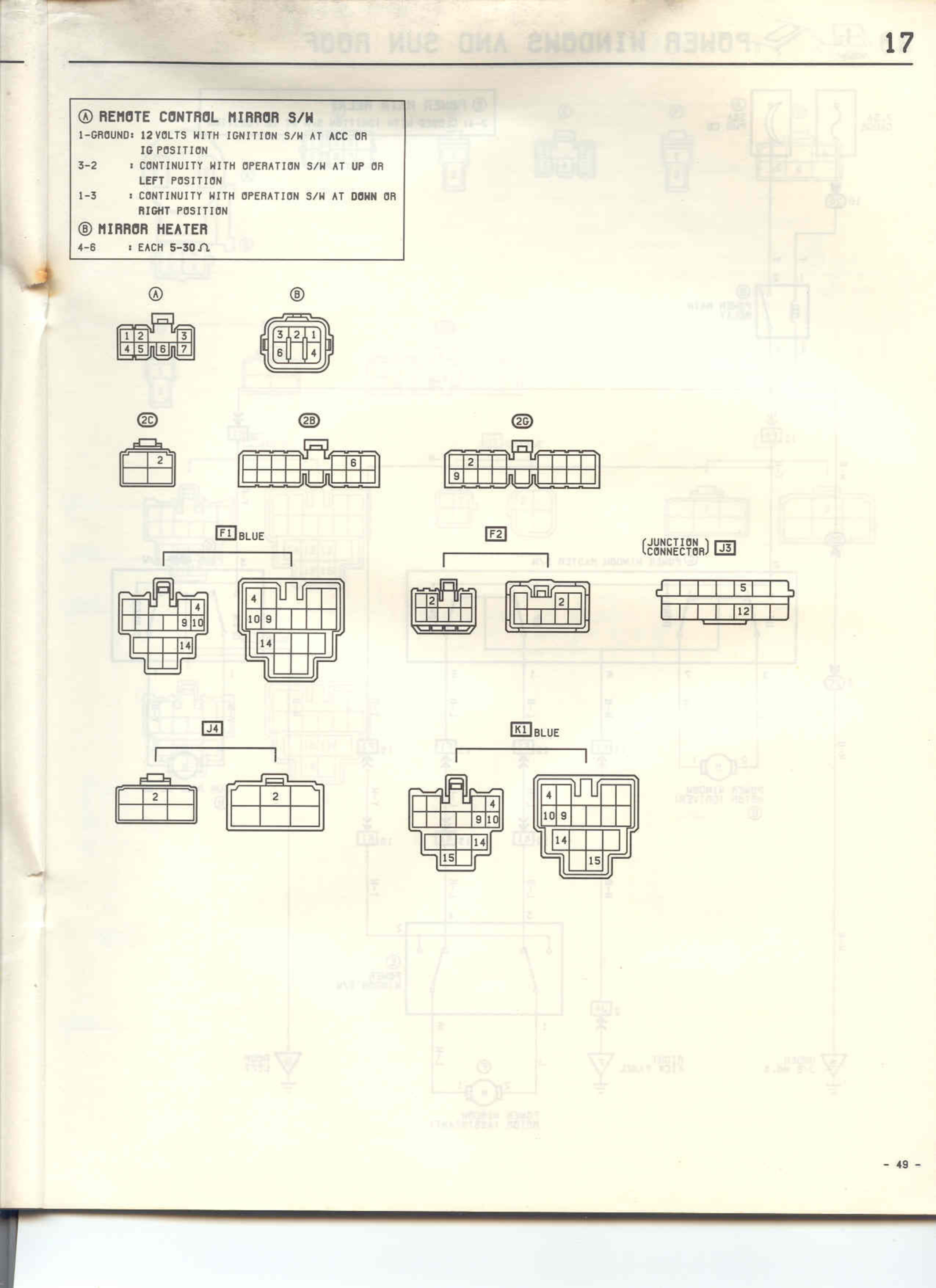

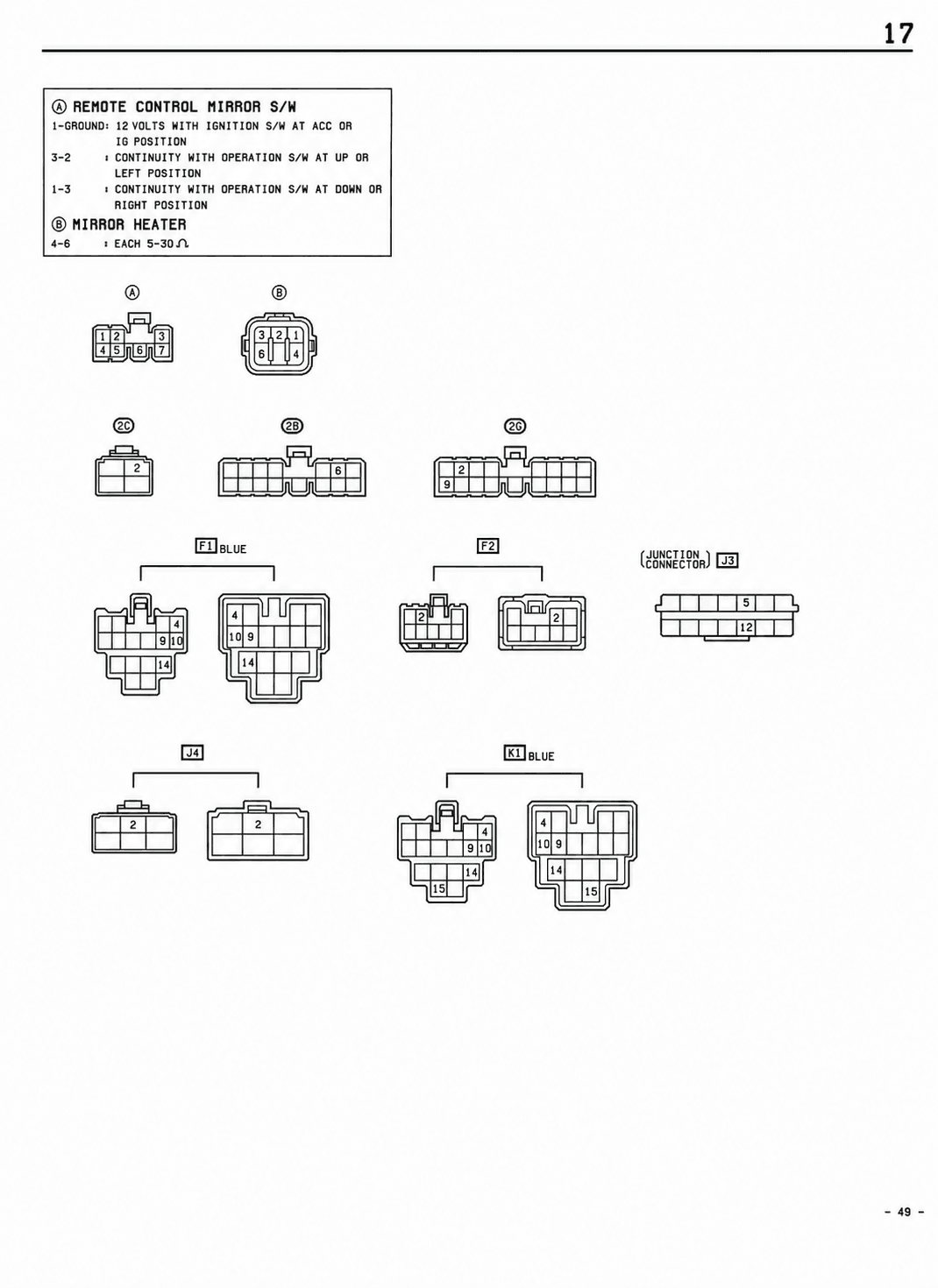

④ REMOTE CONTROL MIRROR S/M
1-GROUND: 12 VOLTS WITH IGNITION S/M AT ACC OR
IG POSITION
3-2 : CONTINUITY WITH OPERATION S/M AT UP OR
LEFT POSITION
1-5 : CONTINUITY WITH OPERATION S/M AT DOWN OR
RIGHT POSITION
⑥ MIRROR HEATER
4-6 : EACH 5~50Ω
A B
[Connector diagrams showing pin layouts numbered 1-7]
2B 2B 2C
[Connector diagrams showing pin layouts with numbers 2, 6, 9]
F1 BLUE F2 JUNCTION CONNECTOR J3
[Multiple connector diagrams showing pin layouts numbered 1-15]
J4 K1 BLUE
[Final row of connector diagrams showing pin layouts numbered 1-15]
- 49 -
